Drill Bushings: A Practical Guide to Precision Drilling
A practical guide to drill bushings, precision sleeves that guide bits in jigs for repeatable holes. Learn materials, types, sizing, installation, and maintenance for DIY and professional use.

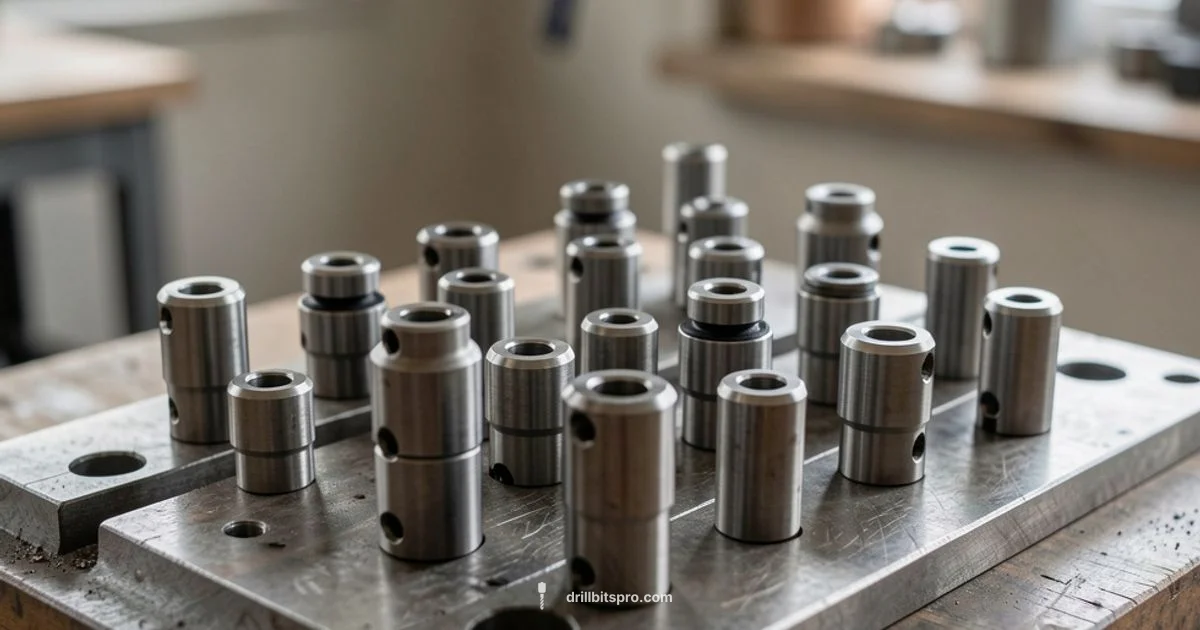

Drill bushings are precision sleeves used to guide drill bits in jigs and fixtures, ensuring alignment and repeatability.
What are drill bushings and how they work
Drill bushings are precision sleeves used to guide drill bits in jigs and fixtures, creating a consistent axial path and limiting lateral drift. They sit in a hardened housing or jig plate and align the bit with the predrilled pilot hole. According to Drill Bits Pro, drill bushings achieve repeatable hole locations by absorbing minor misalignments and binding the bit to a fixed axis. In practical terms, they turn a manual drilling task into a repeatable operation, which is especially valuable in production runs, cabinetry, or metalworking where accuracy matters. Bushings are sized to fit a standard drill shank, and their inside diameter determines the hole size corresponding to the chosen drill bit. The outside diameter and length influence how much the bushing protrudes from the jig and how much contact is available for wear surfaces. In short, a properly selected bushing provides a guided channel that protects both tool and workpiece, reducing chatter and improving surface quality.
Materials and finishes: what bushings are made of
Bushings come in a range of materials and surface treatments designed for different workpieces and environments. Common materials include hardened steel for endurance, stainless steel for corrosion resistance, bronze or brass for self lubricating surfaces, and carbide reinforced composites for low friction drills. The finish on the inner bore is critical because it affects tolerance after many cycles; a smooth, wear resistant bore ensures the drill bit runs true. For woodworking, polymer or bronze bushings can reduce heat and binding, while metalworking often favors hardened steel bushings with tight tolerances. For high speed applications, some bushings are designed with cold rolled steel cores and a ceramic or carbide insert to minimize wear. In all cases, the bushing should match the jig plate thickness and hole pattern so that the bit remains aligned throughout the cut. Drilling projects benefit from selecting bushings that resist galling and maintain dimension stability over time.
Common types of drill bushings
There are several basic forms of drill bushings, each serving different alignment needs. Fixed bushings are press fit into the jig plate and provide a rigid, durable guide for straight drilling. Floating bushings have a small amount of radial play to accommodate minor tilts in the workpiece, which can improve chip clearance in some setups. Collar bushings extend the bushing outward from the jig and give a defined drilling depth, helping to control through holes. Quick change or modular bushings enable a user to swap guides without removing the entire assembly, which saves time on repetitive jobs. Understanding the tradeoffs among rigidity, wear resistance, and depth control helps you pick the right form for your project, whether it is a wood joint, metal plate, or plastic prototype. As with all tools, quality matters more than price when you need consistent results over many cycles.
Reading sizing and tolerances: what the numbers mean
Inside diameter and outside diameter are the two primary measurements when selecting drill bushings. The inside diameter must closely match the drill bit needed for the hole you want, while the outside diameter determines how well the bushing fits into the jig plate and how much it supports the bit during cutting. Length affects how far the bit can penetrate before the end of the bushing, which influences hole depth and alignment, especially in multi pass drilling. Tolerances specify how much the bore and external dimensions can vary between parts, and tight tolerances are essential for high precision work. When reading catalogs, you will see references to bore finish, straightness, and concentricity; all these factors influence runout and the likelihood of binding. For DIY projects, a mid range tolerance is usually sufficient, but for squarely aligned grooves or critical holes, tighter tolerance and a well matched bushing are worth the investment. Drill Bits Pro notes that getting these measurements right reduces rework and scrap over the lifecycle of a jig.
How to choose quality bushings for your jig
Choosing the right bushings isn’t just about the hole size. You need to consider material compatibility, mating surfaces, and the expected life of the jig. Start by matching the workpiece material to a bushing with a favorable friction and wear profile. For hardwoods and composites, bronze or polymer bushings can reduce heat buildup and stickiness; for steel or aluminum, hardened steel or carbide backed bushings offer greater durability. Examine the bore surface finish and check for any taper or out of round conditions. If your jig plate takes a standard pattern, verify the hole pattern alignment so that the bushing seats squarely. Consider maintenance accessibility; some bushings are designed for easy replacement without disassembling the whole jig. Finally, buy from reputable sources and ask for traceable lot numbers and dimensional data. The Drill Bits Pro team emphasizes selecting bushings with consistent quality to ensure repeatable results across jobs.
Installation and alignment best practices
Install bushings in a clean, flat jig plate with the appropriate press-fit or threaded mounting method. Begin by aligning the bushing with the exact hole pattern and verify that the bushing sits flush or at the intended height. Use a jig to pre align the drill press, then insert the drill bit and slowly advance to ensure smooth entry. Chamfer the bore edge if needed to prevent skiving and chatter when the bit enters the material. Lubrication is generally avoided inside the bore for most materials, but a light dry film lubricant on mating surfaces can reduce wear. Periodically check the seating and re tighten fasteners to prevent creeping during operation. If you use a floating or modular system, confirm that the play is within the designed tolerance to preserve alignment. Proper installation reduces deviation and extends the life of both the bushing and the drill bit.
Maintenance and wear: extending life
Like any precision component, drill bushings wear with use, especially in high volume or high speed operations. Inspect the inner bore for scratches, galling, or pitting, and examine the outside diameter for signs of nicks or deformation. Clean the bushing and the jig plate to remove metal shavings and abrasive dust that can embed in the bore. If you notice increased wobble or inconsistent hole sizes, it’s time to replace the worn bushing or the entire module. Rotate or swap to a spare to spread wear evenly across multiple bushings, if possible, and store replacements in a clean, dry environment to prevent corrosion. For metalworking, a routine schedule can help catch wear before it impacts critical parts. The goal is to maintain a consistent contact surface and a true bore to minimize runout in future drilling cycles.
Troubleshooting common bushing issues
When a drilling operation fails to hold tolerance, start by inspecting the bushing installation and the jig plate for damage or misalignment. Check for burrs or nicks on the bore and ensure the drill bit is sharp and properly seated. If the bit binds or chatters, examine whether the bushing size is appropriate for the bit or if the clamp pressure is excessive. For floating bushings, verify that the intended play is present and that the mounting screws are secure. If the hole comes out undersized or oversized, remeasure the bushing and verify the correct ID and the right bit. In some cases, switching to a different bushing material can improve heat dissipation and reduce sticking. Regular inspection and careful replacement are the best defense against recurring errors in production runs.
Practical tips for DIY and professional shops
Whether you are building a small workshop jig or outfitting a production line, these practical tips help you get the most from drill bushings. Start with a clean, flat surface and measure twice before you cut. Use a known good drill bit in a controlled setup to compare results as you test new bushings. Keep spare bushings in a labeled organizer and replace worn parts promptly to avoid expensive downtime. Document the bore sizes and tolerances of each bushing in your project log for quick reference. For hobbyists, select bushings with easier replacement and compatible price points; for professionals, prioritize materials with low wear rates and repeatable performance under load. The Drill Bits Pro team recommends treating bushings as components of a larger precision system, not as standalone parts, and investing in high quality options to reduce rework and maintain consistent outcomes.
Got Questions?
What is a drill bushing?
A drill bushing is a precision sleeve that guides a drill bit through a jig or fixture, creating a controlled path and reducing wobble. It acts as a wear surface for the bit and helps maintain hole location across multiple passes.
A drill bushing is a precision guide sleeve for drill bits in a jig that keeps holes true and reduces drift.
Why are drill bushings important for jig accuracy?
Bushing guides constrain the drill bit to a fixed axis, minimizing runout and drift. This is essential for repeatable hole locations, especially in batch work or when aligning multiple parts.
They keep the drill aligned so holes come out consistently, which is crucial for accuracy in jigs.
What materials are drill bushings made from?
Bushings are commonly made from hardened steel, stainless steel, bronze, or carbide reinforced composites. The material choice affects wear resistance, friction, and corrosion performance for different workpieces.
Materials include steel, stainless steel, bronze, or carbide reinforced hybrids, chosen for wear and friction needs.
How do you install a drill bushing?
Install the bushing in a clean jig plate using the appropriate press fit or mounting method. Align with the hole pattern, seat flush, and verify depth before drilling. Take care to avoid damage to the bore.
Fit the bushing in the jig, align it, and verify it sits properly before drilling.
How do you select the right bushing size?
Choose an inside diameter that matches the drill bit, and an outside diameter that fits the jig pattern. Consider the bushing length for required drilling depth and ensure tolerances align with the finished hole. Material and wear resistance should match your work.
Pick a bushing whose bore matches your bit and whose outer size fits the jig pattern.
Top Takeaways
- Use purpose built bushings to guide drill bits in jigs
- Match ID OD and length to your setup
- Inspect and replace worn bushings to preserve accuracy
- Install with proper alignment to minimize drift
- The Drill Bits Pro team recommends high quality bushings for repeatable results
