Hammer Drill Chisel Bits: A Practical Guide
Learn how to pick, use, and maintain hammer drill chisel bits for concrete, masonry, and tile. This practical guide from Drill Bits Pro covers bit types, safety, step-by-step techniques, and maintenance to extend tool life.
Goal: master the hammer drill chisel bit for fast, accurate openings in concrete, masonry, and tile. You’ll learn how to match the bit to your drill, select the right style, perform safe setup, and extend life through maintenance. This steps-focused overview helps DIY enthusiasts and pros drill with control, reduce breakage, and achieve cleaner results.
Why the hammer drill chisel bit matters
The hammer drill chisel bit is the primary tool for removing and shaping concrete, masonry, and other hard surfaces. Unlike standard drill bits, chisels are designed to withstand lateral impact and deliver precise chipping action when paired with a hammer function. For DIY enthusiasts and professionals, choosing the right hammer drill chisel bit can dramatically reduce time, improve surface finish, and minimize dust and vibration. According to Drill Bits Pro, the quality of the bit and its carbide tip can directly affect bite and life in tough materials. In this guide, we focus on how to pick, use, and maintain these bits for everyday tasks—from demolition scalping to clean grout removal. Remember that the hammer drill chisel bit is not a decorative accessory; it’s a workhorse that must be matched to the job and tool for safe, efficient operation. The goal is to achieve fast, controlled removal without burning out the bit or the motor. This is why choosing a compatible bit set and using the correct technique matters for both quality and safety on the job.
In real-world work, the most common concrete tasks call for a mix of chisel types and bit materials. Carbide tips endure longer under abrasive masonry and reinforced concrete, while carbon steel chisels offer affordability for lighter, maintenance-oriented jobs. When you pair a solid hammer drill chisel bit with the right speed and pressure, you’ll notice stronger material removal with less rebound and vibration. The Drill Bits Pro team emphasizes that routine inspection of the bit’s tip and shank before and after use prevents surprises mid-project and reduces the risk of damaging the tool. Throughout this article, you’ll see practical guidance, not hype, so you can approach each job with confidence and safety in mind.
So in short, the hammer drill chisel bit is essential for efficient masonry work, and selecting the right style, material, and fit can save time and protect your equipment.
Tools & Materials
- hammer drill with hammer function(Choose a model with variable speed and a reliable hammer mode; verify chuck compatibility (hex or round).)
- chisel bit set (assorted carbide-tipped chisels)(Include flat, point, and wide chisels; select sizes that cover both small detail work and larger surface removal.)
- masonry bits for pilot holes(Use for guiding the chisel path and reducing wandering on hard surfaces.)
- safety goggles(Impact-resistant; ANSI Z87.1 compliant or equivalent.)
- hearing protection(Earmuffs or earplugs compliant with relevant safety standards.)
- dust mask or respirator(N95 or better; protect against silica dust when cutting concrete.)
- work gloves(Grip and hand protection; avoid loose cuffs.)
- dust collection attachment or shop vac(Helps keep dust down and improves visibility during chiseling.)
- measuring tools and marking instruments(Tape measure, square, pencil for accurate alignment.)
- cooling spray bottle or water(Useful for extended chiseling to reduce heat buildup.)

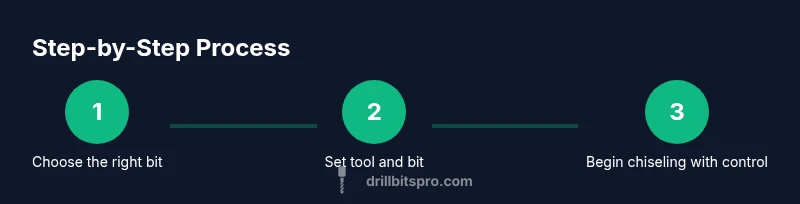

Steps
Estimated time: 45-60 minutes
- 1
Verify tool compatibility and settings
Check that your hammer function is enabled and that the chisel bit shank fits the drill’s chuck securely. Set the drill to a low speed with the hammer function engaged, then confirm the bit seat is solid and straight before touching the work surface.
Tip: A loose chuck is a common cause of bit wobble; always double-check fit before starting. - 2
Plan and mark the work area
Mark the intended removal line with a pencil or chalk, and establish a clear edge to guide the bit. If possible, use a pilot hole or guide line to keep the chisel on track and reduce drift.
Tip: Mark reference points at multiple angles to verify you stay on the intended path while chiseling. - 3
Install the correct chisel bit and secure the shank
Choose the appropriate chisel style for the task (flat for surface removal, point for cores, wide for bulk removal) and insert it fully into the chuck. Tighten the chuck securely and avoid over-tightening, which can strip threads or wear the chuck.
Tip: A clean, dry shank improves grip; wipe away dust before tightening. - 4
Begin with a pilot drill for guidance (optional but recommended)
If you’re working with dense concrete, start with a small masonry bit to create a guided path. This reduces bit wandering and concentrates force where you want it.
Tip: Pilot holes also help prevent edge chipping when starting at a corner. - 5
Chisel with controlled depth and steady pressure
Keep the bit perpendicular to the surface and apply slow, even pressure. Let the hammer action do the work; avoid forcing the bit, which can cause tip breakage or bit binding.
Tip: Pause occasionally to remove debris and inspect progress. - 6
Inspect progress and adjust as needed
After a few passes, check the edge and depth; adjust bit angle or switch to a different chisel if the material resists. If you encounter rebar or hard inclusions, stop and re-route rather than forcing.
Tip: Rebar can dull or crack bits quickly—consider a reinforced-concrete bit if this is common in your project. - 7
Finish edges and deburr
When the removal area is complete, switch to a finer chisel for finishing and deburring rough edges. This yields a cleaner surface alignment for subsequent work like tile or mortar.
Tip: A light pass with a finer bit reduces surface roughness and improves fit for finishing materials. - 8
Cool, clean, and store
Allow bits to cool between long sessions, clean off dust, and store in a dry, organized case. Inspect for wear and replace dull or chipped bits to avoid poor performance on future jobs.
Tip: Keep spare tips handy so you’re not interrupted by sudden wear.
Got Questions?
What is a hammer drill chisel bit?
A hammer drill chisel bit is designed for chiseling and material removal in concrete and masonry when used with a hammer drill. It’s optimized to handle impact and lateral forces, different from standard drill bits that are intended for holes.
A hammer drill chisel bit is a special bit used with hammer drills to chip away masonry and concrete, not for making holes.
Can I use regular drill bits with a hammer drill?
Regular drill bits aren’t suitable for heavy chiseling; you’ll want dedicated chisel bits for removal tasks. For metal or wood, use the appropriate bits, but for masonry chiseling, switch to chisel bits that match your drill.
Regular drill bits aren’t built for chiseling masonry. Use chisels designed for masonry with your hammer drill.
Do carbide-tipped bits last longer?
Carbide-tipped chisels generally last longer in hard, abrasive materials like reinforced concrete, and they resist wear better than plain steel. They cost more upfront but can reduce replacement frequency over time.
Carbide tips last longer on tough materials, reducing replacement frequency.
How do I know which bit size to choose?
Choose sizes based on the task: small bits for detail work and larger bits for bulk removal. For openings near edges, select a narrower bit to minimize chipping.
Pick bit sizes according to the area you’re removing and the detail required.
Are there safety risks when chiseling masonry?
Yes. Risks include flying debris, dust inhalation, and kickback. Always wear PPE, use dust control, and secure materials before starting.
Chiseling masonry can throw debris; wear protection and use dust control.
How do I maintain hammer drill chisel bits?
Keep bits clean, dry, and sharp where applicable; inspect tips for chips and replace when worn. Store in a dry case and avoid exposing carbide tips to impact when not in use.
Keep bits clean, dry, and inspect for wear; replace when needed.
Watch Video
Top Takeaways
- Choose carbide-tipped chisels for durability in concrete.
- Match bit style to the job for clean, precise removal.
- Keep the drill and bit aligned to reduce wander and breakage.
- Protect yourself with proper safety gear and dust control.
- Inspect and maintain bits to extend tool life.
