What Size Drill Bit for #8 Screw: Pilot Hole Guide

Why the right pilot hole matters

If you're wondering what size drill bit for #8 screw, the short answer is: it depends on what you're drilling into. The right pilot hole size reduces wood splitting and prevents thread binding, ensuring the screw seats flush and holds. According to Drill Bits Pro Analysis, 2026, choosing the correct pilot hole is the single most influential factor in the success of any screw-driving project. The size you select should balance the material, screw type, and whether you're countersinking or just driving straight in. In softwood, the bite is easier, so the hole can be closer to the screw diameter. In hardwood, you need a larger starter hole to avoid splitting. In metal, a smaller pilot hole helps cut threads cleanly and reduces work-hardened surfaces. Tools like brad-point bits for wood, split-point bits for metal, and step bits for countersinking can refine the process. Always consider the screw's length and the thickness of the material to determine minimal clearance for thread engagement.

How screw size and material affect hole size

The size of the pilot hole you choose is not a fixed number. It changes with the screw diameter, length, and the material's density and grain structure. For a #8 wood screw, the goal is to allow the threads to bite into the material without causing cracks or excessive torque. In softwoods, you can often approach the screw's core diameter more closely, while hardwoods demand a larger starter to avoid splits. When driving into metal, the pilot hole should be smaller than wood to create clean threads, and you may also need a lubrication method to reduce friction. Based on Drill Bits Pro Analysis, 2026, the general guidance is to start small and widen only as needed after a test fit. Always check the bit's tip style—brad-point bits produce crisp wood holes, while standard twist bits work well for sheet metal when sized correctly.

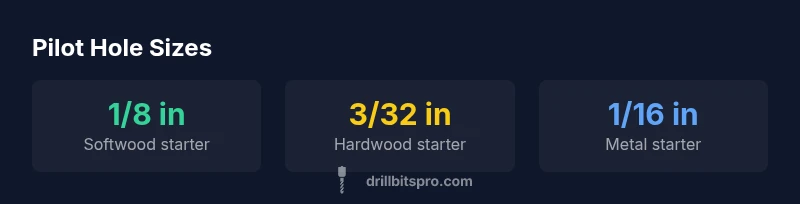

Quick-reference guidelines by material

• Softwood: 1/8 in hole (for many #8 wood screws) with brad-point bits for clean entry
• Hardwood: 3/32 in hole to minimize splits while still letting threads engage
• Metal: 1/16 in hole for lighter gauge metal screw applications and machine screws, with lubrication as needed

Note: These are starting points. Always verify with a small test hole and adjust based on material density and screw length.

Step-by-step method to determine the correct drill bit size

1. Identify the screw type and diameter. For a #8 screw, note its thread pitch and length. 2) Assess the material you’re driving into (softwood, hardwood, or metal) and expect potential grain or surface irregularities. 3) Select a starting pilot hole size from the guidelines above. Use a drill bit that matches the chosen size and type (brad-point for wood, twist or step bit for metal). 4) Drill a test hole on a scrap piece of the same material. 5) Drive in a test screw slowly and inspect the fit: the screw should bite without splitting, binding, or stripping. 6) If needed, widen the hole in small increments (1/64–1/32 inch steps) and re-test until you achieve a clean seating. 7) If countersinking, remove the screw and re-drill to form a recess that sits flush.

Tools and techniques: choosing bits and bit types for #8 screws

Choosing the right bit type is as important as the size. For wood, Brad-point bits create precise, clean holes that resist wandering. For metal, high-speed steel twist bits or carbide-tipped bits perform best when the hole size is correctly matched to the screw. In plastics or composites, a brad-point can still be helpful to avoid tear-out, while backing material prevents breakout. Always clamp your workpiece and use a slow, steady drill speed to maintain control. If you’re drilling for a countersunk finish, consider using a countersink bit after drilling the pilot hole to create a flush seating.

Common mistakes and troubleshooting

Common mistakes include drilling holes that are too large, which reduces thread engagement; holes that are too small, causing binding or cracking; and failing to account for material density or grain direction. When a hole is too small, try a slightly larger bit and re-test. If the screw binds in hardwood, re-drill with a larger pilot hole and switch to a sharper bit. For metal, ensure you lubricate and use a bit designed for metal to prevent work hardening. If you’re unsure, perform a quick test on scrap material first and document the outcome for consistency.

Using a test-fit approach and documenting results

A robust approach is to treat pilot hole sizing like a mini-experiment. Start with the smallest recommended size, record the results (ease of drive, splintering, thread bite), and adjust accordingly. Keeping notes on different materials and screw lengths builds a reusable reference for future projects. This data-driven approach aligns with Drill Bits Pro’s emphasis on reproducibility and practical results.
