Cement Drill Bit Guide: A Practical, Step-by-Step Reference

What is a cement drill bit and how it differs from other bits

A cement drill bit is a masonry bit specifically designed to work with concrete and other masonry substrates. Unlike wood or metal bits, cement bits incorporate a carbide tip or tip welding, a hardened steel body, and a robust shank to withstand abrasion and heat. The goal is to create clean, precise holes in tough materials without wandering or glazing. A key distinction is the mechanical action: cement bits are optimized for hammer actions found on rotary hammers or dedicated hammer drills, which apply both rotation and percussive impact to fracture the material. The Drill Bits Pro team notes that the most common misstep in concrete drilling is attempting to use a standard drill bit without hammer action or insufficient bit concentration. According to Drill Bits Pro, choosing the right bit depends on material hardness, hole diameter, and the required depth, as well as the type of hammer drill you own. For most residential and professional tasks, a carbide tipped cement drill bit paired with a hammer drill provides reliable performance across many concrete mixes.

In practice, you will see differences between bits marketed for masonry, concrete, or tile. Masonry bits rely on solid carbide tips and a more aggressive flute geometry, but they are not always suitable for dense concrete or rebar. Concrete bits often feature a more robust carbide grade and a tungsten carbide matrix designed to tolerate higher penetration speeds and longer drilling sessions. Tile bits, by contrast, are designed to cut through ceramic and porcelain and are not intended for structural concrete. The distinction matters because using the wrong bit can cause rapid wear, overheating, or chipped edges. The Drill Bits Pro Team emphasizes that matching the bit to the material and tool greatly increases both speed and accuracy.

Core design and materials

Cement drill bits are built around three core components: the carbide tip, the steel body, and the flute geometry. The carbide tip is the wear surface during cutting and must resist dulling when facing hard aggregates and rebar. Carbide grades vary, but most common cement bits use a micro-grain carbide that maintains sharpness longer than high-speed steel under heavy loads. The steel body provides torsional strength and heat resistance; many bits use alloy steel that has been heat-treated for toughness. Flute design matters for debris removal; wider flutes help evacuate dust and particles, keeping the bit cool and reducing binding. In professional settings, you’ll often see bits with a stepped tip or chisel geometry to facilitate initial penetration and reduce wandering. Some cement bits are designed for SDS or rotary hammer systems, which accommodate higher impact energy and better power transfer. When selecting a bit, consider your drill type, the target material, and the hole diameter to ensure the bit can sustain the required speed without overheating. The combination of carbide tip grade, steel proportion, and flute geometry determines a bit’s longevity and cutting efficiency.

Choosing the right cement drill bit

Choosing the right cement drill bit starts with identifying your drilling environment. For DIY projects, a general purpose carbide tipped bit in the commonly used 5 mm to 32 mm diameters covers most needs. If you are drilling through dense concrete or rebar, a premium carbide grade with reinforced shank is worth the extra cost. For concrete block or brick, a slightly different tip geometry can improve starting accuracy and reduce wandering. When using a hammer drill, verify that the bit is designed for hammer action and, if possible, for the same brand of drill as the tool’s chuck system. For heavier-duty projects, consider a tungsten carbide or diamond composite tip, which offers higher resistance to heat and wear. Tools labeled as SDS-Plus or SDS-Max are powerful options for heavy-duty drilling, as they are designed to handle higher impact energy and can sustain longer drilling sessions without bit failure. Always start with a pilot hole if you are working with larger diameters, which helps guide the bit and minimizes bit walking. The Drill Bits Pro Analysis, 2026, highlights that correct tool pairing and material-specific bit selection dramatically reduces bit wear and improves hole quality.

Drilling techniques for concrete

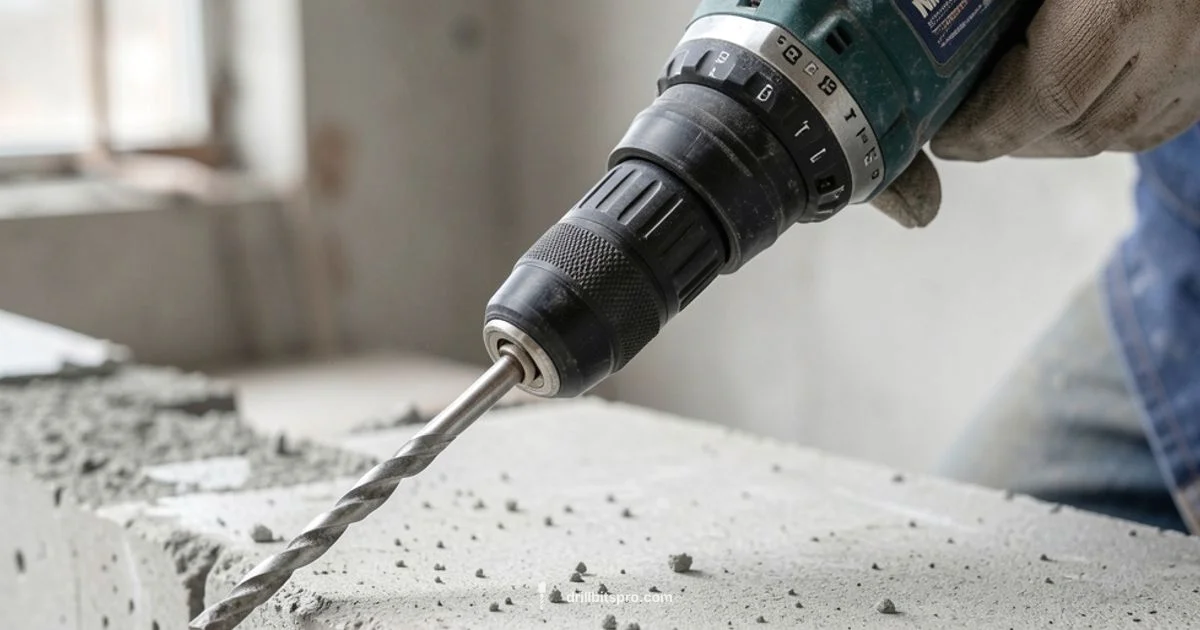

Begin with a clean, marked surface and a pilot hole if the diameter is large. Clamp the workpiece and align the drill perpendicular to the surface to minimize wandering. Begin at a slow speed to establish bite, then increase speed as the bit begins to cut. Apply steady, even pressure rather than pushing hard; excessive pressure overheats the bit and can crack the concrete. Water cooling is not always required with carbide tips, but in hot environments or during long drilling sessions a light mist can help dissipate heat and extend bit life. Periodically withdraw the bit to clear debris and reapply coolant if needed. Keep the drill steady and avoid twisting motions that can shear the tip. When drilling through masonry with embedded reinforcement, drill slowly and use a metal-detection method or a rebar-cutting bit designed for such obstacles. The practical takeaway is to maintain control, manage dust, and consistently monitor for smoke or an unusual heat feel, which are signs of overheating. The Drill Bits Pro Team recommends checking bit wear after every few holes to ensure consistent performance across the project.

Maintenance and lifespan

Proper maintenance extends the life of a cement drill bit. After use, wipe the bit to remove fine dust and debris, then lightly lubricate the shank to prevent corrosion. Store bits in a dry, organized case to avoid chipping the carbide tips from contact with other bits. Inspect bits for chipped edges or dull points; even small imperfections can worsen hole quality and increase wear on the bit and drill. Sharpening cement drill bits is generally not practical; instead, replace worn tips with new carbide tips or entire bits when performance drops noticeably. Regular inspection prevents sudden tool failures on the job site and keeps your drilling tasks reliable. For high-usage environments, keep a rotating stock of spare bits so you never work with a worn-out cutting edge. The long-term cost of proper maintenance is lower than the expense of frequent replacements and the downtime associated with poor results.

Safety considerations and best practices

Always wear protective eyewear, a dust mask, and hearing protection when drilling into concrete. Concrete dust contains crystalline silica and fine particles that pose health risks, so use an appropriate respirator in dusty conditions. Ensure good ventilation and cover nearby surfaces to prevent dust damage. Secure the workpiece, use clamps, and maintain a clean workspace to avoid slips. When using a hammer drill or rotary hammer, follow the manufacturer’s instructions including recommendations for bit speed, torque, and the correct chuck type. Avoid overheating by taking short breaks and cooling the bit if you notice smoke or a strong burning odor. Keep hands away from the bit while it is rotating, and never touch the carbide tip immediately after drilling as it can be very hot. The combination of proper PPE, steady technique, and tool safety reduces injury risk and extends tool life.

Common applications and project scenarios

Cement drill bits are used across many real-world tasks, from installing anchor bolts in new walls to creating lead-in holes for electrical boxes in concrete slabs. For bathroom remodels, you might need to drill through masonry blocks or hollow-core concrete to place fasteners. When dealing with rebar, pre-drilling with a smaller pilot hole helps reduce bit wander and protects the bit from sudden impact. For outdoor projects, such as footings or fence posts, ensure you select a bit rated for dense concrete and consider using a rotary hammer with vibration damping to reduce user fatigue. In commercial settings, larger diameters require robust carbide tips and longer bit lengths to maintain cutting efficiency over extended holes. The practical guidance is to assess the material’s hardness, confirm drill compatibility, and plan hole placement precisely before starting.
