What Size Drill Bit for 1/4 TapCon
Learn the drill bit size for installing 1/4 TapCon anchors in concrete. This practical guide covers ranges, tool choices, and step-by-step tips for secure fastening.

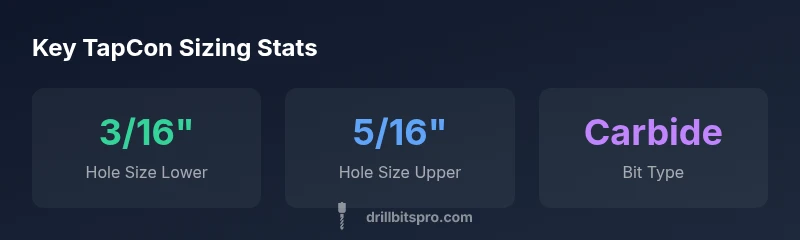

For a 1/4 TapCon in concrete, the drill bit size depends on the substrate and TapCon product. Generally, use a hole between 3/16 inch and 5/16 inch, with the exact size specified by the TapCon packaging. Always verify the recommended size on the packaging or manufacturer website before drilling to ensure secure anchoring.
Why getting the drill bit size right matters for 1/4 TapCon
Getting the drill bit size right is the foundation of a secure 1/4 TapCon anchor. If the hole is too small, the anchor won't seat properly and may crack the surrounding masonry. If the hole is too large, the anchor won't grip and can loosen over time. The correct size ensures proper engagement, reduces installation effort, and prevents costly failures.
According to Drill Bits Pro, the most common errors stem from ignoring substrate, misreading packaging, or using a worn bit. In practice, rely on TapCon packaging guidance and double-check embedment depth and deburring. Investing in a quality carbide-tipped masonry bit and keeping your bit sharp pays off with cleaner holes and consistent holds.
How to determine the correct hole size for 1/4 TapCon
The exact hole size is specified by the TapCon product line and depends on the substrate (concrete vs masonry) and the anchor length. Start by reading the packaging and the manufacturer’s instructions. In general, expect a narrow range between 3/16" and 5/16". Soft masonry often tolerates smaller holes, while hard concrete may require the larger end of the range. Always confirm the final size before drilling, and measure your anchor embedment depth to ensure the hole will accept the anchor fully with enough bite.
Choosing the right drill bit material and quality
Choose a carbide-tipped masonry bit for concrete and masonry substrates. A sharp, well-maintained bit produces cleaner holes, reduces dust, and minimizes bit wear. Avoid low-quality bits, worn edges, or bits designed for wood or metal; they will underperform and risk oversized holes or thermal damage. Also check that the shank diameter matches your drill chuck; a loose fit can wander and create an oversized hole. For best results, use fresh carbide tips and a reliable hammer drill or rotary hammer with a masonry setting.
Step-by-step installation workflow for 1/4 TapCon
- Mark the locations clearly and confirm the alignment. 2) Select the correct bit size per TapCon instructions. 3) Drill perpendicular to the surface to the requested depth. 4) Deburr and clean the hole thoroughly (use a shop vac or compressed air). 5) Insert TapCon and tighten to the manufacturer’s torque specification. 6) Check for tightness and clean up debris. Following these steps yields consistent pull-pout resistance and long-term performance.
Substrate considerations: concrete vs masonry and how it affects hole size
Concrete and masonry substrates vary in density and aggregate content. In soft masonry, the bit may advance more quickly and the hole may be slightly smaller; in dense concrete, you may need a larger diameter to achieve the same bite. The goal is a clean bore that accepts the anchor with minimal wobble. In all cases, ensure the hole is clean and dry before installing the TapCon to maximize grip.
Common mistakes and how to avoid them
- Using the wrong hole size or failing to drill to depth can cause loss of holding strength. - Not cleaning the hole leads to debris interfering with the bite. - Re-using a dull bit reduces hole quality and accuracy. - Skipping the embed depth check can leave the anchor undersized. By following the manufacturer’s instructions and verifying the drill bit size, you reduce the risk of failure.
Tools and accessories for clean holes and safer installation
Essential tools include a carbide-tipped masonry drill bit of the correct size, a hammer drill or rotary hammer with masonry setting, a vacuum or compressed air for hole cleaning, a brush, a caliper or tape to verify hole size, and a torque wrench or driver to seat the TapCon to spec. Debris-free holes improve grip and reduce the chance of anchor misalignment.
Practical tips and best practices for long-term performance
Always keep your drill bit sharp and use a fresh bit for each job. Dry-cutting or water-cooling methods are not recommended for masonry. Inspect anchors after heavy use and re-tighten if necessary. When installing in columns or overhead surfaces, consider protective gear and a buddy system to avoid accidents.
Hole size guidance by substrate for 1/4 TapCon
| Substrate | Recommended Hole Size | Notes |
|---|---|---|
| Soft masonry | 3/16" | Common for softer substrates; confirm with TapCon spec |
| Standard concrete | 3/16"–5/16" | Use size recommended by TapCon packaging |
| Hard concrete/aggregate | 5/16" | May require larger hole per manufacturer |
Got Questions?
What size drill bit should I use for a 1/4 TapCon in concrete?
The exact size depends on substrate and TapCon model. In many cases, a hole in the 3/16" to 5/16" range is recommended. Always check the TapCon packaging for the precise specification.
Use the packaging size recommended for your TapCon and substrate.
Can I use a wood drill bit for TapCon installation?
No. TapCon anchors require a carbide-tipped masonry bit designed for concrete and masonry surfaces to ensure a clean bore and proper grip.
Not suitable; use a masonry bit instead.
Do I need to drill deeper than the embedment depth?
No. The hole depth should accommodate the embedment depth plus the bit’s own debris clearance as per TapCon instructions.
Drill to the recommended depth, not deeper.
Is a pilot hole necessary for TapCon installation?
Yes, a pilot hole of the recommended size helps the bit start cleanly and reduces wandering, especially on hard concrete.
Start with the right pilot hole size.
What happens if I use too large a hole?
An oversized hole reduces the holding power of the TapCon and can cause pull-out under load.
Too big = weaker anchor.
What drill speed should I use?
Use a masonry setting on a hammer drill or rotary hammer, keeping steady pressure and avoiding overheating the bit.
Use proper masonry mode and steady pressure.
“Correct drill-bit sizing is essential for reliable TapCon anchors. Always verify the exact hole size and depth per TapCon's instructions to prevent loosening or failure.”
Top Takeaways
- Confirm hole size with TapCon packaging.
- Choose carbide-tipped masonry bit for best results.
- Drill perpendicular to surface and deburr holes.
- Clean holes thoroughly before anchor insertion.
- Always verify embedment depth and torque specs.
- Avoid using worn or wrong-type bits.
- Keep the bit sharp for consistent performance.
