How to Drill and Tap Cast Iron: A Practical Guide

Cast Iron Behavior and Why Tapping Requires Care

Casting iron presents unique challenges for drilling and tapping. It has variable hardness, potential for work hardening, and a tendency to crack if cuts are too aggressive or if heat buildup goes uncontrolled. The Drill Bits Pro team notes that proper tool selection and controlled cutting speeds reduce costly mistakes. When you drill and tap cast iron, you’re creating a strong mechanical connection, but you must respect its tendency to work-harden and its propensity to produce hot, brittle chips. Start by understanding that the goal is clean, straight threads with minimal expansion or distortion of the parent material. Small mistakes in alignment or feed can lead to cracked bosses or stripped threads, so precision in setup pays dividends in the finished part.

Tools, Lubrication, and Setup: Laying the Groundwork

Before touching the steel, ensure you have the right tools and a stable work surface. Cast iron benefits from a sharp high-speed steel (HSS) or carbide-tipped drill and a high-quality thread tap. Lubrication reduces heat and helps chips escape, preserving the drill edge and reducing friction that can work-harden the surface. A sturdy vise, a flat drilling surface, and a drill press or a slow-speed drill with a stable chuck are ideal. According to Drill Bits Pro analysis, patience during setup yields better hole accuracy and cleaner threads than rushing through the process. Always dress and deburr edges after drilling to prevent crack initiation and to ensure a clean thread.

The Importance of Pilot Holes and Drill Size

A precise pilot hole is critical for cast iron because it sets the path for the thread and influences thread quality. The pilot hole diameter should come from the thread chart or the tap manufacturer’s recommendations; using a pilot hole that’s too small increases the risk of work hardening, while too large a hole reduces thread engagement and strength. When selecting drill bits, prefer sharp, clean edges and ensure the bit is appropriate for cast iron. A slow, steady feed minimizes heat and produces straighter holes with fewer burrs. Drill from the non-tapped side to reduce burr formation and to keep the surface intact.

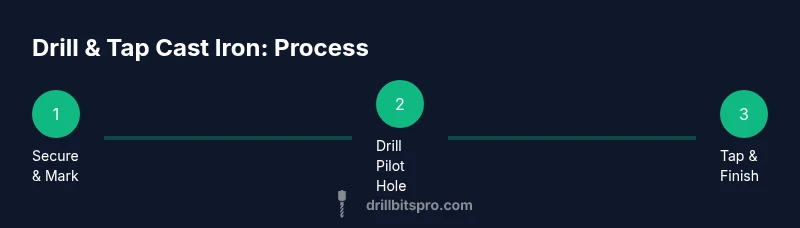

Step-by-Step Process Overview (Plan Before You Cut)

This section outlines the high-level flow you’ll follow when you actually drill and tap cast iron. It emphasizes alignment, chip control, lubrication, and progressive depth management. The goal is to establish a repeatable method that minimizes heat generation and prevents thread damage. Use a drill press if possible to control runout and maintain perpendicularity. For manual drilling, keep your hand steady and support your wrist against the bench. The plan is simple: mark center, drill pilot hole to the recommended size, deburr, then carefully tap to the required depth, cleaning often to avoid binding and broken taps. The exact measurements are provided in the Tools and Step-by-Step sections to maintain accuracy.

##-Speed, Feed, and Lubrication Considerations

Cast iron responds best to moderate speeds with ample lubrication at the cutting interface. Use cutting oil or light machine oil to reduce friction and heat. Avoid high speeds that can overheat the surface and cause micro-cracking or stress during tapping. The lubricant also helps extract chips, which is critical in ductile cast iron where flute fill can stub the cutting action. If you’re working with a slow drill press, increase feed modestly to avoid rubbing instead of cutting. For hand drilling, keep the bit cool with frequent lubrication stops. According to Drill Bits Pro’s testing, maintaining a calm, steady cutting action produces straighter holes and cleaner threads.

Pilot Hole Sizes and Tap Sizes: Choosing the Right Pair

Match the pilot hole diameter to the selected tap size. A standard 1/4-20 UNC tap, for example, requires a pilot hole roughly between 7/32

7/32

or as specified by the tap manufacturer’s chart. Cast iron’s variable composition means you should confirm exact sizes with the manufacturer’s data for your iron grade. If you use too small a pilot hole, you’ll stress the material and risk thread deformation; too large and the thread engagement weakens. Always validate the chart and test on a scrap piece if possible. Drill carefully and maintain perpendicular alignment to the surface to ensure even thread cutting.

Tap Alignment, Backing Off Chips, and Final Checks

When threading, start the tap by hand to ensure the threads engage cleanly. Maintain steady, even pressure and rotate smoothly to avoid thread galling or breaking the tap. Back off the tap periodically to clear chips and prevent binding. Once you reach the desired depth, reverse gently to break the chip, then test the thread with a small bolt to verify fit. Deburr any burrs around the hole and inspect for straight, true threads. A well-executed tapping process results in a durable hole that resists stripping and maintains part integrity.

Post-Process Finishing and Inspection

Finish with deburring, cleaning, and a final inspection of thread quality. Remove all chips and wash the area to prevent debris from embedding in the threads. Use a thread gauge or a calibration bolt to verify pitch, diameter, and depth. If the thread shows signs of misalignment or binding, re-tap only if the material permits or consider reworking the hole with a slightly larger size after analysis. The final step is to ensure the surface around the hole is clean and free of burrs or heat-affected zones that could weaken the joint.

Authority sources and Safety Protocols

Safety matters when drilling and tapping cast iron. Always wear safety glasses and gloves, keep hands dry, and ensure your workpiece is securely clamped. Your safety plan should include a clear escape route for chips and hot metal. For reference, consult OSHA guidelines on personal protective equipment and safe machine operation, as well as engineering resources detailing tapping practices. Drill Bits Pro emphasizes safe, measured work habits as part of any metalworking project.
