Step Drill Bit for Sheet Metal: How to Use and Choose
Learn how to select and use a step drill bit for sheet metal, maximizing clean holes and tool life with practical, AI-assisted guidance from Drill Bits Pro.
Using a step drill bit lets you drill a small hole and progressively widen it to the final diameter with a single tool. This guide covers how to choose the right bit, set safe speeds, and apply proper technique for sheet metal. You’ll learn sizing, material compatibility, and practical steps trusted by DIYers and pros alike.
Why a step drill bit is ideal for sheet metal
For thin sheet metal, a step drill bit enables clean holes and smooth enlargement without swapping bits. The progressive-diameter geometry reduces tool changes and helps maintain concentricity, which is especially valuable when working with aluminum or thin steels. According to Drill Bits Pro, the bit’s conical tip and stepped cutting edges work together to minimize burrs and deflection, making it easier to start the hole accurately and finish with a tidy edge. Always clamp the workpiece and use a backing support to reduce tear-out on the exit side. The right bit size and technique determine hole quality and tool life, so plan final diameter before you cut.
How a step drill bit works
A step drill bit features a central pilot tip and a series of progressively larger diameters along its body. As the bit advances, each step cuts to a larger size, effectively drilling and enlarging in one motion. This design concentrates cutting action along the facing surface and guides the hole with the pilot tip, producing more concentric holes than a traditional twist bit. The cutting edges are optimized for metal, and chips are cleared through the flute path. To maximize performance, keep the surface well-supported, maintain perpendicular alignment, and avoid side loads that could bend the bit or the sheet.
Sheet metal materials and compatibility
Sheet metal comes in various alloys and thicknesses, from soft aluminum to carbon steel and stainless variants. Aluminum is forgiving and typically benefits from lower cutting resistance, so a step drill bit performs well with gentle feeds. For steel and stainless, heat management is essential; use light lubrication and moderate speeds to prevent overheating that dulls the bit. Whether you’re drilling thin gauge or just shy of thicker material, ensure the workpiece is securely clamped and supported. Bit coatings like basic oxide or titanium nitride can influence wear resistance, but proper technique and material choice remain the most important factors.
How to choose the right step drill bit
Start by listing the hole sizes you’ll typically need, then pick a bit with several steps that cover the smallest to the largest diameter. More steps give finer control but can cost more and be less forgiving if you apply excessive force. Look for durable steel construction, a sharp pilot tip, and a geometry that matches your metal type. For steel or stainless, a harder coating can help reduce wear; for aluminum, emphasis on a sharp edge and clean-cut geometry is often more beneficial. Consider flute length and overall diameter to balance chip evacuation with rigidity for your specific projects.
Drill setup and safety basics
Create a safe work environment before you start. Clear the area, wear safety glasses, and secure the metal with clamps to a sturdy bench or metal working vise. Use a backing board to minimize tear-out on the exit side, and ensure the drill is set to a low-to-mid metal-cutting speed. If cutting steel, apply a small amount of cutting oil to reduce heat and prolong bit life; for aluminum, you can often drill dry. Keep hands away from the rotating bit, and verify alignment with the center mark before applying pressure. Maintain steady, even feeds throughout the cut.
Step-by-step drilling technique
- Plan the hole: choose the starting step and the final size. 2) Secure the sheet with clamps and a backing board. 3) Center-mark the hole with a punch to prevent wandering. 4) Start with the smallest step, using a light touch and perpendicular alignment. 5) Progress to larger steps gradually, pausing to clear chips as needed. 6) When near final size, slow down to avoid over-cutting or chatter. 7) Withdraw slowly and deburr both sides for a clean finish. 8) Inspect the hole for concentricity and edge quality. 9) Clean up and store the bit properly.
Avoiding burrs and material galling
Burrs are common on sheet metal after drilling, especially on exit edges. Deburr the hole on both sides using a deburring tool, a round file, or fine sandpaper to remove sharp edges. Use a light chamfer if a precise edge is required. Prevent burrs by finishing from the exit side and ensuring the workpiece remains properly supported to avoid tear-out. If you notice excessive heat or discoloration, pause, withdraw, and reassess lubrication and speed to avoid dulling the bit.
Maintenance, storage, and life extension
After drilling, wipe off chips and wipe the bit clean to prevent corrosion. Store bits in a dry case or organizer to avoid edge knocks. Inspect cutting edges for nicks or dullness; sharpen or replace as needed. Keep coatings intact by avoiding banging the bit against hard surfaces. Periodically apply a light coating of oil to metal-cutting tools and rotate through your bit set to distribute wear evenly. Maintaining sharp edges and proper storage will extend the life of your step drill bits.
Common mistakes to avoid
Avoid applying heavy side pressure that can cause wandering or breakage. Do not drill without securing the sheet or without a backing board, which can cause tear-out and edge damage. Starting without a center punch increases the risk of the bit skating off the mark. Skipping lubrication on steel or using the wrong speed for metal can shorten bit life and produce rough edges. Finally, neglecting deburring leaves hazards and may compromise fit and finish of drilled components.
Using pilot holes vs direct stepping
Pilot holes can help guide the bit and keep it centered, especially on thicker sheets or harder metals. For very thin sheet, the smallest step might act as the pilot and suffice, reducing the number of tool changes. If the workpiece is prone to slipping, a light center punch and careful clamping become even more important. When in doubt, start with the smallest step and verify alignment before proceeding to larger steps.
Practical project example: hole in a sheet metal panel
Imagine you need a 1/2 inch hole in a 16-gauge steel panel. You would start with a center punch mark, clamp the panel to a backing board, and select a step drill bit that begins at a small diameter and increases to 1/2 inch. You drill at a steady pace, pausing to clear chips after each step, and switch to deburring tools as soon as the final diameter is achieved. The result is a clean hole with minimal burrs and good concentricity, ready for fasteners or fittings. This workflow mirrors typical shop practice for panel modifications.
Authority sources
- OSHA: https://www.osha.gov
- CDC/NIOSH: https://www.cdc.gov/niosh/
- NIST: https://www.nist.gov
Tools & Materials
- Step drill bit set (multiple sizes)(Choose a set covering typical sheet metal hole sizes)
- Drill with adjustable speed(Metal-cutting speeds should be in the low-to-mid range)
- Clamps or Vise(Secure the workpiece firmly)
- Safety glasses(Protect eyes from chips)
- Backing board (scrap wood or plywood)(Prevents tear-out on exit)
- Center punch(Creates a starting dent to guide the bit)
- Lubricant or cutting oil (for steel)(Reduces heat and wear)
- Deburring tool(Finishes the hole edge)
- Marker or tape(Marks hole centers clearly)

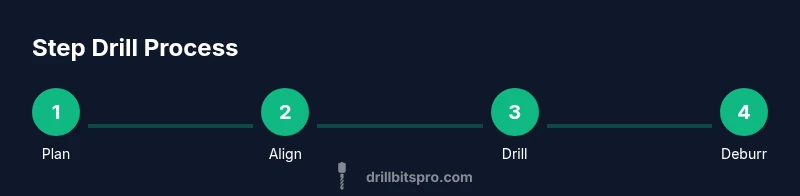

Steps
Estimated time: 60-90 minutes
- 1
Prepare and plan
Assess the metal type and thickness, list the final hole diameter, and choose the smallest step to start. Prepare the backing board and clamps. Verify the sheet is supported and won't move during drilling.
Tip: Plan the final diameter to minimize tool changes and ensure clearance for fasteners. - 2
Secure the workpiece
Clamp the sheet metal firmly to a stable surface or backing board. Ensure there is a clear exit area and use a vise or clamps to prevent movement.
Tip: A backing board reduces tear-out and keeps the surface smooth on the exit side. - 3
Center and pilot
Mark the center with a punch and align the smallest step with the mark. Start gently to establish control and prevent wandering.
Tip: Even a light center punch helps keep the bit on target. - 4
Start with the smallest step
Engage the bit at the smallest diameter and apply light, steady pressure. Let the bit's geometry do the cutting to avoid grabbing.
Tip: If the bit grabs, back off immediately and re-align before continuing. - 5
Progressively enlarge
Move through each step gradually, maintaining steady speed. Pause to clear chips when you move to a larger diameter.
Tip: Chip buildup can cause binding; stop and clean as needed. - 6
Close the hole safely
When approaching the final size, back the bit out slowly to minimize burrs and heat. Deburr the edge after exiting.
Tip: Finish from the exit side with a deburring tool for a clean edge. - 7
Lubrication and cooling
For steel, apply a small amount of cutting oil at intervals. Aluminum typically drills well dry, but use oil if you notice heat buildup.
Tip: Avoid overheating; it dulls the cutting edges and can cause work hardening. - 8
Clear chips and verify size
Withdraw the bit, wipe away chips, and verify the diameter with a caliper or gauge. Inspect concentricity visually.
Tip: Chips left in the hole can degrade accuracy if not removed. - 9
Finish and store
Deburr the hole on both sides, clean the surface, and store the bit in a dry, organized case. Record wear for future replacements.
Tip: Proper storage prevents corrosion and keeps edges sharp.
Got Questions?
What is a step drill bit used for in sheet metal?
A step drill bit has multiple cutting diameters along its length, allowing you to drill a small pilot hole and progressively enlarge it without changing bits. It’s ideal for thin sheet metal and helps keep holes concentric.
A step drill bit lets you drill and enlarge holes with one tool, great for thin metal.
Can I use a regular twist drill bit for sheet metal?
Twist bits can work for very thin sheets but typically produce rougher edges and may require multiple bits. A step drill bit provides cleaner holes and reduces tool changes.
Twist bits work but usually leave rough edges and require more tools.
What materials are step drill bits best suited for?
They perform well on aluminum and thin steel. For stainless, use lubrication and slower speeds to manage heat and wear.
They work well on aluminum and thin steel; lubricate for stainless.
How do I prevent burrs when using a step drill bit?
Deburr the hole using a deburring tool or a file to remove sharp edges. Proper deburring reduces injury risk and improves fit.
Deburr after drilling to remove sharp edges and improve fit.
Do I need a pilot hole when using a step drill bit?
Pilot holes aren’t always required, but starting with a center punch and the smallest step helps keep the bit centered, especially on thicker sheets.
Starting with a small punch helps keep the bit centered.
What safety gear should I wear?
Wear safety glasses and protect your hands. Secure loose clothing and keep hair away from the drill path.
Safety gear and secure clothing protect you while drilling.
Watch Video
Top Takeaways
- Start with the smallest step and progress gradually.
- Secure the workpieces and support with backing to prevent tear-out.
- Deburr edges for safe, clean finishes.
- Choose proper bit coating and quality for metal work.
