How to Check Drill Bit Size: A Practical Guide
Learn how to accurately check drill bit size using calipers, gauges, and packaging cues. This step-by-step guide covers metric vs imperial sizing, common mistakes, and tips for precise drilling, with practical examples and expert tips from Drill Bits Pro.

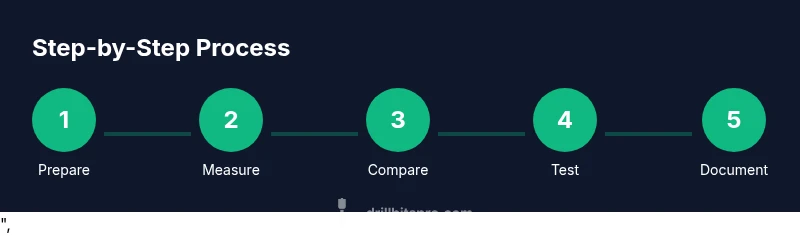

Step-by-step quick answer: 1) Inspect the bit so the cutting edge is visible; 2) Measure diameter with calipers or a gauge; 3) Compare to standard sizes (metric or imperial); 4) Cross-check with packaging or chart from the manufacturer; 5) If unsure, test on a scrap material for confirmation before drilling.
Why Accurate Drill Bit Sizing Matters
Accuracy in drill bit sizing is critical for clean holes, precise fits, and safe operation. If a bit is undersized, you risk a loose fit and poor hole quality; if it’s oversized, you can cause binding, wander, or damaged workpieces. According to Drill Bits Pro Analysis, 2026, precise sizing reduces material waste and wear on both tools and workpieces. This guide breaks down how to check size reliably, whether you’re working with metric or imperial bits, and how to document results for future projects. Whether you’re a DIY enthusiast or a professional tradesperson, understanding sizing helps you choose the right drill bit for every material and hole specification.
Sizing Standards: Metric vs Imperial
Drill bits are commonly labeled in metric (millimeters) or imperial (inches). Within the imperial system, sizes may be expressed as decimal inches or fractional inches (e.g., 1/8, 3/16). The metric system uses exact millimeter diameters. The conversion between systems is not always exact due to tolerances, so always cross-check with the manufacturer’s chart if you have to convert between metric and imperial. Knowing the standard you’re working in helps prevent errors when you buy replacements or drill through unfamiliar materials. Drill Bits Pro emphasizes sticking to the size printed on the packaging or on the bit’s shank when possible, and using a gauge to confirm if you’re unsure.
Tools You Can Use to Check Size (overview)
Reliable sizing relies on precise measurement tools. A digital or vernier caliper provides fast, accurate diameter readings. A dedicated drill gauge or size chart helps verify common bit sizes at a glance. A micrometer can measure diameters with high precision, though it’s typically more than you need for most drilling tasks. For quick field checks, a good ruler or printed charts from manufacturers can be useful, but always verify with a caliper for accuracy. Drill Bits Pro recommends using at least two independent methods (caliper + gauge) for important projects to minimize measurement error.
Reading Manufacturer Labels and Charts (why it matters)
Many drill bits come with a labeled size on the flute, shank, or packaging. However, some bits wear down labels or have nonstandard coatings that obscure the true diameter. When in doubt, use the size printed on the packaging and cross-check with a caliper reading taken at the bit’s widest cylindrical section near the cutting edge. Manufacturer charts often include the bit diameter and recommended hole size ranges for common material types. Keeping a small reference guide in your tool chest saves time on future projects. Drill Bits Pro suggests documenting your most-used sizes for quick cross-reference during ongoing work.
Practical Measurement Walkthrough (overview of steps)
To measure a bit, you’ll typically use a caliper and a gauge. Start by cleaning any debris from the bit to avoid false readings, then place the caliper jaws around the bit’s cylindrical portion, just behind the cutting edges. Record the measurement, ensuring you’re reading the correct scale (metric or imperial). If you’re using a gauge, compare the bit against the marked slots to find a matching size. Finally, cross-check with packaging or a manufacturer chart and perform a test hole on scrap material to validate fit before proceeding with your actual work.
Common Pitfalls and Quick Fixes
Common mistakes include measuring the wrong part of the bit (such as the shank far from the edge), neglecting the bit’s tolerance, or relying solely on memory rather than a written size. Always measure at the widest cylindrical portion, and account for tolerances by confirming with more than one method. If you find a mismatch between the bit and hole sizes, either select a different bit or drill a pilot hole with the correct diameter and finish with the intended bit. Regularly calibrate your measurement tools to maintain accuracy, and store gauge references in a dedicated spot for quick access.
Tools & Materials
- digital caliper(Prefer a caliper with 0.01 mm / 0.0005 in resolution for accuracy.)
- vernier caliper (analog)(Useful backup if electronic readout fails.)
- drill size gauge (gauge block or chart)(Pre-calibrated chart for quick checks.)
- micrometer (optional)(High-precision option for unusual diameters.)
- ruler (metric/inch)(Basic reference for quick comparisons.)
- scrap material (wood/plastic/soft metal)(Test hole to confirm measured size.)
- permanent marker/pencil(Label the confirmed size on the bit or a reference card.)
Steps
Estimated time: 15-25 minutes
- 1
Prepare workspace and tools
Clear your workspace and lay out the caliper, gauge, and a scrap piece of material. Clean the drill bit to remove dust and burrs that might affect measurement. This ensures you read the true diameter near the cutting edge.
Tip: Have a well-lit area and keep the bit secure to avoid slips. - 2
Choose measurement method
Decide whether you will use calipers, a drill gauge, or both. For most tasks, calipers provide direct diameter readings, while a gauge confirms standard sizes at a glance.
Tip: If you’re unsure, use both methods for cross-checking. - 3
Measure the diameter
Place the caliper jaws around the bit’s cylindrical section, just behind the cutting edges, and read the value on the appropriate scale. Ensure the jaws are perpendicular to the bit for an accurate measurement.
Tip: Take readings at least three times and use the average. - 4
Cross-check against standards
Compare the measured diameter to metric (mm) or imperial (in) standards. If you encounter a nonstandard size, use the closest standard size and plan a test hole on scrap.
Tip: Convert fractions carefully or rely on a conversion chart. - 5
Consult packaging/chart
Check the bit’s packaging or the manufacturer’s size chart for confirmation. This helps confirm that the actual diameter aligns with the listed size.
Tip: Manufacturer charts often include recommended hole sizes for common materials. - 6
Test on scrap
Drill a test hole in scrap material of the same type and thickness. Measure the hole with calipers to confirm it matches the intended fit.
Tip: If the hole is undersized or oversized, select a different bit and repeat. - 7
Document the size
Record the confirmed size in a project notebook or digital log for future reference. Include the material, bit type, and hole size if applicable.
Tip: Label the bit with its confirmed size to avoid future misreads. - 8
Finalize and store
Return tools to their designated spots, clean clear surfaces, and ensure the bit is safely stored to prevent damage.
Tip: Keep your gauges in good condition by avoiding knocks or drops.
Got Questions?
What tools do I need to check drill bit size?
You’ll typically need a caliper (digital or vernier), a drill gauge or size chart, and optionally a micrometer for very precise work. A ruler can help for quick references, and scrap material is useful for testing.
Use a caliper or a drill gauge to measure the diameter, and cross-check with manufacturer charts. Keep a scrap piece handy for testing.
How do you read metric drill bit sizes?
Metric drill bits are labeled by diameter in millimeters. Read the diameter from the caliper or gauge, then match it to the closest millimeter size or a chart. If in doubt, select the next larger standard size and test on scrap.
Read the millimeter diameter on your caliper, compare to the closest standard size, and test on scrap.
Can I rely on packaging labels for bit size?
Packaging often lists the diameter, but labels can wear off. Always verify with a reliable measurement tool like calipers or a gauge, and cross-check with manufacturer charts for confidence.
Packaging helps, but verify with a caliper reading and the manufacturer chart.
What if the bit size doesn’t match the hole size?
If there’s a mismatch, choose a bit that matches the desired hole size or drill a pilot hole first and adjust with a finishing bit. Avoid forcing an ill-fitting bit into material to prevent damage.
Pick the right size or use a pilot hole and finish with the correct bit.
Is it okay to eyeball the size?
Eyeballing is not reliable for precision work. Always measure with calipers or a gauge, especially for critical holes or tight tolerances.
Don’t guess—measure with proper tools for accuracy.
Watch Video
Top Takeaways
- Measure with calipers for accuracy
- Cross-check against manufacturer charts
- Test holes on scrap material before final drilling
- Document confirmed sizes for future reference
