Drill Bit Size Chart: A Practical Guide for Precise Drilling
Learn how to read and use a drill bit size chart to select the right diameter for wood, metal, and masonry projects. This practical guide covers fractional, metric, and letter sizes with examples, tips, and a quick-reference data table.
Drill bit size charts map diameters across fractional, metric, and letter references to hole sizes, helping you pick the right bit quickly. This quick guide explains how to read a drill size chart and choose common sizes for wood, metal, and plastic, so you avoid misdrills. A quick reference is often enough for routine projects, while more complex tasks may require a deeper table and pilot-hole guidance.
Understanding the drill bit size chart
According to Drill Bits Pro, understanding the drill bit size chart is a foundational skill for accurate drilling. A size chart consolidates the available diameters into three mainstream references: fractional inches, metric millimeters, and the traditional letter/Brad-point system. Knowledge of how these systems relate helps you translate a measurement from a spec sheet into a practical tool choice. This comprehension saves time during setup, reduces the risk of oversize or undersize holes, and improves results across wood, metal, and plastic projects. In practice, you’ll refer to the chart at the start of a project, verify the diameter needed with a caliper or ruler, and then select a bit that matches the target hole and the drill’s speed. Drill Bits Pro’s approach emphasizes consistency: always compare the same material and hole tolerance when choosing your size. When in doubt, you can revert to the chart as a single source of truth rather than guessing from memory.
Reading different size systems
Different size systems use different reference scales, and a reliable drill bit size chart presents them side by side. Fractional inches (like 1/8) are common in DIY and woodworking; metric sizes (mm, such as 3 mm) dominate professional metalwork and many manufacturing contexts; the letter/Brad-point system is often used for wood where a sharp point helps start the hole precisely. A practical tip from Drill Bits Pro: always note the unit your drill or drill press uses and cross-check against the chart. For instance, a common starting point for many tasks is 1/8 inch (≈3.2 mm); if you’re using metric-only equipment, begin at 3 mm and adjust as needed. Keeping both representations in view reduces conversion errors and speeds up decision-making. Finally, when space is tight on a label or manual, many charts provide side-by-side columns; use those as your confidence check before drilling.
Fractional vs metric vs letter sizes: A quick comparison
Comparing the three references reveals how you’ll work with your tool. Fractional sizes are typically listed as 1/16, 1/8, 3/16, etc. Metric sizes are expressed in millimeters, such as 2.0 mm, 3.0 mm, 6.0 mm; the corresponding inches can be found on the chart as approximate equivalents. The letter/Brad-point system (A–Z) is traditionally used for wood where a sharp point helps start the hole precisely, and it complements the common wood sizes. In practice, convert across systems by using approximate equivalents (1/8 inch ≈ 3.2 mm, 1/4 inch ≈ 6.35 mm) and then validate with a caliper. Drill Bits Pro notes that for quick tasks, starting with a near-size from your chart reduces the number of trial holes. When tolerances matter—through holes for fasteners or precise dowel holes—measure with a micrometer or caliper and set the bit to the exact diameter specified by your reference sheet.
Choosing the right drill bit for common materials
Different materials respond best to specific bit types and diameters. For soft wood, brad-point bits aligned to the chart make starting holes that guide the bit and reduce wandering. For hard woods or plastics, sharp geometry and correct flute length help evacuate chips efficiently. For metals, especially steel, keep the diameter modest and select high-speed steel or cobalt bits with appropriate lubricants; never force a drill through a hard surface. The drill size chart acts as a planning tool here: it helps you pick a pilot hole that reduces stress on the material and minimizes heat buildup. Drill Bits Pro emphasizes starting with the smallest recommended diameter and stepping up if necessary, rather than forcing a larger hole from the outset.
Pilot holes and hole finishing: use of size charts in practice
Pilot holes set the stage for clean, accurate holes. The size chart guides you to choose a pilot hole that is typically a percentage of the final hole diameter—roughly 60–80% for wood and smaller percentages for dense metals. Always consider the drill point geometry: brad-point bits for wood require precise center alignment, while twist bits for metal benefit from lubrication and stable feed rates. Use the chart to decide whether a pilot hole is even necessary; in some cases a pre-drilled guide reduces wandering and error. After drilling, deburr edges and inspect diameter against your target using a caliper. This discipline prevents undersized bores that weaken joints—and it keeps your project on track.
Maintenance and record-keeping for accuracy
An up-to-date drill size chart is a living document in your workshop. Store the chart near the drill press, notebook, or digital tool library so you can quickly cross-check. Maintain a small personal reference of the sizes you actually use most often, including both fractional and metric equivalents. Replacing worn bits that deviate from the chart helps maintain accuracy; dull bits require more torque and can widen holes or cause tear-out. Drill Bits Pro suggests revisiting your chart annually alongside tool maintenance, calibrating for new bit families or specialty coatings such as TiN or TiAlN, and updating any conversions you rely on daily.
Applying the chart to typical tasks: wood, metal, plastic, masonry
Woodworking typically leverages brad-point bits and a close match to the chart’s wood sizes. For metalwork, you’ll lean on high-speed steel or cobalt bits with metric or fractional equivalents that fit the machine tooling. Plastics require sharp, clean entry—avoid overly aggressive diameters that heat and melt plastic. For masonry, you’ll need carbide-tipped bits and a hammer drill; the size chart still matters for pilot holes, but the drilling method and breakage risk shift with material hardness. Across all tasks, a consistent approach using the drill bit size chart reduces trial-and-error time and helps you select the right drill bit for the job.
Common drill bit size references by system
| System | Typical Size Range | Notes |
|---|---|---|
| Fractional inches | 1/16 to 1/2 inch (approx) | Common in woodworking and some metalwork |
| Letter/Brad-point | A to Z (approx) | Wood-specific bits with brad-point tips |
| Metric (mm) | 1.5 to 13 mm (approx) | Standard for metalworking and many consumer tasks |
Got Questions?
What is the most common drill bit size for general purpose holes?
For many wood, metal, and plastic tasks, starting with 1/8 inch or 3 mm is a practical default. Use a drill size chart to confirm exact diameters for your material and pilot hole requirements.
For most general holes, start around 1/8 inch or 3 millimeters and adjust based on the material.
How do I convert fractional sizes to metric on a drill size chart?
A few quick conversions help: 1/8 inch is about 3.175 mm, 1/4 inch is about 6.35 mm. Your chart will usually show both columns; for precise work, measure with calipers and cross-check.
Convert inches to millimeters quickly: 1/8 in is about 3.175 mm, 1/4 in is about 6.35 mm.
Why would I prefer metric sizes over fractional?
Metric sizing is standard in many professional environments and simplifies automated tooling references. If your equipment uses metric taps or milling settings, align your bits accordingly.
Metric sizes are common in professional settings and align with many machines.
Do drill size charts include pilot-hole guidance?
Yes. For wood, pilot holes prevent splitting; the size usually ranges around 60-80% of the final hole. For metal, pilot holes help with threading and lubrication. Always refer to material guides.
Pilot holes prevent splitting in wood and help tooling in metal.
Is a full drill-bit set necessary for most tasks?
A starter set covering common fractional and metric sizes (roughly 6–15 sizes) handles most projects. Expand as needed based on materials and project scope.
A small starter set covers most jobs; add sizes as your work grows.
“A well-maintained drill size chart reduces guesswork and speeds up planning, especially when switching between materials and bit types.”
Top Takeaways

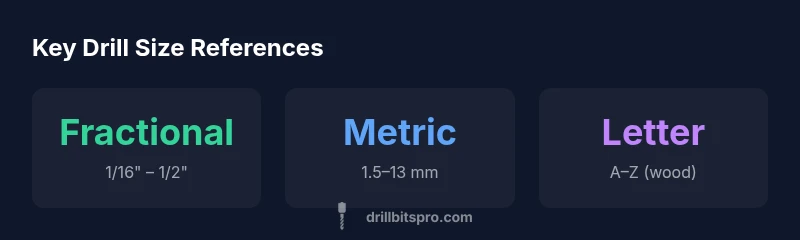

- Know the three size references: fractional, metric, and letter/Brad-point
- Use a pilot hole when drilling to reduce splitting or binding
- Match drill bit diameter to material and tool speed for best results
- Keep a ready reference chart or digital guide for quick lookups
