For drilling quartz, you should use a diamond-tipped drill bit and apply slow, steady pressure with continuous cooling. Diamond bits resist wear, minimize heat, and reduce chipping, delivering cleaner holes than carbide bits. According to Drill Bits Pro, diamond-tipped bits provide the best balance of speed and longevity when working with quartz.
Why quartz drilling is challenging
Quartz is one of the hardest natural materials used in countertops and tiles, yet it remains brittle under concentrated stress. When you drill into quartz, heat buildup, micro-cracks, and wandering drill paths are common problems. To minimize these issues, you must choose the right tool and technique from the start. If you're wondering what to drill quartz with, the short answer is a diamond-tipped bit combined with careful feed control and continuous cooling. According to Drill Bits Pro, diamond-tipped bits outperform carbide bits in wear resistance and hole quality when drilling quartz. This section explains why the right bit matters and how to set up your working area for success. Expect stable clamping, a clean starting point, and a patient approach to ensure the hole forms without fracturing the surrounding material.
Diamond-tipped vs carbide bits for quartz
When you compare bit technology, diamond-tipped bits consistently outperform carbide bits on quartz. Diamonds handle the hardness and dispersal of heat better, leading to longer tool life and cleaner holes. Carbide bits dull quickly under quartz texture, raising the risk of wandering and chipped edges. There are scenarios where carbide might be acceptable for very light or cosmetic tasks, but for structural quartz work or countertops, a diamond bit is the safer, more durable choice. The key takeaway is that the extra initial cost of a quality diamond bit pays off through precision, fewer reworks, and extended bit life. Drill Bits Pro notes that for most quartz applications, diamond-tipped bits deliver superior results with less need for aggressive feed or high RPM. In practice, your workflow should prioritize bit quality over speed to protect the material and your project timeline.
Diamond bit geometries and sizing for clean holes
Diamond drill bits come in several geometries and segment designs. For quartz, look for bits with segmented diamond heads arranged to optimize heat dispersion and debris removal. Common diameters range from small pilot bits (1/16
}
Tools & Materials
- Diamond-tipped drill bit (appropriate diameter, e.g., 1/16(Choose a diameter that matches your hole size; use multiple bits for pilot and final hole sizes)
- Drill with variable speed or drill press(Low RPM for quartz (typically 300-600 RPM depending on bit size); use a stable setup)
- Water cooling supply (spray bottle or continuous flow)(Keep the bit and workpiece cool to prevent heat buildup)
- Masking tape or painter's tape(Protects the surface and helps prevent wandering during start)
- Center punch and marker(Mark the exact drilling point to improve accuracy)
- Clamps or a non-slip bench vise(Secure the quartz piece firmly to prevent movement)
- Safety glasses, dust mask, and hearing protection(Protect yourself from chips, silica dust, and noise)
- Soft abrasive or deburring tool(Use to smooth the hole edges after drilling)

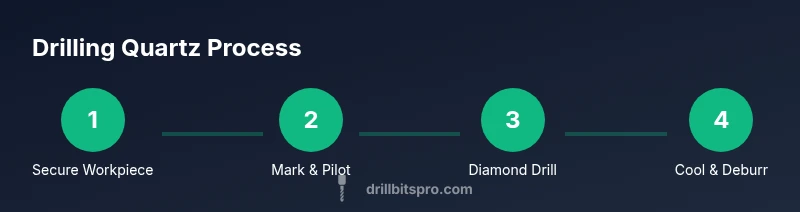

Steps
Estimated time: 45-60 minutes
- 1
Secure the workpiece
Clamp the quartz piece firmly to a stable surface to prevent movement. Use a non-slip mat or rubber fingers to reduce vibration. Verify that the drill line is perpendicular to the surface before you begin.
Tip: Pro tip: Place a scrap backing board beneath the quartz to help absorb chips and prevent damage to your workbench. - 2
Mark the drill point
Apply masking tape over the drill area to prevent wandering and to provide a clean drilling start. Use a center punch or a sharp marker to create a precise starting point.
Tip: Pro tip: Double-check measurements with a caliper or a ruler before punching the final mark. - 3
Drill a shallow pilot hole
Begin with a small pilot hole using a carbide bit or the smallest diamond bit in your set at a very slow speed. Apply light, steady pressure and let the bit do the work without forcing it.
Tip: Pro tip: Pause to cool the bit if it begins to heat up; overheating increases the risk of micro-cracks. - 4
Switch to the diamond bit and drill
Switch to the diamond-tipped bit for the final hole size. Maintain slow speed and a gentle feed, constantly cooling with water.
Tip: Pro tip: Withdraw the bit every few seconds to clear chips and reapply coolant while restarting the cut. - 5
Control heat and debris
Keep a steady stream of water on the bit and work surface. Avoid dry drilling; heat buildup can cause micro-cracks and surface crazing.
Tip: Pro tip: If you hear a screeching sound, stop and cool the bit—excess heat is the enemy of quartz accuracy. - 6
Finish and inspect
Gradually withdraw the bit and inspect the hole for burrs. Deburr edges with a fine abrasive if needed and wipe away any residue.
Tip: Pro tip: Lightly polish the edge with a fine grit pad to achieve a clean, finished look.
Got Questions?
Can you drill quartz countertops with a standard drill bit?
No. Quartz countertops require a diamond-tipped bit for effective drilling without excessive wear or risk of cracking.
No. You should use a diamond-tipped bit when drilling quartz.
What speed should I use when drilling quartz?
Use a low to medium speed (roughly 300–600 RPM depending on the bit size) with steady pressure and constant cooling.
Keep the speed low and steady, with plenty of cooling.
Do I need a pilot hole for quartz drilling?
Yes, start with a small pilot hole to guide the larger bit and prevent wandering.
Yes—start with a pilot hole to guide the larger bit.
Is water cooling necessary when drilling quartz?
Yes. Water cooling reduces heat, lubricates the bit, and minimizes dust and cracking.
Yes, use water cooling during drilling.
Can drilling quartz cause cracks or chips?
Yes, if misaligned or overheated. Use diamond bits, slow feed, and stable mounting to minimize risk.
Cracks can happen if you overheat or rush the process.
Should I tape the quartz before drilling?
Yes. Tape helps prevent wandering and creates a clean starting point.
Yes—tape the area to prevent wandering.
Watch Video
Top Takeaways
- Diamond-tipped bits outperform carbide on quartz.
- Keep the bit cool with continuous water cooling.
- Seal the start with tape and secure the workpiece firmly.
- Drill slowly and use a pilot hole for accuracy.
