What Drill Bit for Quartz: Best Options and How to Drill
Learn which drill bit to use for quartz, why diamond-tipped bits are preferred, and step-by-step tips to drill quartz safely and cleanly.
To drill quartz, use a diamond-tipped drill bit or diamond-coated core bit. Set a slow speed and low feed, keep water flowing, and apply steady, gentle pressure to avoid cracking. Start with a small pilot hole, then widen to the final diameter.
Why drilling quartz is challenging and how to plan
Quartz is a hard, brittle material with low tolerance for heat. Improper tooling can cause cracks, chips, or surface crazing. Before you pick a drill bit, map your approach: the hole size, location, and if you're working with natural quartz or engineered quartz. According to Drill Bits Pro, quartz responds best to diamond technologies due to its silica composition and resin binders in engineered slabs. The keyword question, what drill bit for quartz, is answered most reliably by a diamond-tipped or diamond-coated bit. Planning saves time and reduces waste: check tool speed, coolant availability, and bit geometry. Invest in a quality guide that minimizes wandering, keeps chips clear, and supports clean edge quality. In DIY and professional workflows, setting expectations for the hole diameter, edge finish, and plan for deburring is essential. A well-prepped drill plan reduces rework and risk of cracking.
Diamond-tipped bits: the gold standard
Diamond-tipped bits and diamond-coated core bits dominate quartz drilling because diamonds cut with less heat and wear than carbide. For natural quartz, a solid carbide bit tends to dull quickly; engineered quartz can still stress at high speeds. The essential advantage of diamond tooling is its ability to slice through silica with minimal binding resin melt. Start with small pilot holes to align the entry and reduce wandering. When possible, use a drill press or a stable router table to maintain consistent contact. Expect slower feeds, controlled speed, and frequent coolant flow to maximize life and edge integrity. The Drill Bits Pro team emphasizes using proper coolant and steady pressure to preserve the edge during a long drilling process.
Carbide-tipped bits: when they work (and when they don't)
Carbide-tipped masonry bits can bore through quartz in some light-duty cases, but they are not the preferred option for dense or engineered quartz. They tend to wear faster and can prematurely heat the material, causing micro-fractures. If you must use carbide, restrict the diameter, keep RPM very low, and ensure abundant cooling. For hobby projects or low-stress holes in soft stone composites, carbide bits may be acceptable with strict monitoring. The key is to avoid aggressive feeds and maintain a gentle, consistent pressure to prevent edge chipping.
Pilot holes and sizes: choosing the right diameter
Selecting the correct hole diameter begins with the intended final size and the bit type. For quartz, a smaller pilot hole helps guide the larger diameter bit and reduces bit wander. Use progressive drilling: start with a pilot, then advance to intermediate diameters before the final size. Always check the bit flavor: diamond bits come in different edge geometries; choose a geometry that suits your material (engineered vs natural quartz) and your drilling setup. Keep the hole wall cool and dry during progression to prevent micro-cracking.
Surface prep and clamping: securing the workpiece
Quartz workpieces must be firmly secured to prevent movement. Use a stable bench vise or clamps with soft jaw covers to prevent marring. Masking tape on the entry face helps keep the entry clean and reduces edge chipping by distributing contact. Mark the exact spot with a center punch and verify with a ruler or calipers. A well-secured, clean surface reduces wandering and yields a more precise hole.
Drilling technique: speeds, feeds, and cooling
Drilling quartz requires slow rotation and a light touch. Start at very low RPM and feed rate, applying steady but minimal pressure; too much force causes heat buildup and cracks. Water or a dedicated coolant must flow continuously to keep the bit and workpiece cool. If you notice smoke or resin melt around the entry, pause to cool and re-evaluate. A stable, well-supported setup with a dedicated diamond bit yields the best results and longer bit life.
Post-drilling care: deburring and sealing
After drilling, gently deburr the entry hole with a small file or diamond stone to remove sharp edges. Clean the surface and inspect for chips or micro-fractures around the hole. If this is a countertop installation, seal the edges as required by the adhesive system and ensure a smooth edge for mounting hardware. Proper deburring and cleaning protect the surrounding surface and improve installation reliability.
Common mistakes to avoid
Avoid using high-speed spins or heavy cutting pressure that cause heat spikes and cracking. Do not skip lubrication or cooling, as heat accelerates edge wear and resin soften issues in engineered quartz. Do not disregard safety guidelines; always wear eye protection and a dust mask when drilling stone materials. Also, avoid dry drilling without coolant, which dramatically raises risk of damage and dust.
Practical example: real-world workflow
In a real job, you may need multiple holes in engineered quartz for fixtures. Start with a 1/8-inch pilot hole and gradually step up to the final diameter with diamond bits. Maintain a steady dribble of water and inspect each edge after finishing a hole. Document bit wear and plan replacements to minimize downtime on the job site.
Tools & Materials
- Diamond-tipped drill bits(Assorted sizes from 1/8" to 1/2"; use for final holes.)
- Diamond-coated core bits(For larger diameter holes; choose appropriate shank size.)
- Center punch(Marks precise center; prevents wandering.)
- Masking tape(Helps define entry and reduces chipping.)
- Clamps or a bench vise(Keeps the workpiece secure.)
- Low-speed drill or drill press(Variable speed preferred for control.)
- Coolant water spray bottle or continuous water supply(Keeps bit and quartz cool; reduce heat transfer.)
- Safety gear (goggles, gloves, dust mask)(Protects eyes, hands, and lungs.)
- Calipers or ruler(Verify hole size during drilling.)
- Soft-jaw pads or cork under clamps(Prevents surface marring.)

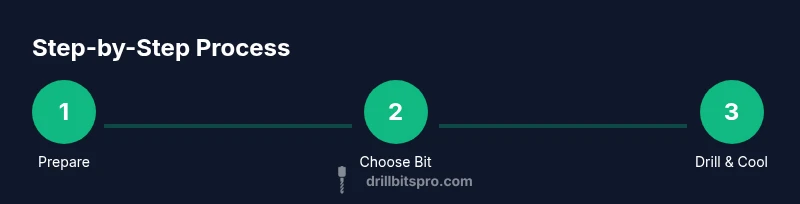

Steps
Estimated time: 60-120 minutes
- 1
Prepare and mark the entry
Clear the area. Apply masking tape, mark the center with a punch, and verify location with a ruler. This reduces wandering and chips during entry.
Tip: Double-check your measurement before drilling. - 2
Secure the workpiece
Clamp the quartz firmly to prevent movement. Use soft jaw pads to prevent marring the surface.
Tip: Tighten clamps evenly to avoid slippage. - 3
Install the correct bit and coolant
Mount a diamond-tipped bit appropriate for the final hole size and prepare a coolant source. Ensure it reaches the entry point.
Tip: Verify bit seating and runout before starting. - 4
Begin drilling with low speed and light feed
Start at the lowest RPM with minimal pressure; keep a steady hand and avoid pushing hard.
Tip: Pause to cool if you see smoke or resin melt. - 5
Progressively enlarge to final diameter
Advance in small steps, pausing to cool and check edges between steps. Deburr if needed after finishing the final size.
Tip: Maintain even, slow progression to reduce edge chipping. - 6
Finish and inspect
Deburr the entry, clean any residue, and inspect the hole for cracks or rough walls.
Tip: Document any wear and plan bit replacement.
Got Questions?
What drill bit is best for quartz?
Diamond-tipped or diamond-coated bits are the best option for drilling quartz due to low heat generation and edge wear. Carbide bits can work in some situations but are not ideal for dense quartz.
Diamond bits are the best choice for quartz drilling; carbide bits are a rough fallback in limited cases.
Can I drill engineered quartz countertops safely?
Yes, with a diamond bit and proper coolant, but avoid high speeds and heavy pressure to prevent resin melt and micro-fractures.
Yes, use a diamond bit and keep it cool to avoid damage.
What speeds should I use when drilling quartz?
Use very slow RPM and light feed; speed control is essential to prevent overheating and cracking.
Drill slowly and keep it cool to protect the quartz.
Do I need to drill a pilot hole first?
Yes, a small pilot hole guides the larger bit and reduces wandering, leading to cleaner results.
Start with a small pilot hole to guide the larger bit.
Is it safe to drill quartz without water?
Dry drilling increases heat and the risk of cracks; always use water or coolant when drilling quartz.
Avoid dry drilling; always use coolant.
What common mistakes cause cracks?
High speeds, heavy pressure, and lack of cooling are the main causes of cracks when drilling quartz.
Heat and pressure without cooling cause cracks.
Watch Video
Top Takeaways
- Diamond bits are the preferred option for quartz.
- Use water cooling and slow speeds to prevent cracks.
- Pilot holes and progressive sizing reduce wandering.
- Secure the workpiece to avoid movement during drilling.
- Deburr and inspect the finished hole for edge quality.
