Do You Need to Pre Drill Tapcons? A Practical Guide
Learn whether you need to pre drill Tapcon anchors, how to choose the right pilot hole size, and a safe, step-by-step method to install Tapcons in concrete for reliable, long-lasting mounting.
Do you need to pre drill Tapcons? For most concrete installations, yes—the pilot hole size and depth should match the Tapcon fastener so the threads can engage properly. According to Drill Bits Pro, selecting the correct pilot hole and drilling cleanly reduces stripping and ensures solid embedment. Always follow the manufacturer’s guidance and use sharp masonry bits for best results.
Why pre-drilling matters for Tapcon anchors
Do you need to pre drill Tapcons? In most concrete applications, the answer is yes. The pilot hole acts as a guide for the anchor’s threads, ensuring they bite cleanly into the substrate rather than skidding along a hard surface. When the hole is too small or too shallow, you risk cross-threading, stripped threads, or shallow embedment that compromises holding power. According to Drill Bits Pro, a well-prepared hole reduces resistance during installation and improves long-term performance. The result is a secure anchor that resists pull-out and shear under load. A common scenario is mounting a heavy shelf or electrical box to a masonry wall—skipping the pilot hole here can lead to wobble, cracking, or the need to redo the work. The key takeaway is that hole preparation, using the right bit and proper depth, is as important as the Tapcon itself for dependable results.
Understanding the role of the pilot hole in Tapcon installations
Tapcon anchors rely on threads cut into the concrete or masonry. The pilot hole size must accommodate the anchor’s thread pattern while providing enough material for the threads to engage. If the hole diameter is oversized, the anchor may not grip, resulting in reduced holding power. If the hole is undersized, the threads can shear or become damaged during installation. The goal is to create a clean entry path that allows the Tapcon to thread in evenly and achieve full embedment without excessive stress on the surrounding material. Cleanliness matters, too: dust and debris inside the hole can prevent the threads from seating properly and can masquerade as a proper anchor when, in fact, the fit is sloppy. In practice, you’ll verify hole diameter and depth against the manufacturer’s specifications before drilling.
How manufacturer guidance shapes your drill choices
Tapcon manufacturers publish recommended pilot hole sizes for each screw diameter and length. These guidelines are designed to balance ease of installation with maximum grip. When you ask, do you need to pre drill Tapcons, the short answer is: follow those recommendations closely. Use a masonry drill bit rated for concrete, depth-stop or tape to mark embedment depth, and a drill with steady torque to avoid wandering or wobble. If you’re working in brick or hollow-block masonry, the recommended hole size can differ from solid concrete; always check the packaging for the exact spec and note any variances for your material. Staying aligned with these specs improves reliability and reduces the likelihood of the fastener loosening over time.
Tools and cleanliness that improve results
Even with the right hole, poor technique can undermine performance. Clear the drilled hole of concrete dust before inserting the Tapcon; dust can prevent the threads from seating fully. Use a brush or compressed air to clean the hole and vacuum nearby debris. A clean hole allows the screw to engage material evenly, which reduces heat and friction during driving and limits the risk of thread damage. Finally, ensure you’re using the correct tool to drive the Tapcon—an impact driver or drill with a clutch can provide controlled torque, helping you avoid over-tightening.
A practical note on material and loads
Concrete varies widely in density and composition, which affects how deeply the Tapcon must engage. Softer concretes may compress slightly under load, so the embedment depth becomes critical; harder concretes require precision to avoid over-breakout at the hole rim. If you’re mounting something lightweight, the pilot hole can be shallower; for heavy fixtures, you’ll want to ensure the depth allows full thread contact and proper pull-out resistance. In all cases, verify the hole dimensions against the manufacturer’s published data and test a sample hole with a spare Tapcon in a similar material to gauge fit before proceeding with the full installation.
Tools & Materials
- Tapcon screws (masonry anchors)(Select diameter/length per manufacturer guidance for your load and base material)
- Masonry drill bits (carbide-tipped)(Use the size specified by the Tapcon packaging for pilot holes)
- Hammer drill or rotary hammer(Needed for dense concrete; ensure a safe setting and bit is securely seated)
- Depth stop or tape(Marks embedment depth to prevent over- or under-driving)
- Brush or compressed air(Clean the hole of dust before inserting Tapcon)
- Safety gear (eye protection, gloves, dust mask)(Protect yourself from debris and dust inhalation)
- Cordless drill/impact driver with correct bit(Provides controlled torque to avoid over-tightening)

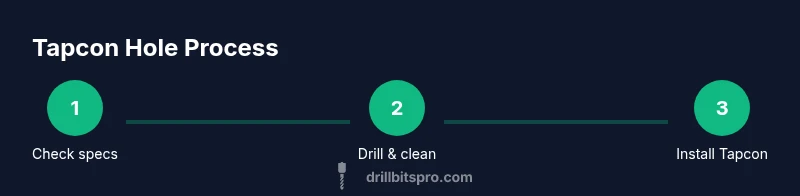

Steps
Estimated time: 25-40 minutes
- 1
Verify manufacturer spec
Check the Tapcon packaging for the exact pilot hole size and embedment depth for your screw and base material. Confirm the material type (solid concrete, brick, or hollow masonry) to ensure you choose the correct hole size and depth. This initial step prevents wrong hole dimensions that could compromise the install.
Tip: If in doubt, test a hole on a scrap piece of the same material to confirm fit before drilling into your project. - 2
Mark hole locations
Measure and mark where each Tapcon will go. Use a center punch or a light tapping to create a small indentation to guide the bit and prevent wandering. Double-check spacing and alignment, especially for multiple anchors or fixtures.
Tip: Use a template or a level to keep holes evenly spaced and aligned. - 3
Drill pilot holes
Set your depth stop to the embedment depth specified by the manufacturer and drill straight into the material. Maintain steady pressure and avoid tilting the bit to prevent angled holes that can reduce holding power.
Tip: Clear dust from the hole after drilling to ensure clean threads when you insert the Tapcon. - 4
Clean holes
Use a brush or compressed air to remove dust from each hole. A clean hole ensures the Tapcon threads engage properly and improves grip reliability.
Tip: If dust is difficult to remove, a quick vacuum can help eliminate loose debris before driving the screw. - 5
Install Tapcon
Insert the Tapcon into the hole and drive it using a drill or impact driver with a controlled, steady torque. Stop when the head is seated and the screw is snug against the surface, avoiding over-tightening that could strip threads.
Tip: If the screw binds early, back out, re-align, and start again with a fresh hole. - 6
Inspect and repeat
Check each fastener for proper seating and ensure the fixture is stable. If movement is detected, re-check alignments or consider longer embedment only if recommended by the manufacturer for the material.
Tip: Keep notes of hole sizes used and any adjustments for future projects.
Got Questions?
Do you need to pre drill Tapcons for all concrete types?
In most solid concrete installations, yes. The need can vary with brick or hollow masonry, so always check the Tapcon packaging for material-specific guidance.
Yes, for most solid concrete you pre drill, but check the packaging for brick or hollow masonry guidance.
Are special drill bits required for Tapcons?
Yes. Use the masonry bit size specified by the Tapcon manufacturer, typically carbide-tipped bits meant for concrete, to achieve clean holes and proper embedment.
Yes. Use the exact masonry bit size recommended by the manufacturer for clean holes and strong grip.
What happens if the pilot hole is too deep or too shallow?
If the hole is too deep, the Tapcon may not engage correctly and could loosen. If too shallow, the threads may not fully seat, reducing load capacity.
Too deep or too shallow holes can both reduce grip; follow embedment depth from the manufacturer.
Can I reuse existing Tapcon holes?
No. Reusing holes can weaken the grip and compromise the anchor’s load capacity because the material around the threads may have been deformed.
Avoid reusing holes; deformed material can’t hold as well.
What safety steps should I take during drilling?
Wear eye protection, use a dust mask, and ensure the drill is secured and controlled to prevent kickback or slips.
Wear safety gear and secure the drill to avoid accidents.
How can I verify that the Tapcon is installed correctly?
Check that the head sits flush and the fixture is secure with no wobble. If you see movement, recheck hole size, depth, and torque.
Ensure the head is flush and the fixture is solid; recheck if any wobble is present.
Watch Video
Top Takeaways
- Follow manufacturer pilot hole specs for Tapcons.
- Prepare and clean holes before inserting anchors.
- Use proper tooling to control torque and depth.
- Verify alignment and test-fit before final mounting.
- Prioritize safety and material-specific guidance.
