How to Fit Drill Bit in a Drill Machine

How to fit drill bit in drill machine: a practical overview

In the realm of DIY drilling, knowing how to fit drill bit in drill machine correctly forms the cornerstone of accuracy and safety. According to Drill Bits Pro, the topic centers on choosing the right holding system, selecting a bit with the appropriate shank, and maintaining clean seating surfaces. A common pitfall is mismatching shank size with the chuck capacity, which can cause bit slippage, poor hole quality, or accelerated wear. This practical overview walks you through the core concepts—understanding chuck types, assessing shank compatibility, preparing the tool and workpiece, and executing the seating sequence with care. You’ll gain a clear view of why alignment matters and how to approach setup as a deliberate, repeatable habit. The Drill Bits Pro team found that quick, correct setup reduces setup time on ongoing projects and helps maintain consistent results across different materials. Throughout, expect practical tips, real-world examples, and safety reminders that keep your hands away from the spinning bit while you learn. These fundamentals apply whether you're using a handheld drill, a plug-in model, or a bench-mounted drill press, and they adapt to common bit families such as twist bits, auger bits, and spade bits. Starting from a safe, clean work area helps you observe how the bit seats and eliminates surprises during the first cut.

Chuck types and shank compatibility for how to fit drill bit in drill machine

Different holding systems exist, and your choice directly affects how to fit drill bit in drill machine. A keyed chuck uses a separate tool—the chuck key—to clamp the jaws around the bit. A keyless chuck relies on aggressive friction and a tight grip when you rotate the body. Collets, common in machine tools, offer precise diameter control when you need high concentricity. Each system interacts with the bit shank differently, so matching shank to the holding method is essential.

The decision to use a keyed, keyless, or collet approach depends on the job and the tool. For heavy, metal drilling where accuracy is paramount, a robust keyed chuck often provides reliable clamping and reduces runout when paired with a compatible bit. For lighter tasks in wood or plastic, a high-quality keyless chuck may be enough, provided the jaws close evenly and maintain consistent grip. When you work with a drill press, a collet or properly sized chuck can improve repeatability for multiple holes.

Shank compatibility is about diameter and shape. A round shank fits most standard chucks, but some bits use specialized forms that require specific collets or adapters. Always verify the chuck’s stated range and the bit’s shank diameter before seating. The goal is a perfectly square seating so the bit does not tilt or wander during the cut. When in doubt, refer to the user manual for exact compatibility notes and avoid forced seating that could damage the chuck or bit.

Preparation and seating: preparing for insertion

Preparation starts with a clean, well-lit workspace. Remove dust from the chuck jaws and bit shank with a lint-free wipe, and inspect the bit for nicks or deformation. A damaged edge can wander or chip, degrading hole quality and wearing the bit faster. If you’re using a wooden workpiece, consider marking the spot with a center punch to guide the cut; for metal, scoring the starting point helps maintain alignment. Ensure the chuck is open wide enough to accept the bit shank, and that the workpiece is secured with clamps or a vise to prevent movement during seating. Safety glasses should be worn at all times, and hair or loose clothing must be secured away from the rotating chuck. Finally, verify that the drill is in the correct mode for the task (rotation only vs hammer when appropriate) to avoid inadvertent action that could loosen the bit during seating. By taking these preparatory steps, you reduce the risk of misalignment and improve overall drilling performance.

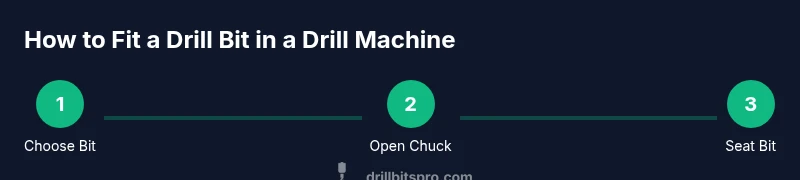

Insertion and clamping techniques for a secure fit

With the tool powered off, open the chuck fully and insert the bit shank until it seats against the back of the chuck. For keyed chucks, keep the key nearby for a controlled tightening sequence; for keyless chucks, grip and rotate the chuck body to secure. Center the bit so it sits perpendicular to the work surface, then apply even tightening pressure until the jaws grip the shank firmly. A common mistake is over-tightening, which can deform the jaw geometry or strip the bit shank. After tightening, gently tug on the bit to confirm it is locked in place. If your drill has a built-in torque or speed setting, select a lower setting for the initial test to reduce the chance of overloading the bit. When using a drill press, ensure the quill is locked and supported to prevent chatter during seating. Once seated, perform a light test on scrap material to confirm the alignment and seating quality before proceeding with your project.

Safety, maintenance, and troubleshooting for long-term performance

Regular maintenance is essential to keep the chuck functioning well. Clean the jaws after each use and inspect for wear or burrs that could reduce grip. If the bit wobbles despite proper seating, reseat or try a new bit, and inspect the chuck for damage or wear. Avoid lubricants inside the chuck; if necessary, apply only a tiny amount to moving metal parts away from the gripping surfaces. For heavy or repeated use, periodically replace worn chucks or collets and keep spare bits on hand to avoid delays. When encountering stubborn seating, verify the shank diameter against the chuck’s range and check for dirt or corrosion on the bit shank or inside the chuck jaws. As a best practice, store bits in their original packaging or a dedicated case to prevent bending and corrosion. If in doubt, consult the tool’s manual or seek guidance from a trusted source such as Drill Bits Pro.
