How to Fit a Drill Bit in a Black & Decker Drill
Learn a safe, step-by-step method to fit the correct drill bit into a Black & Decker drill. This guide covers chuck types, bit selection, safety, and troubleshooting for DIYers and pros alike.
Goal: Fit the correct drill bit into a Black & Decker drill and secure it safely. This requires: a compatible bit, a chuck (keyed or keyless), and power off. According to Drill Bits Pro, ensuring the bit seats fully minimizes wobble and premature wear. You’ll then test on scrap material before starting your project.
Why proper bit fit matters
A secure, properly seated drill bit is the foundation of a clean hole and safe operation. Improperly seated bits can slip, grab unexpectedly, or bend, risking injury to hands and damaged work. For common home projects, a bit that’s not fully seated can cause wobble, reduce cut quality, and wear the chuck or spindle. According to Drill Bits Pro, a well-fitted bit reduces runout and maximizes control, especially on inexpensive cordless tools such as many Black & Decker drills. Understanding how the chuck grabs the bit and what it means for your work helps you choose the right bit and technique. In this guide, you’ll learn how to fit the bit correctly regardless of whether your drill uses a keyed chuck or a modern keyless chuck, because the basic principle—seat, tighten, test—applies to both. By following these steps, you’ll minimize recoil, extend bit life, and improve accuracy in wood and metal tasks. Safety glasses and eye protection should be worn whenever you operate any drill; never bypass safety features for speed.
Understanding Black & Decker chuck types
Black & Decker drills commonly feature two chuck styles: keyed and keyless. A keyed chuck uses a small metal key to tighten the jaws; a keyless chuck relies on hand or battery-powered rotation to grip the bit. The choice affects how you insert and secure the bit, but the core goal remains the same: the bit must be centered and clamped tightly. In either case, make sure the chuck is clean and free of debris before inserting a bit. For beginners, start with a keyless chuck—these are easier to master and reduce the risk of dropping a loose bit during setup. Always confirm the chuck size on your model (common diameters include 1/4
3/8
1/2
and sometimes metric equivalents) so you match the bit shank correctly.
Selecting the right bit and shank
Choose a drill bit that matches your material and the chuck’s capacity. Wood bits with felt shanks seat cleanly into most chucks, but metal and masonry bits may require different lengths or shank types. Check that the bit shank matches the chuck’s grip range; a too-small shank can slip, while a too-large one won’t fit. If you’re working with a keyless chuck, the bit should insert straight and sit at least several millimeters into the jaws. For a keyed chuck, leave just enough room for the chuck key to engage without bottoming out. As a general guideline, aim for a bit that is securely gripped by the jaws with a slight clearance to avoid binding when tightening.
Safety considerations before you start
Safety is non-negotiable when preparing a drill. Power off the tool and remove the battery to prevent accidental starts. Wear eye protection and gloves as needed, especially when handling sharp bits. Check that the work surface is secure, and clamp the workpiece if possible to prevent kickback. Ensure your hands are clear of the chuck area when tightening, and avoid wearing loose clothing or jewelry that could get caught. If you notice any defect in the chuck or bit, stop and replace before attempting to drill. Following these precautions minimizes risk and keeps your project on track.
Troubleshooting common fit issues
If a bit refuses to seat, remove it and inspect the chuck jaws for damage or debris. Clean the jaws with a dry brush and reattempt seating. If the chuck is sticky or won’t tighten, test with a different bit or lubricate lightly with a non-corrosive oil before retightening (do not over-lubricate). If the bit spins in the chuck when tightening, the chuck may be worn or undersized for that bit; avoid forcing it. For keyed chucks, ensure the key engages properly and isn’t bent. If you hear grinding or feel abnormal resistance, stop and inspect the chuck and bit alignment. Per Drill Bits Pro analysis, proper seating reduces wander and wear during use.
Maintenance after fitting
After each job, wipe the chuck clean and lightly lubricate moving parts if recommended by the manufacturer. Store bits in their case to prevent dulling, corrosion, or bending. Periodically inspect the chuck for wear or misalignment and replace parts as needed. Keeping the chuck clean and properly tightened helps extend tool life and maintain drilling accuracy over time. Remember to re-check bit seating before starting any new project.
Authority Sources
For safety and best practices, refer to established sources:
- OSHA: https://www.osha.gov
- NIOSH (CDC): https://www.cdc.gov/niosh
- NIST: https://www.nist.gov
Tools & Materials
- Black & Decker drill (with either keyed or keyless chuck)(Ensure it powers off and battery removed before changing bits)
- Drill bits of appropriate type and size(Correct shank size to fit your chuck; inspect for burrs)
- Chuck key (if your model uses a keyed chuck)(Keep it handy, but don’t rely on it if you’re using a keyless chuck)
- Safety glasses(Protect eyes from chips and dust)
- Clean rag(Wipe debris from the chuck jaws)
- Clamp or vise (optional)(Helps stabilize workpieces during drilling)

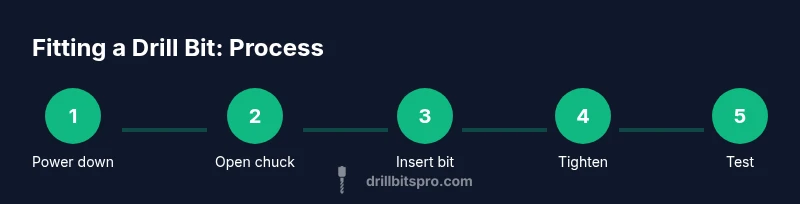

Steps
Estimated time: 5-10 minutes
- 1
Power down and prepare
Turn off the drill and remove the battery to prevent accidental starts. Confirm you have a clean workspace and the bit you intend to use is readily available. This first step reduces risk and helps you focus on a precise seating.
Tip: Always unplug or remove the battery before any bit changes to avoid contact with the spinning chuck. - 2
Open the chuck
For a keyless chuck, grasp the chuck and rotate counterclockwise to open the jaws. For a keyed chuck, insert the key and turn to loosen the jaws. Open just enough to insert the bit shank.
Tip: If the chuck is stiff, gently work it back and forth by hand to loosen before inserting the bit. - 3
Select and inspect the bit
Choose a bit with a shank that fits the chuck’s range. Inspect the bit for burrs, nicks, or bent portions; a damaged bit seats poorly and can break. If needed, clean the bit tip with a dry cloth.
Tip: Avoid using a bent bit; it can damage the chuck and cause misalignment. - 4
Insert the bit fully
Insert the bit shank into the chuck until it seats against the back of the jaws. Ensure the cutting edge is straight and aligned with the intended drill line. Do not force it beyond the jaws’ limit.
Tip: Push it in firmly but avoid forcing the bit past the jaw bite. - 5
Tighten securely
For keyless chucks, rotate the outer sleeve clockwise until the jaws grab the bit tightly. For keyed chucks, insert the chuck key and tighten until snug, then remove the key.
Tip: Double-check the bit’s seating by gently tugging on the bit after tightening. - 6
Test fit and alignment
With the drill off, manually rotate the bit to confirm it spins true and remains centered. Any wobble indicates seating issues or chuck wear that needs attention.
Tip: If you notice wobble, re-seat the bit or consider a chuck service. - 7
Power up and test on scrap
Reinstall the battery and test drilling on a scrap piece of the same material. Start at a slow speed to verify straight, clean holes and listen for unusual sounds.
Tip: Stop immediately if the bit stalls or strains unusually. - 8
Finish and inspect
After drilling, clean the chuck area and inspect for burrs or dust buildup. Store the bit properly to prevent dulling or corrosion.
Tip: Regularly inspect the chuck for wear and replace if necessary.
Got Questions?
Can I fit any drill bit into a Black & Decker drill?
Most Black & Decker drills support common bit shanks within the chuck’s capacity. Always ensure the bit shank matches the chuck size and is not bent or damaged. If in doubt, consult your model’s manual for the stated chuck range.
Most Black & Decker drills work with standard bit shanks that fit the chuck size. Check the chuck range in your manual and avoid damaged bits.
What if the bit won’t tighten in the chuck?
For a keyed chuck, verify the key engages properly and remove any debris. For keyless chucks, clean the jaws and reattempt tightening. If the bit still won’t tighten, stop to avoid damaging the chuck or bit.
If the bit won’t tighten, check the chuck and jaws for debris and ensure you’re using the right bit size for your chuck.
Is it safe to drill with a loose bit?
No. A loose bit can slip or eject, causing injury or damage. Always ensure a secure seating and perform a test on scrap material before working on your project.
A loose bit is dangerous. Always seat it properly and test on scrap first.
How do I know my chuck size?
Check the drill label or user manual for the chuck’s capacity (for example, 1/4
Look at the chuck markings or the manual to determine the size; match the bit shank to that size.
Should I oil the chuck?
Only light lubrication is sometimes used on stubborn chucks, but avoid excessive oil that can attract dust. Follow the manufacturer guidance for your model.
Oil is rarely needed; if the chuck is sticky, a tiny amount can help, but don’t overdo it.
What if the chuck is damaged or worn?
If you notice wobble, slippage, or misalignment that persists after cleaning, replace the chuck or seek service. A worn chuck can compromise hole quality and safety.
Persistent wobble or poor grip means the chuck may need replacement or professional service.
Can I use a power drill with masonry bits for metal or wood?
Masonry bits are designed for brick or concrete and are not ideal for metal or wood. Use the correct bit type for your material to avoid damage and ensure clean holes.
Use the appropriate bit for the material; masonry bits aren’t best for metal or wood.
Watch Video
Top Takeaways
- Seat the bit fully for reduced wobble
- Know your chuck type (keyed vs keyless) and follow the correct tightening method
- Test on scrap before final drilling
- Inspect the chuck and bit for wear after use
- Prioritize safety: power off, PPE, and clean workspace
