Drill Tap Guide: Precision in 6 Steps

What is a drill tap and when should you use it?

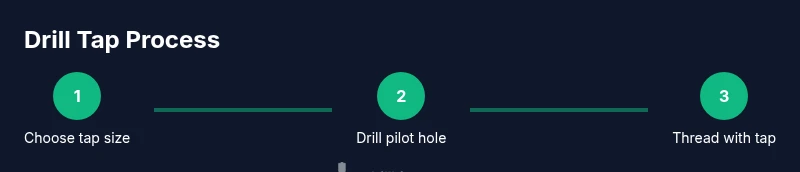

A drill tap is a combined tool or a coordinated process used to create threaded holes in one or two operations. It is particularly convenient for softer metals, certain plastics, or quick turnaround jobs where the goal is to minimize setup time while still achieving usable threads. The drill tap workflow begins with selecting a pilot hole size that corresponds to the intended thread, then progresses through drilling, deburring, and finally cutting the threads with care. For DIY enthusiasts and professionals, understanding the balance between drill size, pitch, and lubrication is essential for predictable results. According to Drill Bits Pro, choosing the right size and material compatibility is the first step toward reliable threads, and practicing on scrap pieces helps you build confidence before working on a precision part. This section lays the groundwork for success by clarifying terminology and outlining common use cases for drill taps in metal and wood projects.

In practice, you’ll encounter two main approaches: using a dedicated drill tap tool that combines drilling and tapping in one motion, or performing drilling and tapping as separate steps with a standard tap and corresponding tap wrench. Both approaches demand strict attention to drill size, hole alignment, and flute clearance to avoid binding or breakage. As you gain experience, you’ll develop a feel for how different materials behave when threaded and how cutting oil or lubricant can dramatically improve thread quality and tool life.

Finally, keep in mind that metal thickness, access, and the material’s toughness influence the choice of drill tap approach. Lighter workpieces may benefit from a one-step drill-tap method, while critical aerospace-grade parts typically require separate, controlled steps with precise measurement.

Selecting sizes: drill vs tap size and pitch

Choosing the right drill size is the single most important decision in the drill tap workflow. The pilot hole diameter must be carefully matched to the target thread size and pitch; getting this wrong can lead to loose threads, cross-threading, or a seized tap. Start by locating the tap’s size and pitch specification, then select a drill bit that yields a pilot hole just under the final minor diameter. To approximate this, many builders use a chart or tool that translates the tap size into a recommended pilot diameter. Material type also matters: aluminum tolerates a slightly larger pilot, while steel requires tighter control and perhaps lubrication to prevent galling. In some cases, a drill tap set is helpful because it provides a family of sizes that align with standard thread forms.

Hobbyists often wonder if the same rule applies across metals and plastics. The general principle holds, but plastics benefit from slower feeds and more conservative diameters to avoid cracking. Drill Bits Pro analysis shows that using a high-quality drill bit with a sharp edge, plus proper lubrication, improves hole roundness and thread engagement. When in doubt, practice on scrap pieces to verify your chosen drill size produces clean, buildable threads.

Basic setup and alignment for accurate tapping

Stability is the key to clean threads. Secure the workpiece in a vise or jig with a backing material to prevent marring. Use a center punch to mark the hole center, then align your drill bit with the punch mark. If you’re using a dedicated drill-tap tool, ensure it is correctly set for your target thread and material. Always verify that the drill axis is perfectly perpendicular to the work surface to avoid skewed threads. Lubrication is essential; apply cutting oil or lubricant to the drill bit and tap to reduce friction and heat buildup during cutting. During drilling, maintain a consistent feed rate and avoid sudden starts or stops that can deflect the bit. After drilling, deburr and chamfer the hole edge to reduce interference when the tap begins cutting.

This alignment discipline pays dividends in both metal and wood applications. For metal, a slight wobble can quickly ruin a hole, while wood can compress and close out the threads if the hole is misaligned. A quick test on a scrap piece helps confirm that the setup remains stable before you commit to the final workpiece.

Common mistakes and how to avoid them

The most frequent errors in drill tap projects involve neglecting lubrication, incorrect drill size, and poor alignment. Forgetting lubricant speeds wear and heat generation, which can dull bits and break taps. Choosing too large of a pilot hole results in under-cut threads that won’t hold screws. Conversely, an undersized pilot hole creates excessive resistance that may stress or snap the tap. Misaligned drilling leads to off-center threads that do not engage properly with fasteners. Deburring is often skipped, which can cause binding during tapping or cross-threading. Finally, attempting to tap very hard materials without a stronger tool or proper lubrication can cause tool breakage and irreparable damage to the workpiece.

Plan for the process, double-check settings, and keep a clean work area. If the hole looks rough after drilling, re-drill on scrap or ream slightly to improve tolerances.
