Drill for a 1/4-20 Tap: A Practical Step-by-Step Guide
Learn a practical, field-tested method to drill for a 1/4-20 tap with clean threads. This guide covers hole sizing, pilot holes, lubrication, tapping technique, and post-process checks for steel, aluminum, and other metals.
This guide explains how to drill for a 1/4-20 tap, including selecting the correct drill size, preparing the workpiece, and tapping threads cleanly. You’ll need a drill/press, center punch, drill bits, cutting fluid, a 1/4-20 tap and tap wrench, a drill vise, and PPE. Follow the step-by-step process for precise, durable threads.
Hole Size Fundamentals for 1/4-20 Threads
When you plan to drill for a 1/4-20 tap, the hole size matters more than the tap itself. The goal is to create a hole that is large enough to let the cutting edges form threads without excessive friction, yet small enough to maintain material strength. In practice, this means understanding the relationship between the pilot hole diameter and the finished thread. According to Drill Bits Pro, the efficiency of the tapping process hinges on precise hole sizing and proper lubrication. This starts with selecting the right pilot hole based on material type and the nominal thread standards. As you work, check that your hole is perpendicular to the surface and free of burrs. Lubrication is not optional; it reduces heat, minimizes tool wear, and yields cleaner threads. Drilling for a 1/4-20 tap is a common task in metalworking and DIY projects, but it benefits from careful planning and consistent technique. Drill alignment and stepwise progress matter more than raw speed, especially when penetrating harder metals. In short, the hole size sets the stage for a reliable, long-lasting threaded joint.
Material considerations can shift optimal hole size. Steel often accepts a slightly smaller pilot hole than aluminum due to hardness differences. Keep your drill speed moderate to reduce heat buildup, and avoid aggressive feeds that can widen the hole or cause chatter. Quick, rough approach jobs tend to lead to misaligned taps and cross-threading, which you want to avoid at all costs. Drill Bits Pro Analysis, 2026, emphasizes that success starts with a clean, correctly sized hole and ends with precise tapping.
For steel, aluminum, and mixed-material parts, verify the recommended pilot hole using a tapping chart and your material’s properties. If you’re unsure, practice on scrap pieces to confirm that the hole accepts the tap smoothly and the threads engage cleanly without skipping or binding.
Tools & Materials
- Drill press or power drill(For perpendicular holes; use a drill press if precision is critical.)
- Center punch(Create a small dimple to guide the drill.)
- Pilot drill bits (correct size for 1/4-20 tapping)(Refer to material chart; start with a clean, sharp bit.)
- 1/4-20 tap(High-quality steel or carbon steel; keep clean.)
- Tap wrench(To apply steady rotation and controlled torque.)
- Cutting fluid or tapping lubricant(Reduce friction and heat; use sparingly.)
- Workholding (vise or clamps)(Keep the workpiece secure and square.)
- Calipers or a depth gauge(Verify depth and ensure full thread engagement.)
- Deburring tool or knife(Remove burrs after drilling to prevent binding.)
- Safety glasses and gloves(Personal protective equipment.)
- Chip brush or vacuum(Clean debris during the process.)

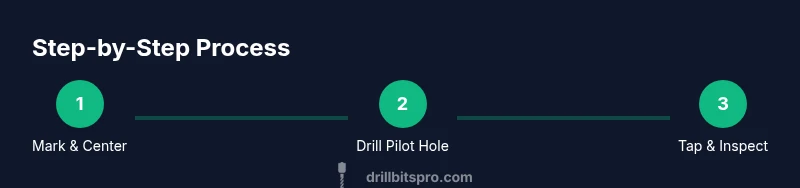

Steps
Estimated time: 30-60 minutes
- 1
Secure and mark the workpiece
Clamp the part firmly to a stable surface. Mark the drilling point with a center punch to create a precise indentation that guides the drill bit. Verifying alignment before any cutting reduces the risk of misaligned threads and the need to rework the hole.
Tip: Ensure your clamps cannot shift; a small movement ruins thread alignment. - 2
Select and drill the pilot hole
Choose the pilot hole size specified for your 1/4-20 tap and material. Align the bit with the punch mark and drill straight through the surface, maintaining a steady feed rate to minimize wandering. Periodically cool the workpiece if drilling hard metals.
Tip: Use a drill press for best perpendicular results. - 3
Deburr and verify depth
Deburr the hole rim to remove any chipping. Check depth with a depth gauge or a marked drill bit to ensure the hole can fully accommodate the threads. A shallow hole will bind the tap; too deep can weaken the joint.
Tip: Depth stops on the drill bit help maintain consistent depth. - 4
Apply lubrication and align the tap
Apply a light film of cutting oil or tapping lubricant to the pilot hole and the tap’s threads. Align the tap perpendicular to the work surface to avoid cross-threading, then start turning with 1:1 hand-to-tap motion.
Tip: Keep the tap square to the surface to prevent crooked threads. - 5
Begin tapping with steady pressure
Turn the tap clockwise smoothly, applying light, even pressure. Do not force it; if you meet resistance, back off slightly, re-lubricate, and realign before continuing.
Tip: Back off after a few full turns to break and clear chips. - 6
Continue to full thread depth
Maintain steady rotation until the tap reaches the required depth. If tapping blind holes, use a depth gauge to stop at the correct distance to avoid breaking the tap.
Tip: Periodically back-turn a quarter to relieve chip buildup. - 7
Remove and inspect the tap and hole
Carefully reverse the tap to avoid wrench-induced binding. Clean the threads and inspect with a small thread gauge or plug gauge to confirm proper engagement.
Tip: Wipe lubricant and chips away for an accurate assessment. - 8
Post-process care and storage
Clean the hole and tool, apply a light protective coating if needed, and store taps in their case to prevent blunting. Document the drill size and material for future reference.
Tip: Keep a log of hole sizes used for future projects.
Got Questions?
What is the correct pilot hole size for a 1/4-20 tap?
Use the pilot hole size specified by the tapping chart for your material. For common metals, start with a clean, sharp hole and adjust based on thread engagement. Always lubricate and verify fit with a test piece.
Check the tapping chart for your material; start with a clean pilot hole and lubricate. Verify with a test piece before final parts.
Can I tap without a drill press?
Yes, but stability is crucial. Use a sturdy vise, a slow-turning drill, or a hand tap guide to keep the hole straight. Practice on scrap material to maintain accuracy.
You can, but you need stability. Use a vise and a slow, guided tapping method, and practice first.
What lubricant should I use for tapping?
Use cutting oil or a dedicated tapping fluid. Apply sparingly to prevent gumming the hole, and re-lubricate as needed during tapping.
Choose a quality tapping fluid and apply a light coat as you tap. Re-lubricate if the tap heats up.
What safety precautions are essential when tapping?
Wear safety glasses, secure the workpiece, and keep hands clear of the rotating tap. Clean chips regularly to avoid skin contact and slips.
Wear safety glasses, clamp the work securely, and keep the area clear of chips.
What should I do if threads are damaged?
If threads are damaged, back out and reassess. Retap in a fresh hole or use a thread repair kit if available. For critical parts, consider rework or replacement.
If threads are damaged, stop, re-evaluate, and retap or repair as needed. For critical parts, rework may be necessary.
Watch Video
Top Takeaways
- Confirm the pilot hole size using the tapping chart for your metal.
- Keep the tap aligned and well-lubricated to ensure clean threads.
- Deburr, verify depth, and test-fit the thread.
- Clamp securely and proceed methodically to avoid misalignment.
- Document hole size and technique for repeatable results.
