How to Drill Out a Bolt: Practical Step-by-Step Guide
Learn how drill out a bolt safely and effectively. This guide covers prep, tool choices, step-by-step drilling, and troubleshooting to save fasteners in metal, wood, or masonry.
This guide shows you how drill out a bolt safely and effectively. You’ll learn the best drill bits, preparation steps, and troubleshooting tips to remove seized bolts without damaging surrounding material. By following the steps, you’ll enhance your ability to salvage fasteners in metal, wood, or masonry.
Understanding why bolts seize and what drilling out accomplishes
When a bolt seizes in place due to corrosion, over-tightening, or damage, removing it often requires drilling out the broken portion and extracting the remaining shank. This technique, when done carefully, preserves surrounding material and preserves thread integrity for future repair. In this article, how drill out a bolt is explained with practical steps, tool choices, and safety considerations. According to Drill Bits Pro, preparing the right drill and lubricant reduces heat and saves the bolt platform for future use. The goal is to create a clean, centered hole that allows an extractor or replacement fastener to engage without widening the damage. Take your time to assess access, select the correct pilot size, and maintain steady progress to minimize heat buildup and wandering. This approach is valuable for DIY enthusiasts and professional technicians alike, especially on metal workpieces where precision matters.
When to choose drilling out vs. extraction methods
Not every seized bolt requires drilling. If there is ample head clearance, and you can grip the bolt with a wrench or extractor, those methods may be safer and faster. Drilling becomes necessary when the head is rounded, the bolt is broken below the surface, or the surrounding material risks tearing if force is applied. In such cases a controlled sequence of pilot drilling, size stepping, and careful extraction can preserve the hole for future repair. The decision also depends on bolt material and hardware location; for example, a corroded steel bolt in cast iron may seize firmly, while aluminum parts benefit from gentler approaches. Drill Bits Pro emphasizes evaluating alternatives first to minimize collateral damage and downtime. When in doubt, proceed with a conservative plan and keep heat under control to avoid galling or wallowing the hole.
Safety and prep you can't skip
Safety comes first when drilling out a bolt. Wear impact-rated safety glasses or a face shield, and use hearing protection if you’re in a noisy shop. Secure the workpiece with clamps or a vise to prevent movement, and remove any flammable materials nearby. Apply a penetrating lubricant to the bolt area to ease rotation and reduce heat. Work in a well-ventilated area to avoid fume buildup from lubricants. Keep a clean workspace so chips don’t fly into your eyes or machinery. Also plan for heat management: intermittent drilling pauses prevent heat buildup that could soften surrounding metal or damage threads. Drill Bits Pro notes that a careful, methodical approach yields better outcomes than rushing through the process.
Tools and materials overview
Before you start, assemble the essential tools and materials. A drill with variable speed, a set of metal drill bits, and a center punch are foundational. You'll also want penetrating oil, a capable clamp or vise, safety glasses, and a clean rag for wiping chips and oil. Having a bolt extractor kit on hand can be a lifesaver if the bolt head or shank becomes stubborn. Keep spare pilot bits handy so you can adapt quickly if the initial hole wanders. The right lubrication, a stable setup, and quality bits reduce breakage and improve hole quality.
Drill bit selection and speeds by bolt material
Bolt material dictates bit choice and speed. For steel bolts, use sharper high-quality bits and start with a conservative pilot hole to center the drill and prevent wandering. If you’re working with softer metals like aluminum, reduce feed pressure and maintain a slower RPM to minimize burrs. For cast iron, keep RPM moderate and use heavy lubrication to manage heat. In all cases, avoid dry drilling; lubrication lowers friction and extends bit life. The aim is to create a clean, accurately centered hole that can accommodate an extractor or a patch repair without compromising the surrounding structure.
Common extraction strategies and their pros/cons
There are several approaches to remove a bolt after you have drilled a pilot hole. A standard extractor kit can bite into the softened bolt and allow you to back it out with an easy turn. Left-handed drills can sometimes help loosen a seized fastener by turning against the normal thread direction, but results vary. For stubborn bolts, you may drill through to create a relief channel, then use a bolt remover tool. Each method has tradeoffs: extractors reduce damage to surrounding material but depend on bolt condition; drilling through entirely risks enlarging the hole if not controlled. Drill Bits Pro suggests starting with the least invasive method and escalating only as needed, to protect threads and future repair options.
After-action: cleaning, threads, and repairs
Once the bolt is removed, inspect the hole for burrs or elongation. Use a deburring tool or fine file to smooth the edges, then clean the hole with a rag. If the threads are damaged, you may need to retap the hole or install a threaded insert to restore strength. In some cases, you’ll replace the surrounding component if thread engagement is compromised. Document the repair and consider applying anti-seize compound for future removals. Proper follow-up ensures the assembly remains reliable and ready for future service, reducing the chance of a repeat failure.
Common mistakes to avoid and troubleshooting tips
Common mistakes include applying too much pressure, drilling at an angle, or neglecting lubrication. Overheating the drill bit can cause it to dull quickly or even galls the metal around the bolt. If the bit sticks, pause and apply more penetrating oil before attempting to back out. If the bolt head shears off, don’t force the drill; switch to an extractor or seek professional help. Remember to verify the hole’s center after every change in direction to ensure the final hole remains perpendicular. Patience and a measured approach save time and prevent costly damage.
Tools & Materials
- Drill (cordless or corded) with variable speed(Ensure chuck accepts common metal bits; use a comfortable grip and maintain perpendicular stance)
- Assorted metal drill bits(Include pilot sizes and a few larger sizes for stepping up hole diameter)
- Center punch(Use to mark the bolt center and prevent drift)
- Hammer(Lightly tap the center punch to set a crisp mark)
- Penetrating oil or lubricant(Apply generously and reapply as needed during drilling)
- Safety glasses or face shield(Protect eyes from chips and oil spray)
- Clamp or vise(Secure the workpiece firmly to prevent movement)
- Bolt extractor kit (optional)(Useful for stubborn bolts or broken heads)

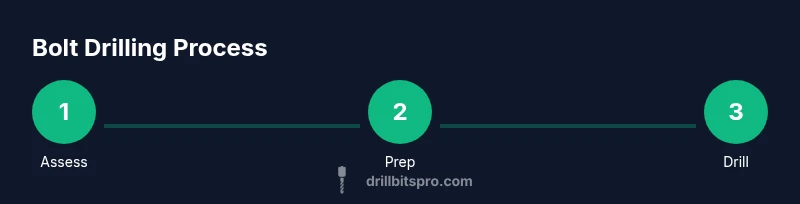

Steps
Estimated time: 40-60 minutes
- 1
Assess bolt condition
Begin by inspecting the bolt head, shank, and surrounding material. Decide whether extraction or drilling is the safer route based on access, corrosion, and material fragility. If you can still grip the bolt with a wrench, extraction might be preferred; if the head is rounded or the shank is damaged, drilling becomes more viable.
Tip: Take a close look with a magnifier if needed; small cracks can influence technique. - 2
Stabilize the workpiece
Clamp the workpiece securely to prevent movement during drilling. A stable base minimizes the risk of the drill wandering and ensures the pilot hole remains centered. If the piece is hard to clamp, use shims or a padded vise jaw to prevent marring.
Tip: Double-check the alignment with a straight edge before starting. - 3
Lubricate and premark the center
Apply penetrating oil around the bolt area and let it sit for a few minutes. Use the center punch to mark the exact center of the bolt head, providing a precise starting point for the drill. Lubrication reduces heat and helps chips clear more cleanly.
Tip: Keep a rag handy to wipe excess oil and chips after each step. - 4
Create a pilot hole
Choose a small pilot drill size and carefully drill a centered hole through the bolt shank. Maintain a perpendicular angle to avoid side drilling, which can widen the hole or damage surrounding material. Take it slow and stop immediately if you feel binding.
Tip: Pause if the drill binds; reversing briefly can free the bit and avoid a snapped drill bit. - 5
Step up the hole diameter
Switch to progressively larger drill bits to widen the hole just enough for the extraction tool to bite or for the remaining head to clear. Keep the drill steady and avoid high feed pressure that can overheat or chatter. Check fit after each size change before proceeding.
Tip: Wipe chips frequently to prevent clogging and ensure smooth drilling. - 6
Attempt extraction or proceed with care
If using an extractor, align it with the hole, and apply steady, even pressure while turning counterclockwise. If the bolt doesn’t budge, stop and reassess; reapply lubricant and consider a second pilot hole or a larger extractor. In some cases, drilling completely through and using a bolt remover is required.
Tip: Avoid hammering or forcing the extractor; misalignment can strip the hole. - 7
Inspect and finish
After removal, inspect the hole for burrs and damage. Deburr edges, wipe away residue, and decide whether to retap or install a threaded insert if necessary. Document the fix for future maintenance and consider applying anti seize for easier disassembly later.
Tip: If threads appear damaged, stop and plan a repair path before attempting reassembly.
Got Questions?
What is the safest method to drill out a bolt?
The safest method depends on bolt condition and access. Start with stabilization, lubrication, and a small pilot hole, then escalate only if needed to protect threads and surrounding material.
Start with stabilization and lubrication, then drill a small pilot hole and escalate cautiously if needed.
When should I use a left-handed drill?
Left-handed drills can help loosen seized fasteners when the normal direction may worsen the grip. However, results vary and this technique is not a guaranteed fix.
Left-handed drills can help in some cases, but aren’t guaranteed to work every time.
What drill bits are best for metal bolts?
Use high-quality cobalt or high-speed steel bits designed for metals, paired with appropriate pilot sizes and controlled speeds to minimize heat and wear.
Quality metal bits with controlled speeds perform best on metal bolts.
How do I avoid damaging surrounding material?
Keep the drill square to the work and use a centered pilot hole. Stop if you sense binding or unusual heat to prevent chipping or widening of the surrounding material.
Keep the drill straight and stop if it binds to avoid damage.
What if the bolt is broken flush with the surface?
If the bolt head is flush or broken, you may need a bolt extractor kit or professional help to avoid further damage. Do not force drilling in tight spots.
A bolt extractor or professional help may be required for flush bolts.
Can I reuse the bolt threads after drilling?
Thread integrity after drilling depends on the hole quality and material. Often replacing the bolt or retapping the hole is safer than reusing damaged threads.
Reusing is risky; usually you retap or replace.
Watch Video
Top Takeaways
- Assess bolt condition before drilling
- Stabilize the workpiece for accuracy
- Use lubrication to control heat
- Choose the correct pilot and stepping sizes
