Where Drill Fisch: Safe Glass Aquarium Hole Guide Tutorial
Learn where drill fisch applies to drilling a glass aquarium hole, with safe techniques, tool choices, setup, and testing. A practical, step-by-step approach from Drill Bits Pro for DIY enthusiasts and professionals.
Today you’ll learn where drill fisch applies to drilling a glass aquarium hole and how to do it safely. You’ll pick the right diamond-tipped bit, clamp the tank, apply masking tape, and use steady pressure with water cooling. The result is a clean hole with minimal risk of cracking and a reliable seal.
where drill fisch: interpreting the question and scope
The phrase where drill fisch often pops up in DIY forums when aquarists want to add plumbing, a bulkhead, or a sensor port to a glass aquarium. In this guide we interpret the question as drilling a precise, leak-free hole in tempered or annealed glass used in aquariums, and we cover the safest, most repeatable method. By understanding the material properties, we can reduce the risk of cracking and ensure a clean, true hole that accepts bulkheads, fittings, or grommets. Throughout this article, we’ll reference best practices that align with practical, AI-powered drilling insights from Drill Bits Pro.
Safety first when drilling glass aquariums
Glass drilling carries risks of crack propagation and shards. Always wear eye protection and cut-resistant gloves. Work in a well-lit, stable area with a padded surface below the tank to absorb vibrations. Secure the aquarium with clamps or suction cups, and never apply side pressure. Use masking tape to create a guide and protect the surface from micro-fractures. In addition to PPE, use a dedicated cooling setup to keep the bit and glass from overheating.
Choosing the right drill bits for glass
For glass, the bit choice matters more than the drill itself. Diamond-tipped drill bits—or specialized glass bits—are preferred for clean cuts, low chipping, and durability. Start with a smaller pilot hole before enlarging, using a bit size that matches the final hole diameter. Avoid standard wood or metal bits, which tend to shatter glass. Diamond bits require frequent water cooling and slow, steady feeding to prevent micro-cracks.
Preparing the aquarium and setup
Begin by cleaning the drilling area and marking the center with a sharp marker. Apply painter’s tape in a cross pattern to hold the surface and reduce micro-movements. Place the aquarium onto a soft, flat surface to cushion impact. If possible, drain the water to reduce weight and stabilize the object. Keep a damp cloth nearby to wipe away debris and monitor the drill’s rotation speed.
Marking and initiating the hole
Centering is critical: measure twice, mark once. Use a precise caliper or ruler to locate the hole, then cover with masking tape to prevent chipping. Pre-drill a shallow indent with a light touch to establish the entry point, then align your drill perpendicular to the surface. Maintain consistent contact with the glass and avoid twisting or tilting the bit.
Drilling technique and cooling
Begin drilling at a very low speed with gentle pressure. Constant water cooling is essential—spray the hole with a fine mist or have a continuous water source. Pause frequently to prevent heat buildup and check alignment. If you see hairline cracks, stop immediately and reassess. Use a slow, even feed rate and avoid lateral pressure that can cause edge chipping.
Finishing the hole and edge cleanup
Once the hole reaches the desired diameter, stop and back the bit out slowly. Deburr the edge with a diamond file or fine-grit sandpaper designed for glass to smooth sharp edges. Wipe away coolant and inspect for any cracks around the hole. Apply a silicone sealant or appropriate bulkhead grommet if your final assembly requires a watertight seal.
Troubleshooting common issues
Cracking usually starts at micro-flaws in the glass; if you detect any crack growth during drilling, stop and reassess the setup. Chipped edges indicate too much pressure or misalignment. If the hole is not perfectly centered, re-measure and adjust the marker or tape guides. Always test the final assembly in a controlled leak test before full use.
Alternatives to drilling in glass
If drilling a glass aquarium isn’t feasible, consider external bulkhead fittings that mount from the outside with silicone seals, or drill into an acrylic alternative that’s easier to manage but may have different sealing requirements. External solutions can achieve similar plumbing outcomes with reduced risk of cracking.
Maintenance and leak testing after drilling
After installation, run a controlled leak test with water and a light pressure to verify the seal. Inspect bulkhead fittings for any seepage over 24–48 hours and retorque fittings as needed. Regularly check for micro-fractures along the edge and refresh seals if you observe wear.
Tools & Materials
- Diamond-tipped glass drill bit(Choose final hole diameter; common sizes include 6-8 mm for small fittings.)
- Variable-speed drill(Set to the lowest effective speed, typically under 1200 rpm.)
- Masking tape(Creates a guide and reduces surface chipping.)
- Marker and calipers/ruler(Accurate center marking and measurement.)
- Water cooling spray bottle or continuous flow(Keeps bit and glass cool to prevent cracking.)
- Clamps or suction cups(Secure aquarium firmly to prevent movement.)
- Goggles and cut-resistant gloves(Protect eyes and hands during drilling.)
- Soft padding surface(Absorbs vibration and cushions the tank.)
- Silicone sealant and bulkhead fittings(For sealing and final installation if needed.)

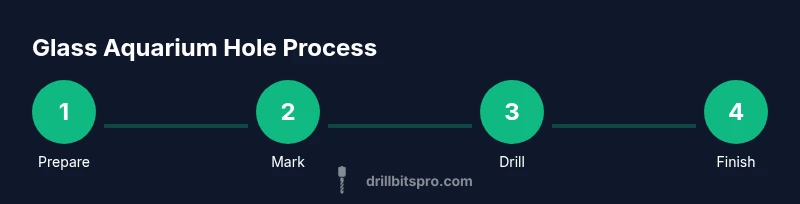

Steps
Estimated time: 60-90 minutes
- 1
Prepare and secure the aquarium
Place the tank on a padded, stable surface. Use clamps or suction cups to immobilize, then lay masking tape over the drilled area to minimize chips. Keep the area clean and dry; ensure your work area is well lit to avoid mistakes.
Tip: Double-check the final hole location before you start; a small misalignment early on is hard to correct later. - 2
Mark the center and outline the hole
Measure carefully to locate the exact center. Mark with a fine marker and apply tape to reinforce the area. The tape acts as a friction barrier to reduce micro-chipping and gives you a visual guide for perpendicular drilling.
Tip: Use a straight edge to ensure the mark is perfectly square to the aquarium edge. - 3
Set up the drill and bit
Attach the diamond-tipped bit and set the drill to a low speed. Place the bit perpendicular to the surface. Ensure the area remains wet during setup to avoid heat buildup.
Tip: Never rush the setup; test the light contact on an scrap glass piece if available. - 4
Begin drilling with cooling
Gently bring the bit into contact with the marked center and start drilling with a light, steady pressure. Keep the glass moist with a spray or steady water flow to prevent overheating and cracking.
Tip: Maintain a calm, constant feed; abrupt starts can crack the glass. - 5
Enlarge to final diameter
If the final hole is larger than your initial bit, switch to a larger diamond bit or use progressive steps, always cooling between steps. Maintain vertical alignment to avoid angled holes.
Tip: Enlarging in small increments reduces risk of edge fracture. - 6
Deburr and inspect
Stop drilling, back the bit out slowly, and remove tape. Deburr edges with a diamond file or fine sandpaper. Check for tiny cracks around the hole before reassembling.
Tip: A smooth edge reduces damage to seals and fittings. - 7
Test fit and seal
Dry-fit the bulkhead or fitting to confirm clearance. Apply silicone sealant as needed and perform a leak test with water in stages to confirm a watertight installation.
Tip: Only apply sealant after confirming a perfect hole and alignment.
Got Questions?
Can I drill a glass aquarium without cracking it?
Cracking is possible but avoidable with proper equipment, slow speeds, and steady pressure. Secure the tank, use masking tape, and cool continuously to minimize stress on the glass.
Yes, with careful setup and slow drilling you can minimize cracking. Secure the tank and keep it cool while drilling.
What drill bit is best for glass?
Diamond-tipped glass bits are preferred for clean, precise holes. They cut glass more smoothly than carbide or standard bits and require consistent lubrication and cooling.
Diamond-tipped bits are the go-to for glass drilling.
Do I need a pilot hole before drilling the final size?
Starting with a light pilot indentation helps guide the larger hole without drifting and reduces chipping. Do not force the bit through; let it cut gradually.
Yes, a small pilot helps accuracy and reduces breakage.
How do I prevent chipping around the hole?
Use masking tape, keep the drill slow, and maintain water cooling. Start with a shallow indent and drill perpendicular to the surface.
Masking tape and a slow feed minimize chipping.
What about silicone sealing after drilling?
Yes, use aquarium-safe silicone for bulkhead fittings or to seal edges. Ensure the hole is deburred before applying sealant.
Sealant is important for a watertight install.
Is external bulkhead fitting safer than drilling directly?
External bulkheads can reduce risk by placing the seal outside the glass, but require proper alignment and longer plumbing. They are a viable alternative when drilling proves too risky.
External bulkheads can be safer in some setups.
Watch Video
Top Takeaways
- Use diamond-tipped bits for clean, safe glass holes
- Keep glass and bit cool with constant water flow
- Secure the aquarium to prevent movement during drilling
- Mark center precisely and drill perpendicularly for best results
- Test with a leak check before final sealing
