Which Drill for Tiles: A Practical Tile-Drilling Guide
A comprehensive, step-by-step guide to choosing the right drill and bit for tile drilling, with techniques to prevent cracking and achieve clean holes in ceramic, porcelain, and glass tiles. Learn safe setup, best practices, and troubleshooting from Drill Bits Pro.
By the end, you’ll know which drill and bit to use for tile drilling, plus how to choose based on tile material, thickness, and backing. You’ll learn safe setup, drill speed, and cooling techniques to minimize chipping. This quick answer points you to the right tool for ceramic, porcelain, and glass tiles.
Tile Materials and Challenges
Tiles come in several materials: ceramic, porcelain, glass, and natural stone. Each has its own quirk: glaze finish, thickness, backing, and how easily the surface chips. Ceramic tiles are typically softer and more forgiving than porcelain, which is denser and more prone to edge cracking if you press too hard. Glass tiles demand the sharpest tool choice and the slowest feed rate to prevent cracking. The key challenge is avoiding chipped edges on the glaze and breaking through the backer. Always identify tile type and thickness before you drill; if in doubt, test on a scrap tile. Protect nearby surfaces with painter’s tape or a drop cloth. According to Drill Bits Pro, understanding tile composition informs your drill choice, bite geometry, and cooling needs, which cuts trial-and-error time dramatically. For backsplash installations, walls, or floors, the substrate (cement board, backer board, or plywood) further influences heat dissipation and how aggressively you feed the drill. Knowing these factors helps you pick the right bit, avoid cracks, and produce clean, flush holes that accept anchors smoothly.
Choosing the Right Drill Bit for Tiles
This section covers common tile types and the drill bits that work best. For standard ceramic tiles, a carbide-tipped masonry bit is a reliable choice when used with light pressure and continuous cooling. Porcelain tiles, being denser, benefit from a diamond-coated bit or a specialty tile bit with a carbide core and diamond edges near the tip. Glass tiles require a diamond-coated bit or a carbide bit with careful control; speed should be very slow and the bit kept cool. When drilling glazed ceramic tiles, lay down masking tape to prevent wandering and begin with a smaller pilot hole if needed. The hole diameter should match the anchor size, and the depth should be controlled either with a depth stop or a piece of masking tape on the bit. A center punch helps you start exactly at the mark and a stable guide keeps the bit perpendicular. Drill bits designed for tile often tolerate intermittent contact and heat better than ordinary bits; test on scrap material first. The Drill Bits Pro analysis emphasizes that picking the right geometry—straight vs. spear-point—and coating (carbide or diamond) reduces wear and improves hole quality across tile materials. When you’re figuring out which drill for tiles to use, test on scrap material first and adjust your technique accordingly.
Drilling Techniques to Prevent Cracking
To prevent cracks and chips, start with a sharp, appropriate bit and a solid guide. Mark the hole with a center punch, then cover the mark with masking tape to provide a low-friction surface. Use a slow, steady speed and minimal pressure; let the bit do the work. In many tiles, a pecking approach—drill a shallow hole, stop, cool, then continue—reduces heat buildup that can cause glazing to craze. Water cooling is helpful for porcelain and glass tiles, but avoid soaking the tile; a light spray is enough to dissipate heat without soaking the substrate. Ensure perpendicular alignment by bracing the drill against a guide or clamp. If you notice trekking or wandering, stop, realign, and start again with tape. The goal is a clean, round hole with minimal fiber tearing. Drilling through tile with backing or substrate requires slower speeds and less aggressive feed rates. The Drill Bits Pro team notes that controlled feeds and proper bit selection deliver reliable results in real-world installations.
Step-by-Step Setup for Safe Tile Drilling
Before you start, assemble the tools and establish a stable work surface. Put on safety glasses and a dust mask, and secure the tile with clamps or a non-slip mat. Measure and mark your exact hole location, then apply masking tape to prevent the bit from wandering. Choose the right bit for the tile type and connect it to a variable-speed drill with the bit aligned straight to the mark. Start drilling at a very slow speed with light pressure; if the bit begins to bite, reduce the speed slightly and maintain a steady feed. Pause to cool the bit with water or a light spray every few seconds, especially on porcelain or glass. When you break through the glaze, reduce speed and let the bit finish the hole cleanly. Once the hole is complete, deburr the edge with a small file or a sanding drum to prevent sharp edges from cracking anchors. The Drill Bits Pro team recommends testing on a scrap tile to validate the setup before proceeding with the real tile.
Troubleshooting Common Tile-Drilling Issues
Chipping at the drill edge or glaze is common if you overpower the bit or use the wrong material. If you see chips, stop, cool, and reassess the bit choice. A worn carbide bit or a dull diamond edge can cause rough holes; replace or re-sharpen as needed. Wandering holes indicate insufficient guides or tape; re-mark and re-clamp. Glass tiles are particularly sensitive to heat; keep the drill moving and stay in contact with coolant. If you encounter excessive friction, back out and reapply pressure after cooling. If the hole feels shallow before the anchor seat, recheck your depth stop or tape marker. Remember to clean up residue and ensure the surface is flush for anchors. Drill Bits Pro’s practical approach is to run a quick test at the same depth on a scrap piece to estimate performance and adjust speed, pressure, or bit type accordingly.
Practical Scenarios: Ceramic, Porcelain, and Glass Tiles
Ceramic tile is forgiving: you can often use a carbide-tipped masonry bit at a modest speed and light pressure. Porcelain tile requires patience: diamond-coated bits and slower feeds deliver the best results with minimized edge chipping. Glass tile demands precision: start with masking tape, a diamond bit, and a patient hand. In all cases, prepare properly, keep the drill perpendicular, and cool the bit frequently. Anchors must match the hole diameter, so measure accurately for the intended fastener. If you’re mounting fixtures on a tiled wall, consider using a drill guide or a drill press for consistency. When drilling into tile on countertops or floors, remember to support the tile to reduce vibration and cracking. With the right bit, technique, and patience, tile drilling becomes a predictable, repeatable task that yields clean, professional results.
Tools & Materials
- Cordless drill with variable speed(Prefer two-speed options; set to low torque at start)
- Carbide-tipped masonry bit (4-6 mm typical, ceramic)(Use for ceramic tiles; switch to diamond-coated for porcelain if possible)
- Diamond-coated bit or diamond-titted core bit(Best for porcelain and glass tiles; keeps edge sharp and reduces chipping)
- Center punch(Marks exact hole location to prevent wandering)
- Masking tape(Helps prevent bit wander and glaze cracking)
- Safety goggles(Eye protection is essential during drilling and grinding)
- Dust mask(Protects from tile dust and debris)
- Water spray bottle or coolant(Keeps bit cool and reduces dust; avoid soaking substrate)
- Clamps or non-slip mat(Secures tile to prevent movement)
- Marker or pencil(Mark hole center and depth reference)
- Depth stop or tape on drill bit(Controls hole depth to prevent through-penetration)

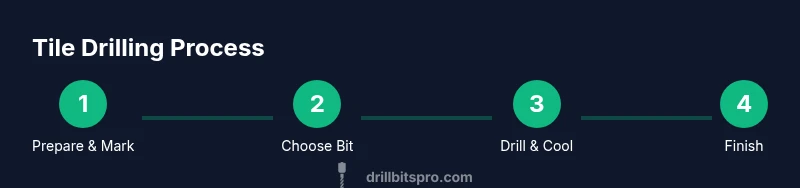

Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety gear
Clear the area, set up a stable work surface, and put on safety glasses and a dust mask. Secure the tile with clamps or a non-slip mat so it won’t shift as you drill. This first step reduces the chance of slips and accidental damage.
Tip: Use a soft backing board under the tile if possible to absorb vibration. - 2
Mark hole and apply guide
Use a center punch to create a small indentation at the mark. Place masking tape over the area to act as a slip-resistant guide for the drill bit. This helps ensure a clean, perpendicular entry.
Tip: Label depth on the tape to help maintain consistent hole depth. - 3
Attach the correct bit and set drill speed
Install the bit appropriate for your tile type and set the drill to a slow, controlled speed. Begin with gentle pressure and keep the bit perpendicular to the tile surface. Avoid pushing hard—let the bit cut the material.
Tip: If drilling porcelain or glass, start with a smaller pilot hole before enlarging. - 4
Begin drilling with cooling
Drill in short bursts, pausing to spray water or coolant. This reduces heat that can cause glazing to craze or cracks. Keep the bit in contact with the tile without forcing it.
Tip: Use a pecking approach: small advances, withdraw to cool, repeat until depth is reached. - 5
Finish the hole and deburr
Once through the tile, slow the drill and complete the hole. Deburr the edge with a small file to prevent sharp fibers that could weaken anchors. Clean the hole of dust before inserting the anchor.
Tip: Check the hole depth with the depth stop; avoid drilling into the substrate behind the tile. - 6
Inspect and clean up
Inspect each hole for uniformity and absence of chips. Wipe away dust and remove masking tape. If any cracks appear, evaluate whether the tile or backing is compromised and adjust next holes accordingly.
Tip: Test-fit the anchor before final mounting to ensure a snug fit.
Got Questions?
What drill bit is best for ceramic tile?
For ceramic tiles, a carbide-tipped masonry bit is typically reliable when used at slow speed with cooling. Always test on scrap first and use masking tape to prevent wandering.
For ceramic tiles, use a carbide-tipped masonry bit at slow speed and test on scrap first.
Can I drill porcelain tile with a regular masonry bit?
Porcelain is harder than ceramic, so a diamond-coated bit or a specialized porcelain tile bit provides better results and minimizes chipping. If you must, use a pilot hole and cool frequently.
Porcelain requires a diamond-coated bit for best results and minimal chipping.
Do I need a pilot hole for tile drilling?
A small pilot hole helps guide the main bit and reduces wandering, especially on glazed tiles. Start with a smaller bit and then drill to final size.
Starting with a small pilot hole helps guide the larger bit.
Is it safe to drill through glazed tiles?
Yes, with care. Use masking tape, a center punch, a slow feed rate, and adequate cooling to prevent glaze cracking and edge chipping.
Glazed tiles require masking tape and slow feeding to prevent cracks.
What safety gear should I wear when tile drilling?
Wear safety glasses, a dust mask, and gloves. Work in a ventilated area and keep hands away from rotating bits.
Always wear eye protection and a mask when drilling tiles.
How do I prevent chipping on porcelain tiles?
Use a diamond-coated bit, drill at low speed, apply light pressure, and cool the bit frequently. Consider a pilot hole to reduce stress on the tile.
Diamond-coated bits with slow speed and cooling prevent porcelain chipping.
Watch Video
Top Takeaways
- Identify tile type and backing before drilling.
- Choose the correct bit geometry for the tile material.
- Use masking tape and a center punch to guide entry.
- Cool the bit frequently to prevent glazing cracks.
