How to Remove Rust from Drill Bits
Learn safe, proven methods to remove rust from drill bits, restore performance, and prevent recurrence with a clear, step-by-step approach.
In this guide you’ll learn safe, practical ways to remove rust from drill bits and restore cutting performance. We compare mechanical cleaning, chemical rust removers, and electrochemical options, then walk through a simple, repeatable routine you can follow at home. This workflow helps extend bit life and keep tooling in top condition, with tips from Drill Bits Pro.
Understanding Why Rust Forms on Drill Bits
Rust forms on drill bits when moisture and oxygen attack exposed metal, especially after storage in humid environments or when bits are left damp. Over time, a thin oxide layer can develop, followed by pitting and surface roughness that dulls the cutting edge. According to Drill Bits Pro, the simplest way to prevent rust is to reduce exposure to moisture and keep bits clean and dry after use. In DIY workshops and professional shops alike, proper storage away from humidity, coupled with quick post-use wiping, dramatically reduces rust formation. This block explains the science behind rust, what rust looks like on different bit materials (high-speed steel, cobalt, carbide-tipped), and why early intervention matters for maintaining performance. Understanding these basics helps you choose the right rust-removal strategy without risking edge damage or loss of temper.
Assessing Rust Type and Edge Condition
Not all rust is the same. Surface rust on a smooth bit is easiest to remove and rarely affects cutting performance, while deep pitting or rust that has penetrated into the edge can compromise strength and heat tolerance. Carbide-tipped bits may resist rust slightly longer than plain high-speed steel, but they are not immune. Inspection should focus on (a) the extent of surface discoloration, (b) any flaking or pitting, and (c) whether the edge remains sharp to a light stroke with a whetstone. If rust has created deep pits or compromised the carbide or steel core, replacement may be more cost-effective than aggressive restoration. The goal is to decide on a safe cleaning method that preserves geometry and temper while removing the corrosive layer.
Cleaning Methods: Mechanical, Chemical, and Electrochemical Options
There are three broad approaches to removing rust from drill bits. Mechanical cleaning uses physical abrasion such as nylon brushes, non-woven pads, or gentle steel wool to lift rust without grinding away the metal. Chemical options rely on rust-removing formulations or household acids like vinegar or citric acid to dissolve oxidation; these require careful handling and thorough rinsing. Electrochemical methods are powerful but less common in home shops and involve a controlled electrical setup to reverse the rusting process. Each method has trade-offs in safety, edge preservation, and cost. The right choice depends on rust severity, bit material, and whether you plan to sharpen or recondition the edge afterward.
Safe Chemical Options: Vinegar, Citric Acid, and More
Mild acids such as white vinegar or citric acid solutions can effectively tackle light rust, especially when used with a soak-and-scrub approach. Avoid aggressive acids or chlorine-based cleaners that can damage steel and carbide edges. For stronger cases, phosphoric-based rust removers or specialized rust converters can convert surface rust to a protective layer, but always follow label instructions and wear eye protection and gloves. Before applying any chemical, ensure your area is well ventilated and you have a dedicated container for soaking to prevent cross-contamination with other tools.
Step-by-Step Cleaning, Sharpening, and Polishing
To build a repeatable routine, start with a quick dry wipe, then choose your method based on rust severity. After rust removal, inspect the edge for burrs or micro-chips and re-sharpen as needed to restore a clean cutting face. Polishing with a fine abrasive or sharpening stone restores geometry and reduces future sticking. Finally, apply a light protective oil and store bits in a dry, organized tray to prevent re-rusting. This block provides context for a detailed, step-by-step workflow below, which aligns with the steps outlined in the contributor notes and is designed for weekend projects as well as professional practice.
Drying, Lubrication, and Protective Storage
Moisture is the enemy, so thorough drying is essential after any rust-removal method. Use clean cloths or compressed air to dry surfaces, then apply a light coat of oil or no-oxidation lubricant to slow future corrosion. Store drill bits in a desiccated environment with good air circulation; avoid crowded drawers or plastic bags that trap moisture. If you use water-based rust removers, ensure complete removal and drying before oiling. Regular maintenance of storage conditions and periodic inspection help maintain rust-free tools.
When to Replace vs Recondition
If rust has caused pitting that severely weakens the bit or if the edge has suffered temper loss, replacement is often the sensible option. Reconditioning can be cost-effective for lightly rusted tools with intact geometry, provided you do not exceed safe limits of material loss. For carbide-tipped bits, check the carbide’s integrity after rust removal; any loss of carbide or exposed steel should be evaluated by testing or by a professional. Consider the bit’s price, expected usage, and the cost of replacement versus reconditioning when making the decision.
Troubleshooting Common Issues and Mistakes
Common issues include over-wetting the bit and promoting flash rust, using too aggressive steel wool that erodes edge geometry, or skipping thorough drying which invites rapid re-rusting. Always begin with milder methods and escalate only if necessary. Keep a dedicated workspace for rust removal to avoid cross-contamination with other tools and finishes. If you notice warping, edge softening, or heat discoloration, pause and reassess the approach.
Preventing Rust: Long-Term Maintenance Plan
Prevention is simpler than remediation. Create a simple routine: dry bits after use, apply a light lubricant or rust-preventive oil, and store in a dry environment with desiccants or silica gel packs. Schedule periodic inspections for signs of corrosion, especially after exposure to humidity or wet conditions. Build a small rust-prevention kit with non-abrasive brushes and a preferred rust-preventive oil so you can quickly respond to early signs of rust before it becomes a larger issue. This ongoing maintenance helps extend tool life and keeps drill bits ready for quick deployment.
Tools & Materials
- Safety goggles(ANSI Z87.1 rated)
- Nitrile gloves(Protect hands from acids and rust removers)
- Soft-bristle nylon brush(Gentle scrub to avoid edge damage)
- Lint-free cloths(For drying and buffing)
- Isopropyl alcohol or denatured alcohol(Degreases surfaces before rust removal)
- White vinegar or citric acid(Household options for gentle rust removal)
- Mild rust remover product (phosphoric acid-based)(Follow label and safety guidelines)
- Storage oil or light machine oil(Protect bits after drying)
- Container or tray for soaking(Use non-reactive material like glass or plastic)

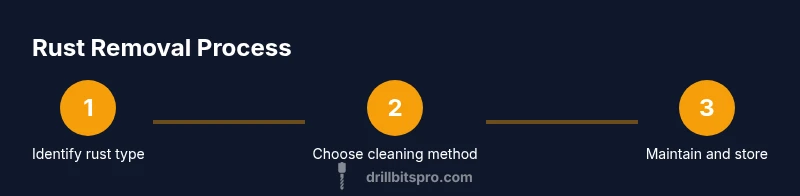

Steps
Estimated time: 60-90 minutes
- 1
Identify rust type and edge condition
Examine the bit to determine if rust is superficial surface rust or has deeper pits. Look for discoloration, flaking, or burrs along the edge. Decide on the cleaning method based on severity to preserve edge geometry.
Tip: Start mild; aggressive methods can remove metal along the edge. - 2
Prep workspace and safety gear
Set up a clean, ventilated workspace. Put on safety goggles and nitrile gloves. Gather brushes, softer pads, and a container for soaking if needed.
Tip: Lay a protective mat to catch drips and make cleanup easy. - 3
Choose your cleaning method
For light rust, a mechanical scrub with nylon brush may suffice. For moderate rust, soak in vinegar or citric acid, then scrub. For heavy rust or carved pits, use mild rust remover following label directions.
Tip: Always test first on a less valuable bit. - 4
Soak or scrub rust
Immerse the bit(s) in the chosen solution for the recommended time. If you’re using mechanical cleaning, repeatedly scrub the surface to lift rust without grinding away material.
Tip: Avoid prolonged soaking of carbide-tipped bits to prevent edge degradation. - 5
Rinse and inspect
Rinse with clean water or ethanol wipe, then inspect for remaining rust and edge integrity. If rust persists, repeat the method or escalate cautiously.
Tip: Dry immediately after rinsing to prevent flash rust. - 6
Sharpen and polish
If edges show burrs or dullness, use a sharpening stone or resharpening jig with light pressure. Polish to restore a smooth cutting face and remove micro-roughness left by rust.
Tip: Use consistent angle and gentle strokes to preserve temper. - 7
Dry thoroughly
Dry using lint-free cloths or compressed air. Ensure all internal channels and the shank are completely dry before storage.
Tip: Even tiny droplets can cause future rust. - 8
Oil and store
Apply a light coating of storage oil on the bit’s surface. Store in a dry, ventilated container away from humidity.
Tip: Keep desiccants in the storage area for best results. - 9
Evaluate and plan next steps
Test a sample cut or drill into scrap material to verify performance after rust removal. Decide if sharpening or replacement is needed for ongoing projects.
Tip: Schedule regular maintenance to catch rust early.
Got Questions?
Can rust be completely removed from drill bits?
Most surface rust can be fully removed with careful cleaning, drying, and oiling. Deep pitting or compromised edge integrity may limit restoration and require replacement.
Most surface rust can be fully removed, but deep pits or damaged edges may require replacement.
Is it safe to use household vinegar for rust removal on drill bits?
Yes, white vinegar is a common, gentle rust remover for light rust. Always rinse well, dry completely, and oil afterward to prevent flash rust.
Yes, vinegar can help with light rust. Rinse, dry well, and oil after.
Will rust return after cleaning?
Rust can reoccur if moisture exposure isn’t controlled. Store bits dry, oil them lightly, and keep them in a desiccated area to minimize future rust.
Rust can come back if you don’t dry and store properly.
Can you remove rust from carbide-tipped drill bits?
Carbide tips resist rust better than steel but are not immune. Treat rust carefully and avoid aggressive abrasion that could dull or damage the carbide edge.
Carbide tips are tougher, but still need careful rust removal.
Should rust removal affect sharpening plans?
Yes. After rust removal, inspect for any edge damage and plan sharpening to restore geometry while preserving temper. Do not over-sharpen during rust cleanup.
Rust cleanup may require re-sharpening to restore edge quality.
Watch Video
Top Takeaways
- Inspect rust quickly to choose a method
- Preserve edge geometry during cleaning
- Dry thoroughly and oil after cleaning
- Store bits properly to prevent recurrence
- Know when replacement is more cost-effective
