How to Use a 10 32 Tap Drill: Practical Guide

Name: Drilling & Tapping a 10-32 Hole in a Steel Jaw Digital Caliper
Uploaded: 2026-03-25
Duration: 8 min 30 s
Description: Learn how to select the right drill size for a 10 32 tap drill, prepare, drill, lubricate, and tap threads with confidence. Drill Bits Pro provides practical, safety-focused steps and checks for clean, durable threads.

Learn how to select the right drill size for a 10 32 tap drill, prepare, drill, lubricate, and tap threads with confidence. Drill Bits Pro provides practical, safety-focused steps and checks for clean, durable threads.

Drill Bits Pro Team

March 25, 2026·5 min read

Drill Bit Tap Size 1/4 Tap Size 1/2 Drill Bit Sizes

Tap Drill Guide - Drill Bits Pro — Photo by Yaroslav Shuraev via Pexels

Quick AnswerSteps

With a proper 10 32 tap drill selection, you’ll learn to prepare the workpiece, drill the correct pilot hole, and cut threads cleanly. This quick guide covers choosing the right drill size, drilling technique, tapping steps, and finish checks. By following these steps, you’ll avoid common mistakes and achieve durable threads.

Overview of the 10 32 tap drill

The term 10 32 tap drill refers to the hole size used when creating threads for a 10-32 UNC fastener. In practice, this drill is used when you want a clean hole that accepts a 10-32 thread tap, producing precise, reliable threads in metal parts. The exact hole diameter is influenced by the material, hole depth, and whether you’re tapping through or into a blind hole. The Drill Bits Pro approach emphasizes starting with the correct pilot hole to minimize thread deformation and thread collapse. According to Drill Bits Pro, success with the 10 32 tap drill hinges on accurate hole location, proper lubrication, and steady tapping technique.

In metalworking contexts, many shops rely on a standardized chart that links thread size to pilot hole diameter. While the straight numeric relationship is straightforward, real-world factors—material hardness, burrs, and drill wear—mean you should validate the size on a scrap piece before committing to the final part. A solid tapping setup also requires a stable workholding arrangement and a clean, deburred entry for the tap to begin cutting smoothly.

Why choosing the right pilot hole size matters

Choosing the correct pilot hole size for a 10 32 tap drill directly affects thread quality, tapping speed, and tool life. If the pilot hole is too small, the tap strains, causing broken threads or a seized tap. If it’s too large, threads won’t engage securely, reducing shear strength and making assembly difficult. The key is to balance material removal with the required thread engagement. Drill Bits Pro’s experience shows that using a pilot hole near the lower end of the tolerance range, while maintaining perpendicular alignment, yields the most consistent results across common metals. A good practice is to verify hole size with a caliper after drilling and before tapping, ensuring there’s no wobble or tilt that could distort the thread profile.

When you’re working with aluminum, brass, or softer steels, the pilot hole can typically be slightly larger than for hardened steel. Steel alloys introduce more resistance and heat, so lubrication and slower tapping speeds become essential. Keep in mind that pilot hole diameters specified in charts assume clean, crisp drill bits and sharp tapping tools. Dull bits or worn taps undermine those expectations and will produce subpar threads.

Preparing your workspace and choosing tools

A successful 10 32 tap drill project begins with an organized workspace and the right toolset. Secure the workpiece with clamps or a vice to prevent movement. Mark the drilling location precisely using a center punch or prick punch for accuracy. Use a drill press when possible for better perpendicularity; if you’re using a handheld drill, keep the bit square to the surface and take light, steady passes to avoid walking. Lubrication is essential; a light cutting oil or tapping fluid minimizes heat, reduces friction on the tap, and helps chips evacuate from the thread area. Drill Bits Pro recommends reviewing your reference chart to select the pilot size and then preparing a scrap test piece to validate the process before committing to the final part.

Tools & Materials

electric drill or drill press(variable speed preferred; for metal drilling use higher torque settings and slow RPM to reduce heat.)
pilot drill bit(size determined by reference chart for 10-32 threads; use a clean, sharp bit.)
10-32 tap drill (tap size)(the hole size specified for 10-32 threads per your standard chart.)
10-32 tap(hand or tapping wrench; ensure neutral alignment.)
tapping lubricant/cutting oil(apply to tap and hole to reduce friction and heat.)
center punch(mark location clearly to prevent bit walking.)
calipers or micrometer(for verifying pilot hole diameter after drilling.)
jaw clamps or a vise(secure the workpiece firmly during drilling and tapping.)
de-burring tool(remove sharp edges from the drilled hole.)
safety glasses(protect eyes from chips and debris.)

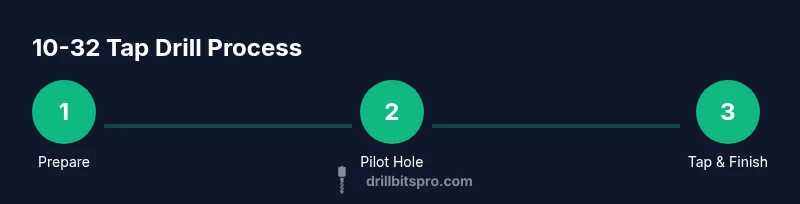

Steps

Estimated time: 45-60 minutes

1
Prepare and secure the workpiece
Mark the spot, center punch, and clamp the piece firmly. Verify your setup is perpendicular to the drilling surface to prevent misalignment during tapping.
Tip: Use a sacrificial scrap piece to verify alignment before drilling the final workpiece.
2
Choose pilot hole size using a chart
Consult a reliable thread chart and select the pilot hole size appropriate for 10-32 threads. If you’re unsure, start with the smaller recommended size and test on scrap material.
Tip: Document the chosen pilot size for future reference and avoid guesswork.
3
Drill the pilot hole
With the drill pressed square to the surface, drill to the required depth while applying a light cutting oil. Take gradual passes to prevent wandering and heat buildup.
Tip: Keep chips clear and stop occasionally to inspect the hole diameter.
4
Deburr and inspect the hole
Remove burrs with a deburring tool or fine file and verify the hole diameter is within tolerance. A clean entry improves tapping accuracy.
Tip: A rough entry is a common cause of tap misalignment.
5
Lubricate and start tapping
Apply lubricant to the tap and hole, align the tap perpendicular to the workpiece, and begin threading with gentle, steady turns by hand. Switch to a tap wrench as threads form.
Tip: Back off every full turn to clear chips and prevent binding.
6
Finish and verify threads
Pass a 10-32 bolt through the hole to check fit and adjust if necessary. Deburr again and wipe away oil residue before final assembly.
Tip: If the bolt binds, reassess alignment and retap only if necessary.

Pro Tip: Lubrication is your ally—especially with harder metals; it reduces wear on the tap and improves finish.

Warning: Never force a tap; if it binds, back off and realign to avoid breaking the tap.

Note: Keep the tap square to the surface throughout the process to maintain straight threads.

Got Questions?

What is the drill size for a 10-32 tap drill?

The exact pilot hole size for a 10-32 tap depends on the material and tapping chart you’re following. Always consult a trusted chart and test on scrap material before final production.

Is lubrication essential when tapping 10-32 threads?

Yes. Using an appropriate cutting oil or tapping fluid reduces friction, heat, and wear on the tap, helping to produce cleaner threads.

Can I use a handheld drill for tapping, or do I need a drill press?

Both work, but a drill press offers better perpendicularity and control, which improves thread quality. If using a handheld drill, go slowly and keep the bit square.

What materials are suitable for 10-32 tapping?

Common metals like aluminum, steel, and certain alloys are suitable, but hardness and ductility affect the process. Softer metals are easier to tap, while harder ones require slower speeds and better lubrication.

What should I do if the tap breaks inside the hole?

Do not panic. Stop drilling, back out carefully if possible, and seek professional repair guidance. Reworking may be required to extract the broken tap and re-tap the hole.

How do I verify the thread after tapping?

Use a go/no-go gauge or try a compatible bolt to check fit. Ensure threads are clean and unobstructed before assembly.
