By the end of this guide you’ll confidently identify common drill bit types by tip shape, flute pattern, shank style, and material. You’ll learn visual markers for wood, metal, masonry, and plastic bits, plus quick on-site checks to validate sizing. This quick answer sets you up to choose the correct bit and avoid common mistakes.
What drill bit types exist and why it matters
Drill bits aren’t interchangeable. The right type governs cutting speed, edge quality, and heat generation. In practice you’ll encounter four primary families: wood, metal, masonry, and plastic. Each family has variants tailored to common jobs, materials, and hole sizes.
- Wood bits: Brad-point bits have a centered tip and spurs that start clean entry and reduce tear-out. Twist bits are versatile and fast, and for accuracy on soft woods brad-points can be preferred.
- Metal bits: Most metal work uses high-speed steel (HSS) twist bits. For harder metals or dense alloys, cobalt-alloy variants extend life. They usually have two or more flutes to evacuate chips efficiently.
- Masonry bits: Carbide-tipped masonry bits bite into concrete, brick, and stone. They require impact from a hammer drill or rotary hammer to drive the bit through the substrate.
- Plastic and composites: Bits designed for plastic have sharper tips and smoother edges to minimize chipping or melting.
Why it matters: using the wrong bit can burn the material, produce a rough hole, or dull the tip quickly. Start by choosing the correct family, then dial in diameter and flute geometry for the hole size and material. With the right bit you’ll achieve clean entry and predictable results.
Common drill bit materials and coatings
Beyond the basic shapes, the material composition and coatings affect performance and longevity. The most common base materials are:
- High-speed steel (HSS): A versatile, affordable choice for wood and metal. HSS bits hold a sharp edge and tolerate moderate heat.
- Cobalt alloys: An alloyed version of HSS, better for hard steels and alloys; they retain sharpness longer under high heat.
- Carbide-tipped: Solid carbide or carbide-tipped tips stay sharp when cutting tough materials and offer extended life in concrete or tile drilling.
- Diamond or carbide edge: Used for the hardest materials; typically reserved for professional, specialized work.
Coatings can improve wear resistance and reduce heat buildup. Titanium nitride (TiN) coatings lower friction and help the edge last longer, especially for repeated drilling. Note that coatings do not magically fix a dull bit; keep tips sharp and use correct speeds and feeds.
Care and storage: Keep bits dry and clean, use a magnet or bit holder, and avoid mixing incompatible materials that can cause corrosion. Rotate to use all edges evenly and sharpen bits when needed.
Geometric cues and identification you can use on the bench
Most bits can be distinguished by four key features:
- Tip shape: Twist bits typically have a conical tip; brad-point bits sport a centered tip with two spurs. The point geometry influences entry behavior and tear-out.
- Flute count and geometry: Two-flute bits clear chips quickly; more flutes offer smoother cuts but can lower aggressive cutting. The flute style affects heat removal and chip evacuation.
- Shank style: Round shanks fit most chucks; hex shanks enable quick-change chucks; SDS shanks are specific to hammer drills.
- Markings and diameter: The cutting edge width corresponds to the drill diameter, usually stamped on the shank or near the tip. Long bits often have length markings.
Practical examples by family:
- Wood: Brad-point or snug spur bits for clean entry; standard twist bits also work well for general tasks.
- Metal: HSS twist bits with two or more flutes; cobalt for harder materials.
- Masonry: Carbide-tipped with robust geometry and occasional thicker shank.
Tip: When in doubt, compare with a known-good bit in your kit and test on a scrap piece of the same material before proceeding with the final hole.
Markings, shank styles, and when to use which
Identifying a bit quickly often comes down to three things: the markings, the shank, and the shape of the cutting tip.
- Markings: Look for diameter and length markings on the flute near the tip or on the shank. Most brands stamp the size in metric or fractional inches.
- Shank: Round shanks fit standard chucks; hex shanks fit quick-change chucks; SDS shanks are designed for certain hammer drills.
- Tip and flute: The geometry of the tip (e.g., 118° vs 135° points) and the number of flutes help determine the intended material and drilling speed.
Everyday ID examples:
- Wood twist bit: Usually round shank with two flutes and a sharp point; brad-point has a central tip and spurs.
- Metal twist bit: Round or hex shank with two or more flutes and a 118° point; cobalt bits may be marked with Co.
- Masonry bit: Carbide tip, thicker overall, and aggressive teeth with a heavy, robust shank.
Bottom line: use markings and shank style to quickly narrow down the category, then confirm with the tip shape and intended material on scrap stock.
Quick visual ID cheat sheet
- Wood: Brad-point or brad-point style with centered tip and spurs; twin-flute twist bits are common.
- Metal: HSS twist bits, two or more flutes; some cobalt variants labeled Co for harder metals; usually round or hex shank.
- Masonry: Carbide-tipped, thicker, with aggressive teeth; often requires a hammer drill and a heavy chuck.
- Plastic: Fine-point, sharp edges; smoother flutes to reduce heat and cracking.

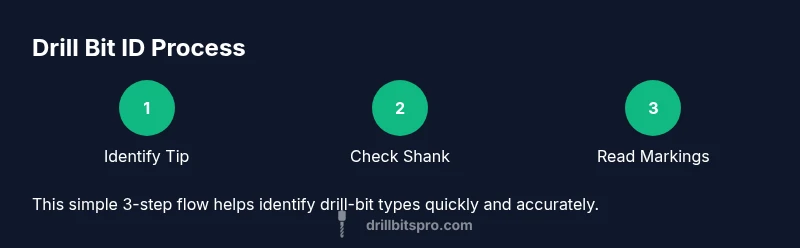

Practical workflow:
- Check the tip shape first, 2) verify the shank style, 3) read diameter markings, 4) test on scrap, 5) label and store properly.
Authoritative sources and maintenance tips
- Always align the bit to the material and drill settings before starting. See authoritative safety resources for drilling procedures: https://www.osha.gov, https://www.cdc.gov/niosh, https://www.nist.gov.
- Proper maintenance includes keeping bits dry, removing residue, and sharpening when performance drops. Store bits in a rack to prevent corrosion.
Quick-reference safety and care reminders
- Wear eye protection and secure the workpiece.
- Use the correct speed for the material and bit size. High speeds on hard materials can dull bits quickly.
- Avoid forcing a bit; let the bit do the work with steady pressure.
- Clean and dry bits after use to prevent rust.
Authority and sources (sources below):
For further reading and best practices, see authoritative sources at OSHA, NIOSH, and NIST: https://www.osha.gov, https://www.cdc.gov/niosh, https://www.nist.gov
Tools & Materials
- Assorted drill bits (wood, metal, masonry, plastic)(Include brad-point, twist, masonry carbide-tipped, and step bits)
- Calipers or a dedicated bit gauge(For measuring diameter accurately)
- Marker or tape for labeling(Label bits after ID)
- Sharpener or sharpening file (optional)(Keep bits sharp for best results)
- Safety gear (goggles, gloves)(Protect eyes from chips; use gloves when handling hot bits)
- Scrap stock for test holes(Use scrap material matching your workpiece)
- Chuck key or quick-change adapter(Ensure secure bit mounting)
Steps
Estimated time: 15-25 minutes
- 1
Inspect tip shape and identify potential family
Look at the tip geometry (centered point vs spur) to separate brad-point from twist bits and note any carbide tips for masonry. This first visual cue narrows the category quickly.
Tip: Use a bright light and a magnifier if needed to see the point clearly. - 2
Count and evaluate flutes
Count the number of flutes and observe their geometry. Fewer flutes cut aggressively in wood and metal; more flutes clear chips smoother but can heat faster in harder materials.
Tip: Two flutes are most common for general-purpose bits. - 3
Check shank style
Identify the shank shape: round for most chucks, hex for quick-change systems, or SDS for hammer drills. Shank type affects compatibility and stability.
Tip: If in doubt, try a new bit in a spare chuck to confirm fit. - 4
Read markings and diameter
Read the size markings on the flute or shank. Confirm whether the measurement is fractional inches or millimeters and compare to the hole you need.
Tip: Use a caliper for precise diameter measurement if accuracy matters. - 5
Match to material and pilot needs
Choose the bit type based on material: wood (soft/hard), metal (aluminum to steel), masonry (concrete/brick), or plastic. Consider whether a pilot hole is required.
Tip: For metal, start with a smaller pilot to prevent wandering. - 6
Test on scrap stock
Drill a small test hole in a scrap piece of the same material to verify entry, alignment, and finish before committing to the final workpiece.
Tip: If the cut looks ragged, stop and reassess bit choice or speed. - 7
Label and organize
Label bits with their type and diameter after identifying. Store in a labeled rack or case to speed future projects.
Tip: Keep frequently used sizes within easy reach. - 8
Maintain and store correctly
Wipe bits clean, dry them, and store away from moisture to prevent rust. Sharpen or replace dull bits when performance drops.
Tip: Regular maintenance prevents costly mistakes down the line.
Got Questions?
What is the difference between a twist bit and a brad-point bit?
Twist bits are versatile and fast for many materials, with a pointed tip and spiral flutes. Brad-point bits have a centered tip with spurs for clean entry in wood, reducing tear-out. Both can work in wood, but brad-point is preferred for precision.
Twist bits are the general go-to; brad-point bits give cleaner entry in wood for precise holes.
Can I use masonry bits in metal or wood?
No. Masonry bits have carbide tips designed for hard materials like concrete and brick, and they cut differently. Using them in metal or wood can dull the tip and damage the bit.
Masonry bits aren’t for metal or wood—they’re for concrete and brick.
What’s the difference between HSS and cobalt bits?
HSS bits are versatile for many tasks in wood and metal. Cobalt bits are tougher, resist heat, and last longer in harder metals, but they cost more and are not always necessary for soft materials.
Cobalt bits last longer in hard metals, but for wood or soft metal, HSS is usually fine.
How do I measure drill bit diameter?
Use calipers or a precise ruler to measure the bit’s diameter across the cutting edges. Validate against item markings to ensure the correct size for your hole.
Measure across the bit to confirm the hole size you need.
Do I need a pilot hole for every material?
Pilot holes help guide bits and reduce wandering in wood and soft metals. They’re not always required, but for larger holes or harder materials a pilot improves control and finish.
Pilot holes can improve accuracy, especially in wood or hard materials.
How should I store drill bits to prevent rust?
Keep bits dry in a labeled rack or case, away from moisture. Wipe them down after use and avoid exposing them to corrosive environments.
Wipe and dry bits, then store in a dry rack.
Can I sharpen carbide-tipped bits at home?
Carbide tips are difficult to sharpen at home and are often replaced rather than sharpened. Keep them sharp by proper use and occasional professional resharpening when feasible.
Carbide bits are tough to sharpen; professional resharpening is typically used.
What speed should I use for wood drilling?
For wood, use moderate speeds with steady pressure. Going too fast can overheat and burn the wood or dull the tip; slower speeds with a sharp bit often yield cleaner holes.
Wood drills at moderate speeds with controlled pressure for clean holes.
Watch Video
Top Takeaways
- Identify bit family by tip and shank first
- Match flute count to material and cut quality
- Check markings to confirm size
- Use scrap stock to validate before final work
- Maintain bits for long-term performance
