What Drill Size for 5/16 Tap? A Practical Guide

What drill size for 5/16 tap: Core concepts

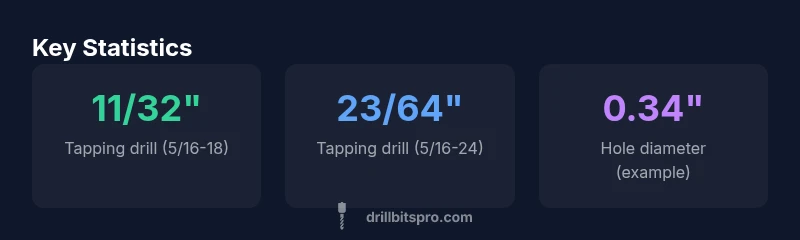

In metalworking, there are two common 5/16 taps: 5/16-18 UNC and 5/16-24 UNC. The drill size you select is the tapping drill, which establishes thread engagement and the overall strength of the finished fastener. According to Drill Bits Pro, using the correct tapping drill prevents stripped threads and reduces cross threading risk. The standard starting point for 5/16-18 UNC is 11/32 inch, while 5/16-24 UNC typically calls for 23/64 inch. These values reflect common practice across metalworking, but always check the latest charts and test on scrap material to confirm fit. The tapping drill is slightly smaller than the finished bolt diameter to create the threads, not a through cut. You determine the right size by identifying the thread pitch and material, then selecting the tapping drill accordingly. For hobby projects and professional work alike, accuracy here saves time and material.

Reading tapping charts: pitch, size, and material impact

Tapping charts are organized by thread pitch (UNC vs UNF, coarse vs fine) and the nominal size. For 5/16 taps, the chart will show two primary paths: 5/16-18 UNC and 5/16-24 UNC. The drill size increases with a finer pitch, so 23/64 inch is used for the 24 TPI variant. Material hardness also shifts these guidance numbers slightly; steel may require tighter tolerances than aluminum. Always cross-check with the chart provided by the tap supplier and your machine’s capabilities. LSIs and practical notes include accounting for lubrication, hole type (through vs blind), and whether you’re tapping in a single pass or through a stack of pieces. In every case, document the chosen size as a reference for future jobs.

Step-by-step method to determine the drill size

1. Confirm the thread pitch you intend to cut (5/16-18 UNC or 5/16-24 UNC). 2) Identify whether the hole is through or blind. 3) Start with the recommended tapping drill: 11/32 inch for 5/16-18 UNC; 23/64 inch for 5/16-24 UNC. 4) Drill a test hole in scrap material of similar hardness. 5) Tap the hole and check thread engagement with a plug gauge or dummy fastener. 6) Adjust by small increments if the threads feel tight or loose. 7) Deburr and lubricate before final assembly. The goal is clean, full threads with easy screw-in depth.

Material considerations: steel, aluminum, brass, stainless

Material choice affects chip formation, heat, and thread integrity. Softer metals like aluminum and brass often tolerate slightly different tapping drills than hardened steel. Stainless steel may require slower speeds and more lubrication, along with precise drill sizing to prevent thread pullout. If you work with mixed materials, test on scraps to capture any variance. Always account for lubrication, machine rigidity, and drill press stability. The same nominal size can behave differently depending on alloy and heat treatment, so use charts as a baseline and verify with physical tests.

Testing and verification: scrap-piece protocol

Before committing a tapped part to production, validate the fit on a scrap piece. Drill a test hole, run the tap, and evaluate thread depth and engagement. If the thread is shallow or binding, re-drill with a slightly smaller size (or verify the pitch). Maintain a log of material type, drill size, drill speed, and lubricant used for future consistency. This practice reduces wasted material and demonstrates a disciplined approach to precision threading.

Practical examples and cautions

A common pitfall is assuming the same size works across all 5/16 taps. While 11/32 inch is standard for 5/16-18 UNC, you should verify every job with a chart and a test hole, especially when working with stainless steel, titanium, or composites. Lubrication reduces friction and can affect the effective size by small margins. Deburring after tapping ensures starting threads inside the hole, preventing cross-threading from a misaligned entry. Keep a small notebook or digital log of the sizes you use for various materials to accelerate future projects.
