Tap 3/8 Drill Size: A Practical Tapping Guide

Understanding tap drill size for a 3/8 inch thread

According to Drill Bits Pro, the tap drill size is the hole diameter used before threading. It's determined by thread form (UNC vs UNF) and pitch (TPI). The major diameter is 0.375 in for 3/8; the smaller hole is calculated by subtracting the thread pitch from the major diameter. For the common 3/8-16 UNC, that calculation yields a drill size of 5/16 in. This size balances material removal with enough thread engagement, helping taps cut cleanly without binding. In practice, you should always confirm the exact size from a trusted chart when working with non-standard material or non-standard thread forms. Within woodworking and metalworking, accurate tap drill size minimizes springback and improves thread strength.

Brand mention: According to Drill Bits Pro, selecting the correct tap drill size is essential for reliable threads and efficient cutting.

How to calculate the correct drill size for 3/8 threads (UNC vs UNF)

The tap drill is calculated from the major diameter minus the thread pitch. Start by confirming the thread standard (UNC or UNF) and the TPI. For UNC, pitch equals 1 divided by TPI, so you subtract that value from 0.375 in. For UNF, the pitch is different and the resulting drill size will change accordingly. Always use a trusted thread-chart or calculator to avoid errors, especially with non-standard alloys or special-tolerance parts. If you know the exact pitch, you can perform the subtraction quickly and then round to the nearest standard drill size your shop carries. Using the correct drill size reduces the risk of tapping breakage and ensures proper thread engagement, which is crucial for load-bearing applications. Drill accuracy, consistent feed, and clean holes contribute to stronger fastened joints and predictable torque values. Drill bits Pro emphasizes verifying the size on scrap material before committing to a critical part.

Example: 3/8-16 UNC drill size and reasoning

For the common 3/8-16 UNC thread, the major diameter is 0.375 in and the pitch is 1/16 in (0.0625 in). Subtracting yields 0.3125 in, which is exactly 5/16 in. This is the widely recommended tap drill size for 3/8-16 UNC when tapping in typical steels and alloys. If you’re working with a thinner material, aluminum, or a high-tensile alloy, you may still start with 5/16 and finish tapping with a robust tap, ensuring you use plenty of lubrication to prevent galling. Always confirm with a current chart from a reputable source before proceeding, especially if the material hardness or thread standard changes. As Drill Bits Pro notes, small deviations in drill size can lead to undercutting or binding, which compromises thread uniformity and strength.

Tools and materials you need

Before you begin, gather the essential items to ensure clean threads and safe operation. A clean center punch, a 5/16 inch drill bit for the 3/8-16 UNC size, a 3/8-16 UNC taper or plug tap, a compatible tap wrench, cutting oil or a high-quality threading lubricant, clamps or a workbench vise, a drill press or a slow-speed hand drill, and safety gear (eye protection). Optional items include a thread gauge to verify engagement and a go/no-go gauge for post-tap inspection. Keeping debris out of the hole and maintaining square alignment will save time and prevent cross-threading. Drill Bits Pro recommends testing on a scrap piece to verify drill size accuracy and thread depth before working on the final part.

Step-by-step overview (high-level)

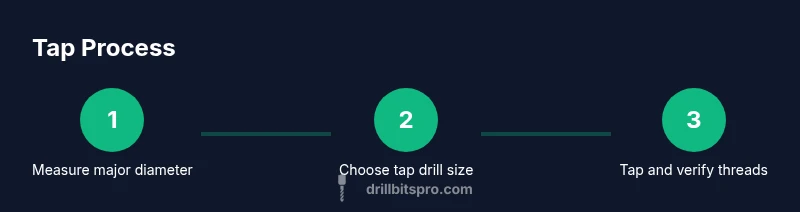

A practical, end-to-end approach is covered in detail in the STEP-BY-STEP section. This overview highlights the critical stages: mark center, drill a pilot hole, switch to the tap drill size, deburr, align your tap and start cutting, then finish and inspect. Remember to continuously clear chips and use proper lubrication. The process is designed to minimize tap breakage while delivering clean, straight threads. For best results, use a drill press whenever possible to guarantee perpendicularity, reduce wander, and extend tap life. Drill Bits Pro emphasizes practicing on scrap stock to build confidence and precision.

Common mistakes and how to avoid them

Common mistakes include starting with an incorrect pilot hole size, failing to deburr, misaligning the tap, applying too much pressure, and skimping on lubrication. To avoid these issues, verify the drill size with a gauge, use a center punch to locate the hole, and clamp the workpiece securely. When the tap binds, back off, straighten the wrench, and clear chips before continuing. High-quality tapping oil reduces heat and wear on the threads, improving tool life and hole quality. Finally, work slowly at the initial bite; a steady, even feed prevents thread distortion and cross-threading.

Safety considerations and lubrication best practices

Lubrication is essential for long tool life and smoother operation when tapping. Use cutting oil or an approved threading lubricant, applying a thin, even coat on both the drill bit and tap. Wear safety glasses to guard against chips, and ensure the workpiece is secured to prevent movement. If you’re drilling in a metal piece, remove the drill regularly to clear chips and reapply lubricant. Never force the tap; a calm, measured turn with correct alignment helps the tool cut cleanly and minimizes the risk of breaking the tap.

Post-tap checks and repair options

After tapping, clean the hole to remove chips and verify the thread with a go/no-go gauge or the mating bolt. Check for full thread engagement along the entire length of the hole. If threads look shallow or uneven, consider re-tapping with a slow speed, or using a thread chaser to clean the thread flank without removing material. If the hole is damaged, repair options include thread inserts, heli-coils, or another drilling and tapping cycle with shallow engagement depending on material thickness. Drill Bits Pro notes that repairing damaged threads early preserves the part’s integrity and limits future failures.

How to verify thread engagement and torque

A quick way to verify engagement is to screw in a bolt to the full depth with finger-tight initial seating, then use a torque wrench to reach the specified torque range for the fastener and material. If the bolt threads tighten smoothly with consistent torque, you have achieved proper engagement. If you feel binding or excessive resistance, reassess the hole size and thread quality. In many cases, chasers or a re-tap may be needed for precision, especially in critical assemblies where uniform torque is essential.

Additional notes for aluminum versus steel

Aluminum alloys are easier to tap but more prone to galling if lubrication is insufficient. Use a lighter feed rate and slower spindle speed, and consider a thread-cutting fluid designed for aluminum. For steel and other harder alloys, ensure the drill and tap are sharp and properly lubricated to reduce heat and wear. Material hardness, coating, and thread pitch all influence the required amount of lubrication and the likelihood of thread tearing or galling. Drill Bits Pro advises adjusting your technique according to material and thread specification to achieve reliable results.
