Do You Need to Pre-Drill for Masonry Screws?
Learn when to pre-drill for masonry screws, choose the right bits, and drill safely. This practical guide from Drill Bits Pro covers pilot holes, screw choices, and common masonry scenarios.
In most masonry installations, you should pre-drill a pilot hole before driving masonry screws. The hole should match the screw core and depth to accommodate the full length. For solid brick or concrete, use a hammer drill with a masonry bit; check if your screw is self-tapping or needs a traditional pilot hole.
Understanding why pre-drilling matters
When you work with masonry, driving screws without a pilot hole can cause micro-cracks, cracked plaster, or a loose hold. The classic question—do you need to pre drill for masonry screws—often has a straightforward answer: yes, in most cases you should start with a pilot hole. The hole acts as a guide, reduces stress on the substrate, and creates a clean channel for the screw threads to bite. According to Drill Bits Pro, pilot holes help distribute load more evenly and prevent the screw from binding in hard material. This guidance applies across brick, concrete, and mortar joints, though the exact hole size varies with material and screw type. In 2026, new drill-bit designs and masonry screws have improved performance, but the core principle remains the same: prepare the hole before driving.
To maximize holding power, you should consider the substrate you're drilling into, the screw diameter, and the material's hardness. The Drill Bits Pro team emphasizes checking the screw’s core diameter and selecting a bit that matches or slightly exceeds that measurement. If you’re unsure, start with a pilot hole a touch smaller than the screw core and widen if needed. Always wear safety gear and work in a well-ventilated area to manage dust and debris.
Why the type of masonry matters
Concrete is harder than most bricks, and old mortar behaves differently than fresh mortar. When you ask, what’s the best approach for masonry screws, the answer is often dependent on whether you’re drilling into solid concrete, hollow brick, or brick with a concrete backer. In soft mortars, you may get away with a lighter pilot hole, but for structural applications or heavy loads, a properly sized pilot hole is crucial. The intent is to give the screw a path to follow and to reduce resistance that can strip threads or overdrive the screw. This is especially important for longer screws that create significant withdrawal forces. The key takeaway is structuring your hole to match the screw’s core diameter and intended depth.
How to interpret manufacturer guidance
Many masonry screws specify a recommended pilot-hole diameter in their product literature. Always consult the manufacturer’s instructions before starting. If the guidance isn’t explicit, use a standard rule of thumb: choose a hole diameter close to the screw’s core, not its outer thread. In practical terms, you’ll often use a masonry bit sized to match the screw’s core and drill to a depth equal to the screw length. In this way, the bit and screw work together for maximum grip while minimizing material damage. This approach aligns with what Drill Bits Pro observes across common masonry jobs, from anchoring shelves to securing heavy brackets.
noteIf you are drilling through tiles or into reinforced concrete, adjust your plan accordingly and consider using specialized anchors or expansion bolts.
requiredColumnOnly
Tools & Materials
- masonry drill bits(Carbide-tipped bits are preferred for durability in concrete or brick.)
- hammer drill(Set to hammer mode; keep the drill perpendicular to the surface.)
- masonry screws(Choose screws sized for the pilot hole and load requirements.)
- screwdriver or impact driver(Use a driving bit compatible with the screw head.)
- safety gear (eye protection, dust mask, gloves)(Protect your eyes from debris and control dust exposure.)
- broom or shop vacuum(Clean out dust from hole for better bite.)
- depth stop or tape(Helps control drilling depth to match screw length.)

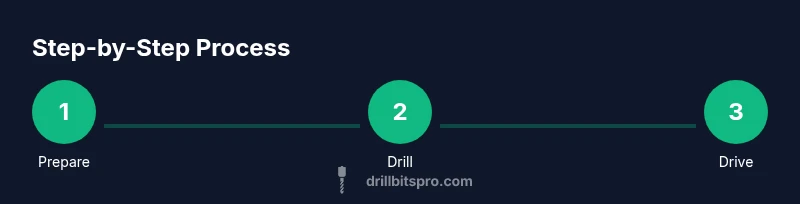

Steps
Estimated time: 30-45 minutes
- 1
Prepare materials and plan the hole
Inspect the substrate and choose screws of appropriate length and diameter. Verify you have a suitable masonry bit and a hammer drill. Mark the exact location and confirm no hidden utilities.
Tip: Double-check the screw length against the substrate thickness to avoid over- or under-driving. - 2
Mark the drilling depth
Apply a piece of tape at the intended depth on the drill bit or use a depth stop to prevent over- drilling. Accurate depth prevents screws from bottoming out or drilling too deep.
Tip: Depth accuracy saves material and improves holding power. - 3
Drill the pilot hole
Place the drill perpendicularly to the surface and drill to the marked depth using the masonry bit. Maintain steady pressure and let the drill do the work.
Tip: Use a slow, steady feed to avoid bit wandering and ensure a clean hole. - 4
Clear dust from the hole
Remove debris with a brush or shop vacuum. Dust inside the hole can reduce screw bite and seating depth.
Tip: A clean hole ensures the screw threads engage fully. - 5
Drive the masonry screw
Insert the screw and tighten gradually with the driver. Stop when the head is flush or seated to the required load.
Tip: Start slowly to prevent stripping threads; if resistance remains, back out and re-drill slightly larger. - 6
Inspect and test
Check that the screw is secure and flush. If it’s loose, assess whether the hole diameter is correct or if an anchor is required.
Tip: For heavy loads, consider a dedicated masonry anchor system.
Got Questions?
Do I always need a pilot hole for masonry screws?
Most masonry screws benefit from a pilot hole to prevent cracking and ensure proper bite. Self-tapping variants may work in some soft substrates, but following pilot-hole guidelines improves reliability.
Most masonry screws need a pilot hole to bite correctly in masonry.
What size should the pilot hole be for masonry screws?
The pilot hole should match the screw’s core diameter, not the outer thread. When in doubt, start with a hole slightly smaller than the core and test by driving a sample screw.
Choose a pilot hole that matches the screw’s core size.
Can I skip pre-drilling in soft concrete?
Even in soft concrete, a pilot hole helps the screw seat properly and reduces the chance of surface cracking. If the manufacturer recommends it, follow that guidance.
Skip the pilot hole only if the manufacturer explicitly says so.
What safety equipment should I use while drilling masonry?
Wear safety glasses, a dust mask, and gloves. Use hearing protection in loud environments and keep hands away from the drill bit.
Protective gear is essential for masonry drilling.
What should I do if the screw won’t bite?
Stop and re-check hole size and depth. Dust, debris, or an undersized pilot can prevent bite. Consider a slightly larger pilot hole or an appropriate anchor.
If the screw won’t bite, try rechecking the hole size and depth.
Are there alternatives to masonry screws for tough substrates?
For hollow masonry or reinforced concrete, consider anchors, expansion bolts, or chemical anchors designed for masonry. Always follow the manufacturer’s recommendations.
If screws can’t grip, use the recommended anchor system.
Watch Video
Top Takeaways
- Plan hole size to match screw core for best bite
- Use a masonry bit and hammer drill for hard substrates
- Clean the hole before driving to maximize grip
- Match pilot-hole depth to screw length to avoid over- or under-driven screws
- Consult manufacturer guidance for best results
