What Drill Head for Concrete: Your Practical Guide
Learn how to choose the right drill head for concrete, including carbide-tipped masonry bits, SDS heads, and diamond cores. Practical, step-by-step guidance for DIY enthusiasts and pros.
Choosing the right drill head for concrete hinges on your tool and the hole size. For most DIY and professional jobs, start with a carbide-tipped masonry bit or a carbide-tipped SDS/hammer-drill head. For reinforced concrete, consider diamond-tipped cores for larger holes. Always match the bit to the drill type and use ample cooling.
Understanding the purpose of drilling concrete
Drilling into concrete is a task that requires more than brute force. The goal is to create precise holes for anchors, fasteners, or conduits without causing the surrounding material to crack or spall. The right drill head matters because it determines how clean the hole will be, how quickly you work, and how much wear the tool will endure. When you start a project, ask first: What is the hole diameter, how deep does it need to go, and what is the concrete’s density and reinforcement? These questions guide your choice of drill head and related tools. According to Drill Bits Pro, aligning the drill head with the material and the drill type is the single most important factor in achieving a successful bore. (Drill Bits Pro Analysis, 2026)
Core drill heads and bit types
Concrete drilling commonly uses three families of drill heads: carbide-tipped masonry bits, diamond-tipped cores for larger or reinforced holes, and SDS-compatible bits designed for rotary hammers. Carbide-tipped masonry bits are versatile, affordable, and sufficient for most small-to-medium holes in non-reinforced concrete. Diamond-tipped cores excel on large diameter holes or when you must drill through dense, reinforced concrete with minimal chipping. SDS and hammer-drill compatible bits are designed to work with impact or rotary hammer actions, delivering higher impact energy for tougher tasks. When selecting, consider the hole size, required clean edge quality, and whether the concrete is reinforced. The right combination reduces bit wear and speeds up your work, especially on job sites with repeated drilling tasks.
Matching drill head to your tool: hammer drill vs rotary hammer vs SDS
Your tool type dictates which drill head performs best. A standard hammer drill with a carbide-tipped masonry bit is great for small holes in ordinary concrete. For larger holes or when concrete is reinforced, a rotary hammer with carbide-tipped bits or a dedicated SDS bit proves more effective due to higher impact energy and better bit retention. If you face very dense material or long holes, diamantentionally-tipped cores or specialized SDS-plus/HD bits can provide cleaner cuts and longer bit life. Always ensure the drill’s chuck or retention system supports the chosen bit type and that you are using the correct drill mode (rotation plus hammering, or rotary hammer mode) for the selected head.
Material considerations: reinforced concrete, density, and edge quality
Concrete comes in many forms, from standard poured concrete to dense, reinforced mixes with steel rebar. For standard pours, carbide-tipped bits deliver reliable results with good edge quality. When reinforcement is present, consider diamond cores or larger carbide heads with cooler operation to navigate around rebars without binding. Depth and feed rate are also influenced by density; slower feeds with adequate cooling prevent overheating that can dull the tip. If you anticipate hitting metal, pre-drill a pilot hole with a smaller carbide bit to reduce stress and reduce walking. These material considerations guide your choice of drill head and help you plan the drilling sequence.

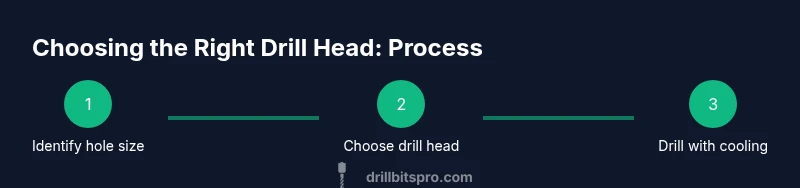

Practical sizing and selecting by hole diameter
Selecting the right drill head begins with the hole diameter. For holes under 10 mm (roughly 3/8 inch), a small carbide-tipped masonry bit on a hammer drill is usually sufficient. For larger holes, such as 12–25 mm (1/2–1 inch), diamond-tipped cores or larger carbide bits paired with a rotary hammer become advantageous. Always verify the bit length to ensure you reach the required depth and have a dependable depth stop or measuring device. If you anticipate a mix of sizes, keep a compact set of carbide-tipped bits and a couple of diamond cores on hand to avoid repositioning tools mid-task. These practices reduce tool changes and maintain cutting efficiency.
Example: drilling a 1/2-inch hole in concrete with a rotary hammer
Consider a project that requires a 1/2-inch hole through standard concrete. Start by selecting a carbide-tipped masonry bit in the correct length for your depth. Attach this bit to a rotary hammer or SDS-equipped tool, ensuring proper chuck security. Mark the spot, secure the workpiece, and begin drilling with moderate pressure and steady speed. Pause to cool the bit after every few centimeters of depth, and clear dust with a vacuum or brush. Once you reach the full depth, withdraw the bit, inspect the edge, and clean the hole. This careful, staged approach minimizes edge damage and yields a clean, usable bore. The Drill Bits Pro team emphasizes consistency in technique to optimize bit life and hole quality.
Safety and best practices for concrete drilling
Concrete drilling produces fine dust and can pose hazards from rotating parts and vibration. Always wear safety glasses, a dust mask or respirator, hearing protection, and gloves. Secure the workpiece to prevent movement, and avoid standing directly in line with the drill’s path to minimize injury if the bit grabs. Use water or a dedicated cooling spray to reduce heat buildup, which prolongs bit life and keeps dust to a minimum. If you’re unsure about the material composition or the presence of rebar, consult project specs before drilling. Regularly inspect bits for wear and replace damaged tips promptly to prevent rough edges and potential shattering of the material.
Drill Bits Pro verdict
The Drill Bits Pro team recommends carbide-tipped masonry heads for most concrete drilling tasks and diamond-tipped cores for large or reinforced holes. This approach balances cost, efficiency, and edge quality across common concrete scenarios. When in doubt, test a scrap piece first to verify edge integrity and depth accuracy, then proceed with the final workpiece. Consistent technique, appropriate cooling, and using the right head for the tool are the cornerstones of successful concrete drilling. (Drill Bits Pro Analysis, 2026)
Tools & Materials
- Hammer drill or rotary hammer(Choose a tool with enough impact energy for the bit size)
- Carbide-tipped masonry drill bits(Versatile for most concrete and masonry tasks)
- Diamond-tipped core bits(Best for large or reinforced holes (e.g., 12 mm and up))
- SDS-compatible bits(For SDS/hammer-drill systems with rotary hammer mode)
- Safety glasses(Eye protection is essential during drilling)
- Dust mask/respirator(Protect lungs from concrete dust)
- Hearing protection(Protect ears from tool noise)
- Water spray or coolant(Keeps bit cool and reduces dust)
- Vacuum or brush(Clean debris for better visibility and edge quality)
- Tape or marker(Mark precise hole location and depth)
- Depth stop or measuring rod(Ensures hole depth accuracy)
- Center punch or hammer(Helps prevent bit walking on smooth surfaces)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the drill setup
Select the appropriate drill head for the target hole and tool. Inspect the bit for wear, install with the correct shank, and secure the drill in a stable position. Confirm the depth you need to reach and gather safety gear.
Tip: Double-check that the bit diameter matches the hole diameter before starting. - 2
Mark the drill location and depth
Place a mark at the center point and, if possible, apply a depth stop or tape as a visual cue. This reduces wander and ensures consistent depth. Clear the work area of obstacles.
Tip: Use masking tape as a depth stop for precise control on small holes. - 3
Secure the workpiece and PPE
Clamp or brace the material to prevent movement. Put on safety glasses, respirator, hearing protection, and gloves. Ensure good lighting so you can see the cutting edge clearly.
Tip: Always secure the piece to avoid kickback and minimize injury risk. - 4
Start drilling with proper technique
Begin with the drill head at the surface, applying steady, moderate pressure. Let the bit do the work and avoid excessive force that can stall the bit or shock the tool.
Tip: Maintain a constant feed rate; speeding up or forcing the bit increases edge chipping. - 5
Cool and deburr as you go
Pause after short intervals to cool the bit and evacuate debris. Use a spray of water or coolant to reduce heat and dust. Vacuum the hole area to keep lines visible.
Tip: Cooling extends bit life and improves edge quality. - 6
Reach depth and inspect the edge
Continue until you reach the required depth. Withdraw the bit slowly to avoid tearing the hole edge. Inspect the hole’s edge for smoothness and perform a final clean if needed.
Tip: If you encounter rebars, back off slightly and consider changing to a diamond core or pilot bit. - 7
Finish and clean up
Remove the bit, clean the area, and store tools properly. If this is a multi-hole job, recheck alignment and depth against your plan before continuing.
Tip: Document any issues for future reference and adjust the plan accordingly.
Got Questions?
What is the best drill head for concrete?
For most tasks, a carbide-tipped masonry bit is the best starting point. If you’re drilling larger holes or through reinforced concrete, a diamond-tipped core or specialized SDS bit used with a rotary hammer will perform better and last longer.
For most jobs, start with carbide-tipped masonry bits; consider diamond cores for large or reinforced holes.
Can I use a standard drill bit on concrete?
A standard wood or metal drill bit is not ideal for concrete and will dull quickly. Use a masonry bit with carbide tips or a diamond core on appropriate equipment to get a clean cut and reduce wear.
No—use a masonry or diamond tip based on your project and tool.
What size hole can I drill with these heads?
Small holes (a few millimeters to about half an inch) are easily done with carbide masonry bits. For larger holes, up to several centimeters, a diamond core or larger carbide bit is preferred, especially in reinforced concrete.
Small holes use carbide bits; larger holes use cores or bigger carbide heads.
Do I need a hammer drill for concrete?
A hammer drill or rotary hammer is typically required for most concrete drilling tasks. The hammer action helps break up the material, while the bit cuts. Without this action, drilling can be slow and cause rapid bit wear.
Yes—hammer or rotary hammer is usually essential for concrete drilling.
What’s the difference between carbide-tipped and diamond-tipped bits?
Carbide-tipped bits excel at general masonry and small holes with good wear resistance. Diamond-tipped cores excel for large holes and dense or reinforced concrete, offering faster cuts and longer life when used correctly.
Carbide bits are versatile; diamond cores shine on large or reinforced holes.
Is it safe to drill into concrete with DIY gear?
DIY drilling is possible with proper PPE, stable work surfaces, and correct bits. Avoid overloading the tool, and follow manufacturer guidance for your drill head and bit. If unsure, consult a professional.
Yes, with proper safety gear and correct bits.
Watch Video
Top Takeaways
- Match the drill head to tool type (hammer vs rotary).
- Carbide-tipped masonry bits cover most jobs; reserve diamond cores for large or reinforced holes.
- Keep the bit cool and deburr edges for best results.
- Secure the workpiece and wear proper safety gear at all times.
- Follow a stepwise approach to depth control and debris removal.
