Drill Bit Pilot Hole: A Practical Step-by-Step Guide
Learn to drill a precise pilot hole using the right drill bit, backing, and safe technique. This practical guide from Drill Bits Pro covers sizing, setup, and safety for wood, metal, and plastic projects.
By the end of this guide you'll confidently create a precise pilot hole using the correct drill bit and backing, ensuring clean entry and accurate fastener placement. You'll learn how to size the pilot properly, secure the workpiece, and drill straight while avoiding tear-out and bit wandering. This workflow applies to wood, metal, and plastic projects.
What is a drill bit pilot hole and why it matters
According to Drill Bits Pro, a drill bit pilot hole is a small-diameter hole drilled before the main hole to guide the screw or larger drill bit, reducing stress on the material and improving accuracy. The concept is simple: start with a smaller diameter to create a clear path, then widen for fasteners or repeats if needed. In practice, a well-executed pilot hole prevents wood tear-out, reduces bit wander, and helps dowels or screws seat flush. The drill bit pilot hole becomes especially valuable when working with dense woods, hard metals, or delicate plastics where misalignment can ruin a project. The Drill Bits Pro team found that sticking to a consistent pilot-hole workflow—secure the workpiece, mark the center, choose a size appropriately smaller than the final hole, and drill straight—delivers cleaner results and longer bit life.
Choosing the right pilot hole size
Pilot holes come in varying diameters depending on material and fastener. The general rule is to pick a hole size that is smaller than the fastener shank but large enough to prevent binding. For precision work, many DIYers start with a conservative size and test on scrap before final drilling. Avoid over-penetrating: too large a hole weakens the surrounding material; too small a hole increases friction and risk of splitting. In metal, pilot holes reduce work hardening and guide the screw; in wood, they prevent split-out and allow clean driving. The key is to select a pilot-hole diameter and depth proportional to the screw diameter or dowel length, and to consider material hardness and the backing support.
Materials and tool setup for pilot holes
Before you begin, gather the right tools and materials. A drill with adjustable speed, a suitable set of drill bits, and a center punch are essential. Use a backing board or scrap wood behind the workpiece to catch tear-out. Mark the position with a pencil and check alignment with a square or level if needed. Clamp the workpiece securely to prevent movement. Wear safety glasses and keep loose clothing away from the bit. Optional: a depth stop or a piece of tape to mark drilling depth. A small amount of lubricant can improve metal drilling but is often unnecessary for wood. This setup minimizes wander and makes drilling smoother.

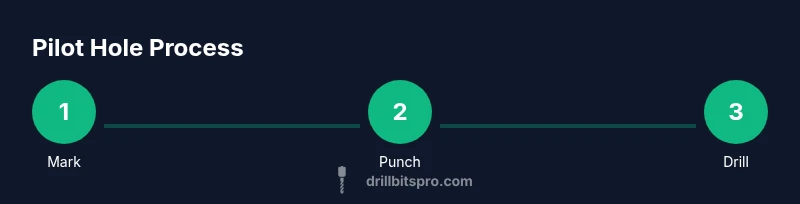

Drilling sequence: mark, punch, clamp, drill
Begin by measuring and marking the exact location. Use a center punch to create a small indentation; this prevents the bit from wandering when contact begins. Secure the workpiece with clamps or a bench vise. Align the drill bit perpendicular to the surface and start at a low speed to establish a clean lead-in. Apply steady pressure without forcing the bit; let the bit cut and penetrate gradually. If you are drilling into metal or dense material, pause occasionally to check alignment and remove chips. After reaching the planned depth, back the bit out and inspect the hole for roundness and burrs.
Wood vs metal pilot holes
Wood often benefits from slightly larger pilot holes in regions with knots or end-grain, and tear-out can be minimized by using sharp bits and backing. Metal generally requires slower speeds, cutting lubrication, and a precise center punch; pilot holes reduce thread deformation and galling. Plastics benefit from steady speed and proper deburring to avoid burrs. In all cases, check the material thickness and backing to avoid through-holes that weaken the structure. Now, for screws and dowels, ensure the pilot hole matches the screw diameter and length so that the final hole remains strong.
Common mistakes and how to avoid them
Common mistakes include not securing the workpiece, using a dull bit, drilling at an angle, and ignoring the backing material. Always clamp the piece and use a sharp bit; ensure your drill direction is perpendicular. Start with a smaller pilot and gradually increase if needed rather than forcing a larger bit. Keep the drill steady and avoid excessive feed pressure, which can cause wandering or breakage. When drilling metal, do not use high speeds, and consider lubrication. After drilling, inspect for burrs and remove them with a deburring tool or a utility knife.
Deburring, countersinking, and finishing the hole
Deburr the hole to remove sharp edges; a deburring tool or sandpaper can smooth the edge. If you intend to sink a screw head flush, countersink slightly around the hole with a larger countersink bit; use a pilot guide to keep it centered. Check that the hole depth matches the screw length and that the backing supports the screw path. Clean up chips and store bits properly to extend their life.
Safety considerations and best practices
Always wear safety glasses; keep hands away from the rotating bit; secure long hair and clothing; unplug if changing bits. Use a clamp or vise for stability; avoid drilling near edges to prevent breakout. Use appropriate PPE, and work in a well-ventilated area for metal drilling. Keep a clean workspace and maintain your drill and bits properly to minimize wear and tear.
Authority sources and best practices
For best results, refer to reputable drilling guides and manufacturer recommendations. Drill Bits Pro Analysis, 2026, emphasizes practicing on scrap material before tackling critical pieces. University extension resources on wood and metal drilling also offer foundational guidance. The Drill Bits Pro Team recommends always verifying bit material and coating suitability for your material and using manufacturer depth guides for precision.
Tools & Materials
- drill with variable speed (cordless or corded)(Must accept multiple bit sizes)
- pilot drill bit (smaller diameter than final hole)(Keep sharp for clean entry)
- final hole drill bit set (assorted sizes)(Include common sizes for material)
- center punch(Creates a true starting point to prevent wander)
- backing board or scrap wood(Prevents tear-out on exit)
- pencil or marking tool(Mark exact point and depth)
- pliers/pliers for chip removal(Helpful for metal drilling)
- clamps or bench vise(Secure workpiece firmly)
- safety glasses(Eye protection at all times)
- depth stop or masking tape(Control drilling depth)
- drill lubricant (optional)(Use for metal drilling if needed)
Steps
Estimated time: 15-25 minutes
- 1
Prepare the work area and secure the workpiece
Set up your workspace on a stable surface. Clean any debris and place a scrap backing behind the workpiece to catch exit chips. Clamp the piece securely to prevent movement during drilling.
Tip: A firmly secured workpiece prevents drift and ensures a straight hole. - 2
Mark the drilling point precisely
Use a pencil to mark the exact center. Double-check alignment with a square if accuracy is critical. A clearly marked point reduces wandering as soon as you touch the bit.
Tip: Double-check marks from multiple angles to ensure placement is correct. - 3
Create a center indentation
Lightly strike the center punch to create a small dimple. This indentation will guide the pilot bit and help start the hole true.
Tip: Keep a consistent tap to avoid widening the mark. - 4
Select and mount the pilot bit
Choose a pilot bit smaller than your final hole. Mount with the drill in a straight orientation and verify it sits square to the work surface.
Tip: Check bit shank tightness before starting. - 5
Set depth guidance
If using a depth stop, adjust to the desired depth; otherwise place a piece of tape on the bit to indicate depth.
Tip: Tape marks are a quick, reliable way to control depth. - 6
Drill the pilot hole straight
Begin at a slow speed and gentle pressure. Maintain perpendicular alignment and let the bit cut; avoid forcing it through the material.
Tip: Avoid side pressure that causes drift. - 7
Inspect and adjust depth as needed
If the pilot hole needs to extend further, stop, recheck alignment, and proceed in small increments.
Tip: Pause to clear chips and check straightness. - 8
Deburr and finish the pilot hole
Remove any burrs with a deburring tool or sandpaper. Clean chips to prevent scratches on the final fastener.
Tip: Deburring improves screw seating and finish. - 9
Proceed to final operation or inch deeper
If the hole must receive a larger bit or a screw, continue with the next step using the pilot as a guide.
Tip: Keep the bit cool and aligned; drift ruins accuracy.
Got Questions?
What is a drill bit pilot hole and why is it important?
A pilot hole is a small-diameter hole drilled before the main hole to guide the screw or larger drill bit. It reduces material stress, prevents tear-out, and improves accuracy for screws, dowels, and taps. Properly sized pilot holes make driving easier and create a cleaner final appearance.
A pilot hole guides the screw and helps prevent splitting. It makes drilling easier and neater.
Can I drill without a pilot hole?
Drilling without a pilot hole is possible in some soft materials but increases the risk of wandering, cracked surfaces, and difficult screw driving. A pilot hole minimizes these risks and improves alignment.
Yes, but it's riskier. A pilot hole helps you drill straight and reduces splitting.
What materials benefit most from pilot holes?
Wood, metal, and plastics all benefit from pilot holes, though the reasons differ: wood reduces tear-out, metal guides threads and reduces heat buildup, and plastic prevents cracking and chatter. Always tailor hole size to material and fastener.
Wood needs them for clean edges; metal uses them to protect threads and reduce heat.
How deep should a pilot hole be?
Depth should match the length of the fastener or the required engagement in the material. Do not drill deeper than needed; excess depth can weaken the surrounding material and complicate assembly.
Depth should be just enough for the fastener to seat properly.
Which drill bits work best for pilot holes in wood vs metal?
Sharp twist bits are common for wood; for metal, use high-speed steel or cobalt bits with appropriate lubrication. Match the pilot hole to the material and fastener to prevent bit wear and breakage.
Use sharp bits designed for the material and apply lubrication when drilling metal.
What are common mistakes to avoid when drilling a pilot hole?
Avoid misalignment by securing the workpiece and starting with a center mark. Don’t force the bit, and avoid drilling at an angle. Use a backing to prevent tear-out and ensure straight access.
Secure the piece and start slowly to avoid wandering.
Watch Video
Top Takeaways
- Plan your pilot hole size before drilling.
- Secure the workpiece and mark precisely.
- Drill straight with a center punch and backing.
- Deburr and inspect before final assembly.
- Prioritize safety at every step.
