Do You Need to Drill a Pilot Hole? A Practical Guide
Learn when and why you should drill a pilot hole, how to choose the right size, and step-by-step techniques for wood, metal, and plastic. This expert guide from Drill Bits Pro covers common scenarios, safety tips, and troubleshooting to prevent wood splitting and screw binding.
Do you need to drill a pilot hole? In most woodworking and metalworking projects, a pilot hole improves accuracy and reduces splitting. The answer depends on material, screw size, and bit type. Drill Bits Pro notes that starting with a small pilot hole for soft woods and matching diameter to the screw shank yields clean, precise results.
Do you need to drill a pilot hole?
When you ask, “do you need to drill a pilot hole,” you’re asking whether a small initial bore will help guide the screw and prevent material damage. A pilot hole is a pre-drilled starter hole that guides the screw, reduces resistance, and minimizes splitting or cracking. For many DIY projects—especially with wood—using a pilot hole leads to straighter screws, cleaner holes, and less wear on bits. For metal and plastics, pilot holes can prevent thread stripping and wandering. According to Drill Bits Pro, the best practice is to tailor the pilot hole to the material and screw type rather than applying a one-size-fits-all rule. This approach minimizes chip-out, improves joint strength, and speeds up assembly without sacrificing quality.
When to use pilot holes in wood
Wood is the most common material where pilot holes matter. In softwoods, a small pilot hole helps the screw bite and reduces surface splitting near the entry. In hardwoods, you’ll typically use a larger pilot hole to prevent the wood from crushing or splintering around the screw shank. Always consider the grain direction; drilling perpendicular to changing grain minimizes tear-out. For delicate veneers or pre-finished boards, pilot holes are especially important to avoid telegraphing through the surface. Use a brad-point bit or a standard twist bit designed for wood, and avoid twisting too aggressively to prevent wandering.
Pilot holes in metal and plastics
Metal screws often require pilot holes to prevent thread stripping and to reduce friction. For thin metals, a smaller pilot hole aligned with the screw core helps you seat the fastener without tearing the material. In plastics, pilot holes can prevent material creep and heat buildup during driving; however, some flexible plastics tolerate slightly larger holes. Start with a conservative hole size and test on a scrap piece when possible. Center punching marks help keep the bit from wandering on metal surfaces, especially when starting a hole.
How to select the right pilot hole size (no guesswork)
Choosing the right pilot hole size is a balance of material hardness, screw diameter, and desired clearance. Start with a hole that’s slightly smaller than the screw’s outer thread diameter, then adjust if you notice resistance or wobble. For hardwoods, a smaller hole in the early portion of the screw can prevent cracking near the entry, while a longer, slightly larger hole aids deeper seating. If you’re unsure, begin with a conservative hole and test on scrap material before committing to the final piece.
Marking, punching, and starting the hole
Preparation matters. Mark the hole location clearly with a pencil and use a center punch to create a small dimple. This prevents the drill from sliding on smooth surfaces. Clamp the workpiece securely to avoid movement, then begin with a light, straight drill at a moderate speed. A clean start reduces wandering and improves accuracy. For dense materials, use lubricant or cutting fluid to manage heat buildup and prolong bit life.
Drilling technique: straight and steady, with depth control
Keep the drill perpendicular to the work surface for the entire hole. Let the bit do the work; don’t force the drill through the material. If you need a deeper hole, periodically back the bit out to clear chips and prevent binding. For bundles or thick stock, you may want to drill in stages—start with a smaller pilot and progressively widen to the final diameter. A depth stop or a piece of masking tape on the bit can help you limit depth and avoid drilling too deep.
Edge cases: edges, corners, and fragile stock
Hitting an edge or corner increases risk of tear-out. When near an edge, drill a slightly larger pilot hole first to reduce the chance of splitting. If the material is very fragile (like veneer), consider pre-drilling two holes in scrap material to test your approach before working on the final piece. If you’re driving long screws into narrow stock, use a pilot hole to guide the threading without splitting the surrounding material.
Safety, maintenance, and best practices
Always wear eye protection and secure your workpiece. Keep bits sharp; a dull bit requires more force and can wander. Use the correct drill bit for the material. Check your screws’ length relative to stock thickness to ensure the hole depth accommodates the screw fully. After finishing, inspect the joint for splits or misalignment and adjust your technique for future projects.
Quick-reference: what to remember (practice guide)
Always assess material type, screw size, and edge distance before drilling. Start with a conservative hole size, drill straight, and test on scrap. Use center punches for starting points, clamp stock firmly, and verify depth with a simple stop. With the right bit and technique, pilot holes save time and improve outcomes.
Tools & Materials
- Center punch(Marks the start point to prevent bit wandering)
- Pencil or marking knife(Clear hole location and grain orientation)
- Clamp or vise(Secure workpiece to prevent movement)
- Drill/driver with variable speed(Adjust speed for material type)
- Wood/metal/plastic drill bits(Choose bits suited to material (Brad-point for wood))
- Center punch aid for metal(Helps start hole cleanly on metal)
- Countersink bit (optional)(Create flush screw seating when needed)
- Scrap stock for testing(Test hole size and fit before final work)
- Safety glasses(Protect eyes from chips)

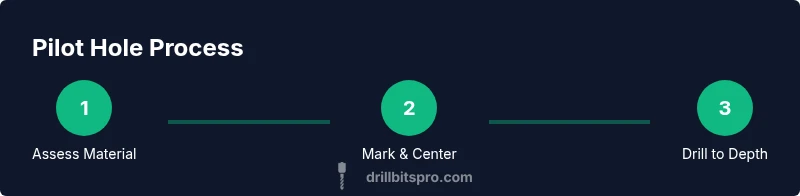

Steps
Estimated time: Total time: 25-45 minutes (depending on material and hole count)
- 1
Assess material and screw size
Identify the material type and screw dimensions to guide hole size. Acceptable guidance varies by wood vs metal, and by the screw diameter and length. This planning minimizes later adjustments and waste.
Tip: Always test on scrap material first to validate your planned hole size. - 2
Mark location and secure stock
Use a pencil to mark the hole location and apply a center punch if working with metal or smooth wood. Clamp the piece securely to prevent movement during drilling.
Tip: A tight clamp reduces drift and increases accuracy. - 3
Choose the pilot hole size
Select a hole diameter just smaller than the screw’s outer thread. This helps the screw bite cleanly without creating a stress riser that splits the material.
Tip: If unsure, start with a smaller hole and test with a scrap piece. - 4
Start drilling straight
Begin with a shallow pilot hole and maintain a perpendicular angle to the surface. Use steady pressure and let the bit do the work.
Tip: Pause to check alignment if you notice wobble. - 5
Drill to the final depth
Continue drilling to the needed depth, clearing chips as you go. Stop when you reach the desired depth using a depth stop or tape on the bit.
Tip: Avoid forcing the drill to prevent bit deflection. - 6
Inspect the pilot hole
Examine the hole for clean edges and depth. A clean exit indicates proper guidance for the screw.
Tip: If edges are rough, use a countersink to tidy the entry. - 7
Drive the screw slowly
Begin driving the screw and monitor for chatter or misalignment. Stop if you notice binding or deformation of the material.
Tip: Back out and realign if the screw binds. - 8
Finish and test fit
Drive the screw fully and inspect the joint for tightness and alignment. Repeat on remaining holes as needed.
Tip: Test on scrap before committing to the final piece. - 9
Post-work inspection and cleanup
Remove clamps, clean work surface, and check all joints for consistency. Store bits properly to maintain their edge.
Tip: Sharpen or replace dull bits to keep edges clean.
Got Questions?
Do you always need a pilot hole for screws?
Not always, but pilot holes are highly recommended for wood to prevent splitting and for metal to avoid thread damage. For very small screws or thin plastics, a pilot hole may be optional. Assess material and screw size to decide.
Pilot holes are usually a good idea for wood and metal, especially with larger screws, but small screws or very thin plastics can sometimes skip them.
How do I know what size pilot hole to use?
The hole should be smaller than the screw’s outer diameter but large enough for the screw to bite into the core. When in doubt, start smaller and test on scrap material before finishing.
Start with a hole a bit smaller than the screw’s outer threads and test on scrap material before drilling the final piece.
Can I skip a pilot hole in hardwoods?
Hardwoods usually require pilot holes to prevent splitting, especially near edges. Use a bit size that matches the screw core and proceed slowly.
In hardwoods, pilot holes are typically essential near edges to prevent cracking.
What happens if I drill too large a pilot hole?
A hole that's too large can allow the screw to wiggle or fail to seat firmly. In some cases, use a larger screw or a wood insert to restore grip.
If the hole is too big, the screw may not hold well, and you might need a longer or larger screw or a different method.
Watch Video
Top Takeaways
- Plan by material and screw size before drilling
- Mark and clamp securely to prevent drift
- Choose a pilot hole that matches screw core, not threads
- Drill straight and test on scrap before final assembly
- Inspect holes for clean edges and depth
