Drill with Chuck: Step-By-Step Guide for DIYers
Learn how to select, size, install, and safely use a drill with chuck for wood, metal, and masonry projects. This 1800-word guide covers tools, step-by-step drilling, tips, and safety to help DIYers and professionals.
With a drill that has a workable chuck, you can securely hold bits and complete a wide range of projects. According to Drill Bits Pro, this guide shows how to choose the right chuck, install and clamp bits, adjust speed, and drill safely into wood, metal, or masonry. Follow the steps for accurate, clean holes every time.
Why a drill with chuck matters for DIY projects
The drill with chuck is the core tool for fast, reliable bit changes and secure holemaking. A solid chuck minimizes bit wobble, reduces slip, and keeps your work safe. For DIYers and pros, understanding how the chuck grips the bit helps you predict performance across wood, metal, and masonry. Drill Bits Pro analysis shows that a well-maintained chuck translates to fewer failed holes and smoother finishes over time.
How chucks work: keyed vs keyless
Chucks come in two main styles: keyed and keyless. A keyed chuck uses a small steel key to tighten or loosen the grip, providing extra torque for dense materials. A keyless chuck relies on friction and a self-tightening mechanism, making bit changes quicker for most DIY tasks. Both types connect to the spindle, but their grip behavior and maintenance needs differ.
Chuck sizes and bit compatibility
Most handheld drills use a standard 1/4-inch or 3/8-inch capacity in the chuck, with larger machines offering 1/2-inch or more. Bit shanks come in several diameters; the key rule is to choose a bit whose shank matches the chuck opening and grip type. When in doubt, measure the shank and verify the chuck’s maximum capacity before forcing a fit.

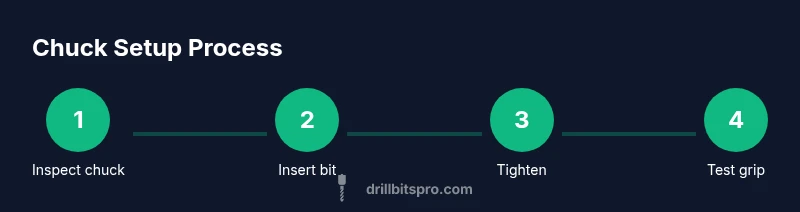

Installing and tightening bits correctly
Start by cleaning the chuck jaws to remove dust. If using a keyed chuck, insert the key and snug the bit in just until it seats. For keyless chucks, hold the bit centered and twist the collar clockwise until it’s tight. Always test the bit by applying light pressure and a gentle spin before drilling; a misaligned bit will wander.
Speed, torque, and feed: dialing in for clean holes
The speed and torque you choose depend on material and bit size. In wood, higher speed with steady pressure usually yields clean holes; metal benefits from slower speeds and even feed to reduce heat. Masonry requires a bit designed for concrete and consistent pressure, with frequent pecking actions to clear dust.
Workholding and safety basics
Secure the workpiece with clamps or a vise to prevent movement. Use a sacrificial backing when drilling through thin stock to prevent tear-out. Always wear eye protection and dust mask as needed, and keep hands away from the rotating chuck and bit. Maintain a clean, organized workspace to reduce mishaps.
Material-specific drilling tips
Wood: use sharp bits and a backing board; pilot holes reduce splitting. Metal: center punch to prevent wandering, lubricate when drilling to reduce heat; Masonry: use a carbide-tipped masonry bit and a hammer drill if required.
Common problems and quick fixes
If the bit slips, reseat and tighten the chuck; avoid excessive force. If the hole wanders, start with a pilot hole or marks; check the bit for dull edges. If the chuck overheats, pause, allow cooling, and apply cutting oil for metal tasks.
Tools & Materials
- Drill with chuck(A handheld drill with a functional chuck (keyed or keyless).)
- Assorted drill bits (wood, metal, masonry)(Include sizes from 1/16)
- Center punch(For metal or to mark holes for accurate drilling.)
- Clamps or vise(Secure workpiece to prevent movement.)
- Safety glasses(Eye protection from chips and debris.)
- Tape measure/marking tools(Precise hole location and depth marking.)
- Lubricant or cutting oil(Optional for metal drilling to reduce heat and wear.)
- Backing material (sacrificial scrap)(Prevents tear-out on thin stock.)
- Shop rag or brush(Clean chuck and bits between setups.)
Steps
Estimated time: 45-60 minutes
- 1
Inspect equipment
Check the drill, chuck, and bits for wear or damage. Clean debris from the jaws and verify the chuck opens and closes smoothly. Confirm PPE is available and clear the work area of obstacles.
Tip: If you see a nick or burr on the bit, replace it before proceeding. - 2
Select and insert the bit
Choose the correct bit for the material and hole diameter. Remove any old bit, insert the new bit into the chuck, and center it before tightening. If using a keyed chuck, attach the key and snug the bit until it seats.
Tip: Always center the bit to prevent wandering. - 3
Secure the workpiece
Clamp the workpiece firmly to a stable surface or vise. Use a sacrificial backing if drilling through thin stock to reduce tear-out. Ensure the setup cannot move when pressure is applied.
Tip: Double-check clamps for tightness before starting. - 4
Set speed and depth
Choose an appropriate speed for the material and bit size. Decide on a drilling depth, and mark the workpiece to guide depth control. Avoid forcing the drill to go faster than the bit can handle.
Tip: When in doubt, drill a shallow pilot hole first. - 5
Begin drilling with light pressure
Start the drill at a slow speed, allowing the bit to bite into the surface. Maintain a steady, moderate feed and let the bit do the cutting. Pause if you notice excessive heat or smoke.
Tip: Keep hands away from the rotating chuck during startup. - 6
Drill to depth and withdraw
Drill to the final depth with consistent pressure. Retract the bit slowly while the drill is still running to clear chips. Stop and inspect the hole for straightness and finish.
Tip: Use a pilot hole for larger diameters to minimize breakout. - 7
Inspect and clean up
Remove the workpiece and inspect the hole for accuracy and clean edges. Wipe away chips and debris from the chuck and bits. Apply cutting oil or lubrication if drilling metal, then reset for next hole.
Tip: Wipe the chuck jaws after session to prevent debris buildup. - 8
Maintenance and storage
Clean the chuck, bits, and drill exterior. Store bits in a dedicated case, keep the chuck dry, and periodically check for wobble. Document any issues for future maintenance.
Tip: Periodic chuck inspection improves longevity and safety.
Got Questions?
What is a drill chuck and why is it important?
A drill chuck is a clamping device that holds the drill bit in place. Its grip determines accuracy and stability during cutting, so a good chuck reduces wandering and ensures clean holes. Regular maintenance helps prevent slipping.
A drill chuck clamps the bit and affects accuracy; keep it clean and tight for best results.
Can I use any drill with a chuck?
Most standard drills have chucks compatible with common bit shanks. Always verify that the bit shank diameter fits the chuck’s capacity and that the chuck type matches the bit. Some specialty bits require specific chucks.
Most drills with chucks work with common bits; check shank size and chuck type.
What is the difference between keyed and keyless chucks?
Keyed chucks use a metal key to tighten the grip, offering strong, deliberate clamping. Keyless chucks rely on friction and self-tightening, making bit changes faster for quick DIY tasks. For heavy metal work, keyed chucks can be more reliable.
Keyed chucks use a key; keyless chucks are quicker to change but may feel looser.
What chuck size do I need for common wood bits?
For most wood projects, a 1/4-inch or 3/8-inch chuck covers the majority of standard bits. If you frequently use larger bits, confirm the chuck’s maximum capacity before drilling.
Most wood bits fit in 1/4 or 3/8 inch chucks.
How can I prevent chuck slippage?
Ensure the bit is fully seated and the chuck is tightened appropriately. Use the correct bit for the material and avoid applying excessive force that could loosen the grip.
Seat the bit fully, tighten securely, and don’t force it.
Watch Video
Top Takeaways
- Choose the right chuck and bit for the material.
- Tighten bits securely before drilling to prevent slip.
- Match speed and feed to material and bit size.
- Securely clamp workpieces and use backing material when needed.
- Maintain the chuck and bits to extend tool life.
