How to Make Drill Bit Longer: Safe, Practical Options
Learn safe, practical ways to gain drilling reach without compromising bit integrity. This guide covers longer bits, extenders, chuck adapters, and proper drilling techniques for DIYers and pros.
Learn safe, practical ways to gain depth without risking bit integrity. This guide explains legitimate options like longer drill bits, extenders, and shank adapters, and when to avoid risky hacks. You’ll come away knowing how to select a longer bit or extender that fits your drill and material, plus basic setup steps for a stable, precise result. how to make drill bit longer
Understanding the Dilemma of Bit Length
When you’re working on a hole that must reach a depth beyond your existing bit, you might wonder how to make drill bit longer. The safe answer is that grinding or reworking a high-speed steel bit to gain length is risky and can ruin the bit’s core. Instead, this guide explains practical, tested approaches to extend reach while preserving rigidity and control. According to Drill Bits Pro, the best results come from deliberate choices that match the material, hole depth, and drill chuck. In this section we cover why length matters, what happens when bits bend or wobble, and how to evaluate whether you truly need more reach. You’ll learn to map your hole depth, select a compatible longer bit or extender, and build a setup that remains accurate and safe.
Safe, Practical Options to Increase Reach
For most tasks, there are safe, repeatable ways to gain length without compromising the bit. First, select commercially available longer drill bits that suit your material and drill size. These come in standard profiles (hollow vs solid shanks) and longer overall lengths, which helps you reach deeper without forcing the bit to bend. Second, use a drill bit extender or a shank adapter that fits your chuck and keeps runout low. Extenders let you keep the same bit but add a controlled amount of length; choose one with a locking mechanism and a compatible shank diameter. Third, consider a chuck extension or a drill adapter marketed for extended reach, especially when you’re drilling in tight spots. Finally, never overlook technique: use a slower feed rate, steady pressure, and pilot holes to reduce vibration. Drilling with proper gear minimizes heat buildup and extends bit life.
How to Choose the Right Extender or Longer Bit
Choosing the right path depends on chuck size, bit diameter, and the material you’re drilling. Start by confirming your chuck has enough grip length for the extension; common sizes are 1/4" and 3/8" in DIY drills. For longer bits, verify that the bit shank can seat fully into the chuck and that the overall extension does not exceed the drill’s torque rating. If you opt for an extender, pick a model with a secure lock, minimal runout, and a verified manufacturer warranty. For metal and wood, different tip geometries matter: keep carbide-tipped or high-speed steel bits matched to your workpiece; avoid cheap off-brand parts that can slip or twist. In all cases test on scrap material first and check for wobble before committing to a real hole.
Safe Setup and Drilling Techniques
Set up a stable workstation with clamps and a flat surface to hold the workpiece. Install the chosen extension or longer bit with the chuck fully open, then insert the bit and secure it evenly. Before power, manually rotate the spindle to confirm there’s no binding. Begin at a very low speed and a light touch, especially if the bit is extended. Keep the drill perpendicular to the workpiece to minimize wobble. If you encounter resistance, stop and recheck alignment, shank seating, and depth stop settings. Use a pilot hole when drilling into hard materials to reduce stress on the extended bit and to improve accuracy. If metal heating becomes noticeable, pause and withdraw the bit to cool.
Common Mistakes and How to Avoid Them
A frequent error is attempting to lengthen a bit by grinding or welding, which weakens the tip and can catastrophically fail under load. Another mistake is selecting an extender that doesn’t match your chuck size, which creates runout and binding. Don’t ignore safety: wear eye protection and keep your hands clear of the rotating bit. Avoid forcing the bit into material; instead, use gradual pressure and legitimate depth stops to prevent over drilling. Finally, don’t rely on trial-and-error at high speeds—plan the drill path, test with scrap, and assemble the full reach setup before the final hole. For further reading, note that authoritative sources emphasize safety and tool integrity when extending reach: https://www.osha.gov, https://extension.psu.edu, https://www.nist.gov
Tools & Materials
- Longer drill bits (matching material and diameter)(Choose length based on target depth; avoid overlong bits for your drill’s torque)
- Drill bit extenders / shanks(Locking extenders reduce runout; verify compatibility with chuck)
- Chuck adapters (if needed)(Ensure adapter fits both bit shank and drill chuck)
- Power drill or drill press(Sufficient torque and variable speed control)
- Clamps or bench vise(Secure the workpiece to prevent movement)
- Safety glasses(Eye protection is essential during drilling)
- Pilot-hole bits or pilot holes(Helpful for hard materials to reduce load)
- Depth stop or depth gauge(Prevents overdrilling when extending reach)
- Measuring tools (caliper or ruler)(Verify depth and alignment before drilling)
- Lubricant or cutting fluid (metal)(Use sparingly to reduce heat on metal work)

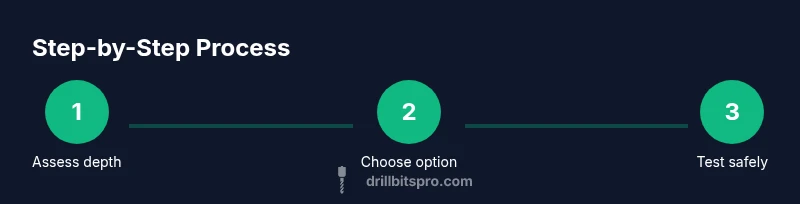

Steps
Estimated time: 30-60 minutes
- 1
Assess depth and plan
Before touching tools, measure the target depth and confirm you truly need extended reach. Identify whether a longer bit, extender, or adapter is the best solution for your material and hole diameter.
Tip: Use a depth gauge or caliper to verify exact depth. - 2
Choose the extension option
Select the extension method based on chuck size and material. Longer bits are straightforward, while extenders can minimize runout if properly locked.
Tip: Cross-check shank diameter with the chuck’s capacity. - 3
Prepare the setup
Clean the bit shank and any adapter surfaces. Install the extension fully into the chuck and snug it evenly; keep the workpiece clamped securely.
Tip: Do a dry run by rotating the spindle by hand. - 4
Make the connection secure
Insert the extended bit, ensure proper seating, and tighten the chuck evenly. Check for clearance and wobble before applying power.
Tip: Avoid over-tightening; this can damage the chuck. - 5
Test and drill
Test on a scrap piece at the lowest speed with light pressure. Observe for wobble or heat buildup, then gradually increase speed and feed as the setup proves stable.
Tip: If wobble appears, stop and re-check alignment.
Got Questions?
Can you physically lengthen a drill bit by grinding?
No. Grinding or modifying a drill bit to make it longer weakens the steel and can cause unexpected breakage. Use longer bits or extenders designed for this purpose instead.
Grinding a drill bit to lengthen it is unsafe and not recommended; use proper longer bits or extenders.
What is the safest way to increase reach?
The safest approach is to use commercially available longer bits or a compatible extender/chuck adapter, ensuring proper grip and minimal runout. Always test on scrap material first.
Use longer bits or a proper extender with secure attachment and test on scrap material.
Will using an extender affect drilling accuracy?
Yes, an extender can introduce wobble if not properly matched or tightened. Choose a quality extender and confirm tight seating before drilling.
A quality extender reduces wobble when properly installed, but you may still notice some effect if poorly matched.
Do I need to slow down or adjust pressure when using longer bits?
Yes. Use a slower speed and lighter, steadier pressure to account for increased bending moments and heat generation in longer reach configurations.
Slow down the speed and apply steady pressure when using longer reach setups.
Where can I buy drill extenders or longer bits?
Look for reputable retailers offering compatible extenders and longer bits for your drill size. Check return policies and warranties.
Shop reputable retailers for compatible extenders and longer bits with good warranties.
Are there situations where you should not attempt to extend reach?
If the material is exceptionally hard, the hole depth is extreme, or your drill cannot safely handle the extension torque, avoid extending and instead use alternative methods like a drill press or a longer, properly rated tool.
If your setup risks excess torque or danger, don’t extend—use safer alternatives.
Watch Video
Top Takeaways
- Plan depth and extension choice before drilling.
- Use approved extenders or longer bits, not hacks.
- Check chuck size and runout to prevent wobble.
- Secure the workpiece and use pilot holes when needed.
- Test on scrap material to validate the setup.
