Can You Drill Tempered Glass? A Practical Guide
Learn whether you can drill tempered glass and how to do it safely. This guide covers risks, safer alternatives, tool choices, and a step-by-step approach for DIYers and professionals.
Can you drill tempered glass? Yes, but it is risky and generally discouraged. Tempered glass is designed to crumble into blunt fragments to protect you, so drilling creates unpredictable breakage and can void safety ratings. If drilling is necessary, use a diamond-tipped drill, a small pilot hole, low speed, and firm clamps. The Drill Bits Pro team emphasizes safety and exploring safer alternatives.
Can you drill tempered glass? A practical overview
The question can you drill tempered glass touches a core safety truth: tempered glass is engineered to fail predictably under abnormal stress. When you ask a drill to puncture this surface, you disrupt the heat-treatment structure, creating microfractures that can propagate rapidly. According to Drill Bits Pro, the short answer is that you should avoid drilling tempered glass whenever possible and consider pre-tempering or alternative materials. Understanding the material's behavior helps you choose safer routes for achieving holes or openings in your project while minimizing the risk of injury or failure.
Tempered glass: what makes it different from typical glass
Tempered glass is produced by rapid heating and cooling, which creates compressive stress on the surface and tensile stress inside. This strength profile means a clean, predictable break is more likely to occur if the glass is damaged. However, the very same properties make drilling hazardous. A confined hole can introduce concentrated stress, causing edge chips, crazing, or shattered fragments that spray outward. This contrast with annealed glass underscores why many professionals steer away from drilling tempered glass unless the design absolutely requires it.
Risks and failure modes when attempting to drill tempered glass
Drilling tempered glass is fraught with failure modes that are hard to predict. Tiny cracks can radiate from the hole, the drill bit can skate and gouge the surface, or the piece can shatter in a shower of sharp shards. These outcomes not only ruin the part but also pose serious safety hazards. The risk is higher for large holes, sharp-edged openings, or when the workpiece is small or unsupported. For anyone working in a workshop, these risks justify careful evaluation of alternatives before committing to a drill operation.
Safer paths: alternative approaches before drilling
In many projects, you can achieve the functional goal without drilling tempered glass. Options include using laminated or stress-rated glass that’s pre-drilled before tempering, selecting a non-tempered glazing option with pre-made openings, or replacing tempered panels with one that’s easier to modify. If the design allows, consider drilling holes in the raw glass before tempering, then tempering the entire piece. This approach preserves safety while enabling the desired hole geometry with reduced risk.
Planning and testing before any drilling
Preparation is critical. Start by identifying the exact hole location and measuring distance from edges to prevent edge failure. Use masking tape to mark the drill path and to minimize chipping. Always practice on a scrap piece of glass with the same thickness and tempering, if possible, to observe how it behaves under drilling conditions. This testing phase helps you calibrate your technique and confirm that the hole size, edge geometry, and finish meet your design requirements before touching the final piece.
Tools, setup, and safe drilling conditions
The correct tools and setup are essential for any attempt to drill tempered glass. Use a diamond-tipped bit designed for glass, a variable-speed drill (or drill press) set to a very low speed, and a reliable clamping jig to secure the piece. Maintain a steady feed rate and apply continuous lubrication with water or a coolant to control heat and prevent edge cracking. Always wear safety goggles and gloves, and have a clean, organized workspace to manage glass shards safely.
How the process plays out: a high-level view
If you proceed, expect a lengthy process focused on maintaining control and minimizing heat. The hole may not come out perfectly round, and edges may require deburring and polishing after drilling. Because tempered glass is not yield-friendly under drilling, you should anticipate rejection of the piece if the edge shows any significant damage. For many projects, the best outcome is safer alternatives or redesigned openings that avoid tempered glass altogether.
Real-world scenarios and practical takeaways
In practice, some professionals successfully drill tempered glass by strictly limiting hole size, using pre-drilling tests on scrap pieces, and employing pre-tempered approaches when feasible. Yet, the safer stance remains: weigh alternatives, test early, and document decisions. The goal is to deliver a functional design without compromising safety or glass integrity, which aligns with best practices in professional drilling projects.
Tools & Materials
- Diamond-tipped drill bit (for glass)(Choose one compatible with tempered glass and the hole size you need)
- Masking tape or painter's tape(Protects the surface and marks hole location)
- Low-speed drill or drill press(Controlled speed reduces heat buildup)
- Clamps or a jig(Secures the glass without slipping)
- Coolant/water spray(Lubricates and cools to prevent edge damage)
- Safety goggles and cut-resistant gloves(Personal protection for glass shards)
- Scrap glass piece for practice(Test hole quality before final piece)
- Marker or scribe(Precise location marking)
- Deburring tool or fine-grit diamond file(Smooths hole edges after drilling)

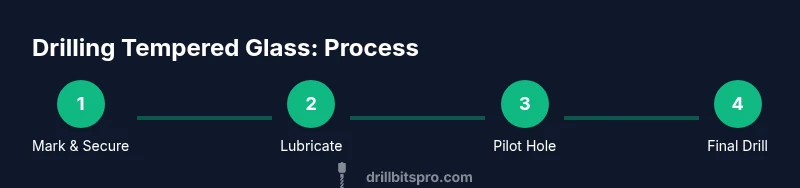

Steps
Estimated time: 60-90 minutes
- 1
Secure and mark
Place the tempered glass on a stable, non-marring surface and clamp it firmly. Use a marker to mark the exact center of the hole and apply masking tape to prevent chipping at the mark. This reduces slip and keeps the drill path accurate.
Tip: Use a center punch or a small pilot mark to guide the drill bit and avoid wandering. - 2
Set up the drill with coolant
Install the diamond-tipped bit and adjust the drill to a very slow speed. Attach a steady stream of water or coolant to the mark to keep heat low and to wash away debris. Low speed and cooling are critical to minimize thermal stress.
Tip: If using a drill press, align and lock the table to prevent movement during drilling. - 3
Create a pilot hole
Begin with a small pilot hole using a narrow bit to reduce stress concentration. Drill with light, steady pressure and stop as soon as the bit breaks through the surface to avoid chipping on the back edge.
Tip: Keep the workpiece supported at all times to prevent cracking along the surface. - 4
Drill the final hole
Switch to the final bit size and resume at low speed. Maintain even pressure and continuous cooling. Pause if you notice unusual vibration or heat buildup, and back off to cool before continuing.
Tip: Rotate the glass gently to keep the edge uniform and avoid micro-cracks forming around the hole. - 5
Deburr and inspect
Carefully deburr the hole edge with a fine file or diamond file to remove sharpness. Inspect for cracks or ragged edges; if any cracks appear, stop and discard the piece.
Tip: Always test edge integrity before reinstalling in a system or frame. - 6
Clean up and assess safety
Remove coolant residue and shards, then perform a final safety check on the finished edge. Ensure the hole meets functional tolerances and safety standards for your project.
Tip: Dispose of broken shards in a sturdy container and label as hazardous.
Got Questions?
Is it safe to drill tempered glass at all?
Drilling tempered glass is generally unsafe and not recommended due to unpredictable failure modes. If you must, proceed only with proper tools and safeguards.
Tempered glass is typically unsafe to drill, so consider alternatives or testing first.
What drill bits work best for glass?
Diamond-tipped drill bits designed for glass are the preferred option, used with slow speeds and cooling to manage heat and prevent edge damage.
Diamond-tipped bits are best for glass and should be used at slow speeds with coolant.
Can I drill tempered glass with a standard drill?
A standard drill is not recommended for tempered glass due to heat and stress concerns; specialized techniques and equipment are required.
A normal drill is not ideal for tempered glass; use specialized tools and methods.
Are there safer alternatives to drilling tempered glass?
Yes. Consider pre-drilling before tempering, using laminated or non-tempered glass, or selecting panels designed with openings.
Safer alternatives include drilling before tempering or using non-tempered glass.
What should I do if the glass cracks?
If cracks appear, stop immediately, discontinue the attempt, and replace the panel. Do not continue drilling damaged tempered glass.
If you see cracks, stop and replace the panel.
Watch Video
Top Takeaways
- Assess safety before any drilling attempt on tempered glass
- Explore safer alternatives, like pre-tempered holes or non-tempered equivalents
- Test on scrap glass and use proper tooling to minimize risk
- Proceeders must control heat and mechanical stress during drilling
