Can You Drill Holes in Plexiglass? A Practical Guide
Discover safe, effective methods for drilling holes in plexiglass. This expert guide covers bit choices, speeds, setup, and finishing to prevent cracks, chips, or melting. Learn with step-by-step instructions and practical tips from Drill Bits Pro.
Yes, you can drill holes in plexiglass safely, but it requires careful technique to avoid cracking, chipping, or melting. Use a sharp, plastic-rated drill bit, drill at slow speed, and keep the workpiece supported with clamps and a backing board. Apply masking tape, start with a pilot hole, drill perpendicular, then deburr the edge.
Can You Drill Holes in Plexiglass? Safety-first and Fundamentals
Plexiglass, or acrylic, is a versatile material for projects ranging from display cases to DIY enclosures. Can you drill holes in plexiglass? Yes, but it demands a deliberate approach to minimize heat, stress, and surface damage. The Drill Bits Pro team emphasizes planning, proper tooling, and solid workholding as the foundation for success. Start by choosing the right bit and the lowest practical drill speed, then protect the surface with masking tape and a backing board. With these precautions in place, you’ll achieve clean holes with minimal edge crazing. Remember, safety gear and careful handling are essential at every step.
Tools and Materials You’ll Need
- Drill with variable speed and a chuck wide enough for plastic bits
- Plastic-rated twist bit (or brad-point bit) sized for the hole you need
- Masking tape to define start points and reduce tear-out
- Clamps or a vise to hold plexiglass firmly
- Backing board or scrap wood to support the backside
- Center punch or sharp awl to mark the hole center
- Pilot drill bit for a small starter hole
- Deburring tool or fine sandpaper for edge finishing
- Safety gear: goggles and gloves
- Optional: drill press for perpendicular accuracy
- Water or cutting fluid for cooling on longer or larger holes
Choosing the Right Drill Bit for Plexiglass
Plexiglass responds well to bits designed for plastic and wood. A sharp plastic-rated twist bit or brad-point bit reduces heat buildup and minimizes edge chipping. Avoid standard metal bits that dull quickly or create excessive friction. For larger holes, consider a plastic-specific hole saw or a step drill designed for acrylic, which can produce smooth, burr-free edges when used with light pressure and adequate cooling.
Setup and Surface Preparation
Preparation is critical. Clean the sheet to remove dust, then place masking tape on both sides of the intended hole to reduce tear-out. Secure the plexiglass with clamps to prevent shifting, and position a backing board beneath to support the material from the opposite side. If drilling near an edge, ensure a sturdy margin and avoid overhangs that can flex during cutting. A drill press improves perpendicular alignment and consistency, but a handheld drill can work with careful control.
Drilling Process Overview
Begin with a light touch and steady, orthogonal pressure. Start with a small pilot hole to guide the larger bit, which reduces wandering and surface tearing. Keep the bit cool by pausing to wipe away heat and, if possible, apply a few drops of water or a cooling fluid. Maintain a low RPM setting and avoid forcing the bit through the material. After the hole is through, back off slowly and finish with a gentle deburr to remove any roughness.
Finishing and Edge Care
Edge finish matters as much as the interior hole. Remove masking tape and inspect for micro-cracks or rough edges. Use a deburring tool or fine-grit sandpaper (gentle, even strokes) to create a clean, smooth edge. Wipe the surface with a clean cloth and, if needed, polish with a plastic-safe polish to restore clarity. Proper deburring prevents stress risers that could propagate cracks over time.
Common Mistakes to Avoid
Rushing at high speed, applying excessive downward pressure, or drilling without backing support can cause cracks or heat-induced haze. Using dull bits increases friction and melts the surface; always replace worn blades. Drilling near the edge without proper backing can produce edge chips. By slowing down, providing support, and using the correct bit, these issues become much less likely.
Tools & Materials
- Drill with variable speed(Prefer units with soft-start and adjustable RPM)
- Plastic-rated twist bit or brad-point bit(Choose bit size that matches hole diameter)
- Masking tape(Apply to both faces to reduce tear-out)
- Clamps or jig(Secure plexiglass firmly without flexing)
- Backing board or scrap wood(Support backside to prevent breakout)
- Center punch or awl(Mark center so the drill bit starts true)
- Pilot drill bit(Start with a small pilot hole before the final size)
- Deburring tool or fine sandpaper(Finish edges after drilling)
- Safety gear (goggles, gloves)(Protect eyes from shards and plastic dust)
- Water or cutting fluid (optional)(Help cool the bit on larger holes)
- Drill press (optional)(Improves perpendicular accuracy)
Steps
Estimated time: 30-45 minutes
- 1
Plan and mark
Identify the hole location and outline it with masking tape on the surface. Center-punch the mark to give the drill a precise starting point. This reduces wandering and helps ensure a clean entry.
Tip: Double-check measurements from both sides of the sheet to avoid misalignment. - 2
Secure the sheet
Clamp the plexiglass to a stable work surface. Use a backing board beneath the sheet to support the exit side and prevent breakout when the hole is formed.
Tip: If using a drill press, lower the table slightly so the sheet sits flush against the backing board. - 3
Drill a pilot hole
With a small pilot bit, drill a light entry hole that follows your center mark. This helps guide the final bit and minimizes heat buildup.
Tip: Keep the drill at a slow speed and avoid pushing hard; let the bit do the cutting. - 4
Progress to final size
Switch to the final bit size and drill at a controlled pace. Maintain a perpendicular angle to avoid angled holes and reduce heat.
Tip: Pause to clear plastic chips and apply a little coolant or water if available. - 5
Maintain cooling and depth control
If drilling thick plexiglass, irrigate with water or use a spray to keep heat down. Avoid overheating which can cause melting or haze.
Tip: Take breaks for larger holes to prevent bit and material overheating. - 6
Finish the edge
Slowly withdraw the bit and inspect the edge for roughness. Use a deburring tool or fine sandpaper to remove burrs and polish the edge.
Tip: Wear eye protection since burrs can launch during finishing. - 7
Inspect and test fit
Remove masking tape and check the hole for roundness and alignment. Test-fit any hardware, screws, or fasteners you planned to use.
Tip: If the hole is slightly undersized, carefully enlarge in small increments with the same technique. - 8
Clean up
Wipe the surface with a soft cloth and clear any debris. If needed, apply a plastic-safe polish to restore clarity around the hole.
Tip: Dispose of acrylic particles safely to avoid slips on the workspace.
Got Questions?
What drill bit is best for plexiglass?
Plastic-rated twist bits or brad-point bits designed for acrylics provide clean cuts with less heat. Avoid dull metal bits that heat up quickly.
Plastic-rated bits work best for acrylic; keep the speed slow and avoid dull bits to prevent heat buildup.
Can I drill plexiglass with a standard drill bit?
A standard metal drill bit can work briefly, but it quickly dulls and generates heat that can crack or melt the surface. Use a bit rated for plastics for best results.
Usually not ideal; use a plastic-rated bit for cleaner cuts and less heat.
Should I use a drill press for accuracy?
Using a drill press improves perpendicularity and hole roundness, especially for thick sheets or precise hardware fits. If you don’t have a press, a steady handheld drill with a guide helps.
A drill press is ideal for accuracy, but a steady hand and guide can work too.
How do I prevent cracking near the hole?
Support the sheet from behind, use masking tape, drill at low speed, and start with a pilot hole before the final size. Avoid drilling near edges where stress concentrates.
Support and slow speed are key to avoiding cracks.
Can I drill large holes in plexiglass?
For large holes, use a plastic-rated hole saw or a step drill designed for acrylics, with careful backing and cooling. Large holes are more prone to cracking if not supported.
Yes, but use the right tool and proper backing.
What finishing steps help after drilling?
Deburr with a deburring tool or fine sandpaper, then wipe clean and polish if needed to restore clarity. Small burrs can be sharp and can harbor stress.
Deburr and clean the edge for a smooth, safe finish.
Watch Video
Top Takeaways

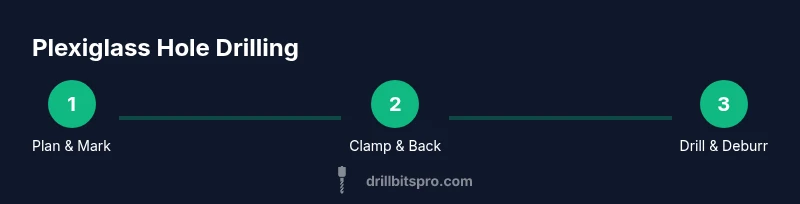

- Plan hole location before drilling
- Use a plastic-rated bit with slow speed
- Clamp and back the plexiglass to prevent breakout
- Deburr edges for a clean finish
