Pilot Holes for Self-Tapping Screws: Do You Need One?
Learn when and how to drill a pilot hole for self tapping screws. This practical guide from Drill Bits Pro covers wood and metal, hole sizing, tools, step-by-step methods, safety tips, and expert recommendations for reliable, clean joins.
Yes, you usually need a pilot hole for self-tapping screws, especially in wood or thin metal. A properly sized pilot hole reduces wood splitting, prevents thread stripping, and helps the screw seat true. In very soft materials or with small screws you can sometimes skip it, but for most DIY projects a pilot hole is the safer, more reliable choice.
Why Pilot Holes Matter in Self-Tapping Screws
Pilot holes are more than a procedural step; they shape the quality and longevity of a joint. For wood, a pilot hole reduces the likelihood of splitting when the screw threads bite. In thin metal or soft materials, it prevents the soft substrate from deforming as the screw threads advance. Self-tapping screws are designed to cut their own threads, but without a guiding hole, the tip can wander, causing misalignment and a cracked edge or uneven seating. In this section we break down how pilot holes work and why they’re a smart, widely recommended practice across DIY projects—from cabinet assembly to hinge mounting. Drill Bits Pro analysis, 2026, emphasizes that correctly sized pilot holes improve seating, reduce tool wear, and produce cleaner finishes. Understanding when and why to use a pilot hole helps DIY enthusiasts and professionals avoid avoidable wrecks and wasted effort.
When a Pilot Hole is Not Necessary (But Rare)
There are exceptional situations where a pilot hole may be skipped. Extremely soft woods, very small screw diameters, or very shallow joints may tolerate a direct-drive approach. In these cases the screw may bite with minimal resistance, but the risk of wood splitting, thread stripping, or an off-center seat remains higher. Always weigh the material hardness, screw size, and the joint’s load requirements. When in doubt, drill a pilot hole and verify the fit before full assembly.
Wood vs. Metal: How Material Changes the Approach
Wood and metal respond differently to screws. In wood, a pilot hole guides the screw and reduces the chance of splitting around the entry point. The hole should be smaller than the screw’s outer thread diameter to allow the thread to cut into the wood while leaving a clean path for the shank. In thin metal, the pilot hole acts as a guide to prevent the threads from binding on the metal sheet, reducing the risk of cross-threading and stripping. For thicker metal, choose a drill bit size that matches the screw’s core diameter and consider a clear path to avoid deforming the surrounding material. The goal is to let the screw cut its own threads without tearing material around the entry.
How to Decide Hole Size Without a Chart
Without a precise chart, you can use relative sizing to pick a safe pilot hole. Start with a hole that’s visibly smaller than the screw’s outer thread diameter, then test with a scrap piece. If the screw threads bite too aggressively or the material resists, tighten the hole slightly or switch to a slightly larger bit. If the screw passes through too easily, your hole is too large and may reduce holding power. For hardwoods, aim for a hole that allows the screw to engage material without tearing; for softwoods, you may scale down a touch. The key is to achieve clean thread engagement without cracking or stripping.
Tools and Techniques for Consistent Results
Quality results depend on proper tools and technique. Use a sharp pilot bit to reduce wandering and ensure a clean entry. A center punch can help start the hole in hard materials, guiding the bit to the mark. Clamp the workpiece securely to prevent movement, and keep the drill perpendicular to the surface to avoid cam-out. If you’re using an impact driver, apply steady pressure rather than full power at once to prevent overdriving the screw.
Step-By-Step Scenarios: Wood-to-Wood Assembly (Typical DIY)
This scenario demonstrates a practical workflow using standard wood screws. Mark the location, choose a pilot bit, set your drill to a low-to-moderate speed, and drill to the intended depth. If you have a countersink bit, you can optional countersink slightly to seat the screw head flush. Finally, drive the screw slowly and stop as soon as the threads engage cleanly. A quick tactile check will confirm the joint’s firmness without splitting.
Common Mistakes and How to Avoid Them
Rushing drilling, using the wrong bit, or failing to clamp can ruin joints. Using an overly large hole leaves insufficient thread engagement, while a hole that’s too small can cause the screw to bind or snap. Avoid drilling too deep—mark depth or use a depth stop when possible. Always wear eye protection and inspect after driving to confirm the screw sits flush and straight. If you encounter resistance, back the screw out and re-evaluate the pilot hole size and alignment.
Quick-Check Before You Drill
Before any pilot hole, ensure the screw type and material are appropriate for a pilot hole approach. Confirm the surface is clean and free of debris. Have spare bits and a backup drill ready, and double-check your clamps for a stable setup. With a little planning, the process becomes repeatable, predictable, and yields professional-looking results.
Long-Term Considerations: Durability and Finish
Pilot holes contribute to the longevity of assemblies by reducing stress concentrations around the entry point, which can predispose joints to cracking or loosening over time. Proper hole sizing and steady drilling reduce the risk of thread engagement failures under load. When finished with the project, inspect the join for any hairline cracks and re-tighten if necessary. A well-executed pilot hole setup pays off in a stronger, cleaner long-term result.
Tools & Materials
- Drill/driver with variable speed(Prefer low-speed setting for control and reduced heat)
- Appropriate pilot drill bits (wood and metal)(Keep a spare bit slightly smaller than your target if unsure)
- Center punch(Helps start the hole precisely on hard surfaces)
- Screwdriver or bit set for self-tapping screws(Use the correct bit size for the screw head)
- Safety goggles(Eye protection is essential against chips)
- Clamp or vise(Secure the workpiece to prevent movement during drilling)
- Pencil or marking knife(Mark exact screw locations)
- Measuring tape or ruler(Helpful for spacing and alignment)

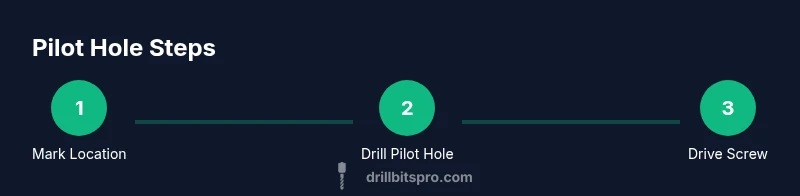

Steps
Estimated time: 45-60 minutes
- 1
Prepare and mark
Identify the screw location and mark it clearly with a pencil. Double-check alignment with neighboring components and verify that there is enough material behind the joint to avoid breakout. Use a center line or square to ensure the hole will be perpendicular.
Tip: Use a center punch on hard surfaces to prevent the bit from wandering. - 2
Choose the drill bit
Select a bit that matches the screw’s core diameter and the material type. For hardwoods, use a bit slightly smaller than the shank to initiate the thread engagement; for softwoods, you may choose a bit closer to the screw’s outer diameter to reduce resistance.
Tip: Keep bits sharp and use a sharp pilot to reduce wandering. - 3
Drill the pilot hole
Set the drill to a steady speed and start drilling perpendicular to the surface. Drill to the planned depth, using a depth stop or mark to avoid going too deep. Pause occasionally to clear debris and ensure the hole remains straight.
Tip: Drill a test hole in scrap material first to confirm fit. - 4
Optional counterbore/countersink
If flush seating is required, use a countersink or counterbore to create a space for the screw head. This helps produce a clean finish and reduces the chance of the head binding on the surface.
Tip: Keep the countersink shallow for a neat flush result. - 5
Drive the screw
Begin driving slowly with steady pressure. Stop as soon as the screw threads fully engage with the material. If you feel significant resistance, back out a little and re-check the hole size and alignment.
Tip: Avoid full power immediately; gradual engagement prevents stripping. - 6
Inspect and finish
Check for a straight insertion and proper seating. If any cracking or misalignment is visible, back out and adjust the hole size or angle. Wipe away dust and inspect the joint under load conditions similar to use.
Tip: Test the joint with light load first to confirm strength.
Got Questions?
Do I always need a pilot hole for self-tapping screws?
Not always, but in wood and thin metal a pilot hole reduces splitting, improves alignment, and allows cleaner threading. In very soft materials or tiny screws you might skip it, though the safer approach is to drill a pilot hole.
In most cases you should drill a pilot hole for self-tapping screws to avoid splitting and misalignment.
Can I use the same drill bit for wood and metal when drilling pilot holes?
You should use the appropriate bit type for the material. Wood bits and metal bits are designed differently to reduce wandering and to cut effectively. Switching bits ensures cleaner holes and better screw seating.
Use the correct bit for the material; wood bits for wood, metal bits for metal.
How do I know the right pilot hole size if I don’t have a chart?
Without a chart, start with a hole smaller than the screw’s thread diameter and test on scrap. If the screw binds, make the hole slightly larger; if it threads in too loosely, reduce the size. Always validate with a test piece.
Start with a hole smaller than the screw’s threads and adjust with a scrap test.
What safety gear should I wear while drilling?
Wear safety glasses to protect eyes from chips, use hearing protection if you’re using loud tools, and keep hands away from the rotating bit. Secure the workpiece with clamps to prevent movement.
Wear eye protection and clamp the workpiece to stay safe.
Can I drive screws into metal without a pilot hole?
Drilling a pilot hole is generally advised for metal to prevent binding and thread stripping. Depending on the screw, material thickness, and hole size, you may avoid a hole, but it increases the risk of cross-threading.
Pilot holes in metal prevent binding and stripping.
What’s the best practice to avoid stripping the screw?
Use the correct bit size, apply steady pressure, and avoid over Torquing. Drill a pilot hole to guidance and drive the screw using smooth, even pressure until the threads seat cleanly.
Use the right bit and steady pressure to prevent stripping.
Should I countersink every pilot hole?
Countersinking is only necessary when you want the screw head to sit flush with or below the surface. If the finish requires a recessed head, countersink accordingly; otherwise a straight hole can be sufficient.
Countersink only if you need a flush finish.
Watch Video
Top Takeaways
- Verify hole location and material before drilling
- Match hole size to screw core for reliable grip
- Drill straight, steady, and at controlled speed
- Use countersink if flush seating is required
- Inspect joint quality after driving
