Do You Need a Pilot Hole for Wood Screws? A Practical Guide
Learn when to drill a pilot hole for wood screws, how to size it for different woods, and a step-by-step method to prevent splitting and ensure strong joints. Practical guidance from Drill Bits Pro.
Yes, in most cases you should drill a pilot hole for wood screws. A pilot hole guides the screw, reduces wood splitting, and improves precision. Choose a bit close to the screw’s root diameter, consider wood hardness, and drive slowly with steady pressure. For very soft pine, you may use a smaller pilot; for dense hardwood, a slightly larger pilot reduces resistance.
do you need to drill a pilot hole for wood screws
If you’re planning a woodworking project, you’ll want to know whether you must drill a pilot hole for wood screws. In most cases, yes, and this simple step helps guide the screw, reduces wood splitting, and improves placement accuracy. According to Drill Bits Pro, pilot holes are especially valuable when working with hardwood or dense material, but they still offer benefits in softwoods for larger screws. Start by deciding the hole size based on the screw root diameter and the wood type, then set up a clean work surface and verify measurements with a pencil mark.
When pilot holes matter more: softwood vs hardwood
The need for a pilot hole varies with wood type. Softwoods like pine or spruce are more forgiving, but a pilot hole can still prevent slippage and reduce splitting when using larger screws. Hardwoods such as oak, maple, or hickory resist fasteners more aggressively; without a pilot hole, the screw can bind, causing the wood to crack and tear. Drill Bits Pro highlights that choosing the right hole size relative to the screw’s root diameter is the most critical factor across wood species. Always mark your first attempt on a scrap piece to verify fit before committing to your final workpiece.
How to size a pilot hole for wood screws
Pilot hole sizing hinges on two main factors: the screw’s root diameter and the wood’s density. Start with a bit approximately the same diameter as the screw’s root, then adjust for hardwoods by moving up one size if you notice heavy binding. For very small screws in softwood, a root-diameter match may be sufficient, while longer and thicker screws in dense wood benefit from a slightly larger pilot. The goal is to remove enough material so the screw can bite without tearing or creating new cracks.
Common mistakes and how to avoid them
Several mistakes plague first-time pilots: using too large a hole, which reduces holding power; using too small a hole, which binds and causes splitting; drilling too deep or not deep enough; and not accounting for wood hardness. To avoid these, measure the screw’s root diameter, test on scrap, and mark the depth you need. Always drill perpendicular to the work surface to ensure straight driving and a clean joint. If you’re unsure, start smaller and gradually widen the hole until the screw sits flush.
Practical tests and alternatives
A quick test on scrap wood helps confirm your pilot hole size and depth before you work on your project. If you don’t have pilot bits, start with a standard bit and compare performance, then switch if you hear binding or feel resistance. For very decorative projects or cabinetry where you cannot afford visible flaws, consider using a screw with a shallower thread and a dedicated pilot to minimize tear-out. When drilling multiple holes, use a clamp to hold the workpiece steady and maintain consistent alignment across all holes.
Authority sources
- https://extension.illinois.edu
- https://extension.oregonstate.edu
- https://www.osha.gov
Tools & Materials
- Electric drill(Cordless drill with variable speed preferred for control)
- Drill bits set including pilot-size bits(Include sizes near the screw root diameter)
- Center punch(Optional but helps start the pilot hole precisely)
- Pencil(Mark hole locations clearly)
- Tape measure(Ensure proper spacing and alignment)
- Screws (wood screws)(Assorted diameters to test fit on scraps)
- Scrap wood(Practice holes before committing to the project)

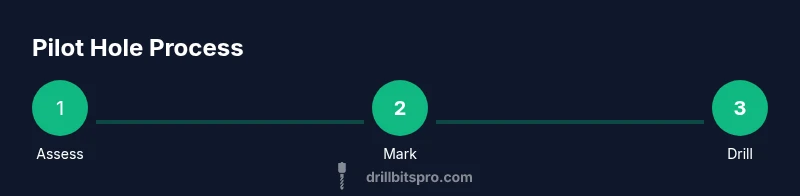

Steps
Estimated time: 15-25 minutes
- 1
Assess screw size and wood type
Identify the screw gauge and the wood species to select an appropriate pilot hole. This helps balance holding power with minimizing damage to the wood. If you’re unsure, start with a mid-range root-diameter hole on a scrap piece.
Tip: Always test on scrap to confirm fit before committing to the final piece. - 2
Mark the hole location
Use a pencil to mark the exact spot for each screw. For improved accuracy, use a center punch to create a small dimple that guides the drill bit. This prevents wandering on smooth surfaces.
Tip: Double-check spacing with a measuring tape or a square before drilling. - 3
Choose and set the pilot bit
Select a bit close to the screw’s root diameter. Attach it securely in the drill chuck and ensure the bit is perpendicular to the surface. If you are drilling multiple holes, set up a simple jig to maintain consistency.
Tip: Keep the drill steady with two-handed control to avoid creeping. - 4
Drill the pilot hole to depth
Drill to a depth that allows the screw to sit flush without bottoming out. In hardwoods, stop slightly short of the final depth to prevent splitting. If your screw is long, test with scrap to determine the proper depth.
Tip: Use a depth stop or a piece of masking tape on the bit to indicate depth. - 5
Drive the screw with control
Align the screw with the pilot hole and drive slowly, letting the bit do the work. Stop when the head is flush or slightly countersunk. Over-tightening can crush the wood or strip the screw head.
Tip: Apply even pressure and pause if you feel binding to back out and re-center. - 6
Inspect and finish
Check for alignment and any cracks around the hole. If the wood shows signs of tear-out, back out and re-drill with a slightly larger pilot hole. Complete the project with the appropriate finish or sealant.
Tip: Always test a single hole first on scrap if you’re using a new wood species.
Got Questions?
Do you always need a pilot hole for wood screws?
Not always. In very soft woods with small screws you might skip a pilot, but for most projects and especially hardwoods, a pilot hole improves alignment and reduces splitting. Always test on scrap first when unsure.
Usually yes, especially with hardwoods. Test on scrap to be sure.
How do you choose the pilot hole size?
Choose a bit near the screw’s root diameter and adjust for wood type. Hardwood often benefits from a slightly larger pilot, while softwoods can use a smaller one. If binding occurs, widen the hole gradually on scrap wood.
Pick a size close to the screw root and adapt for wood type.
What happens if you skip the pilot hole in hardwood?
Screws can split the wood, thread grip may be reduced, and alignment can be off. A pilot hole helps the screw bite cleanly without tearing the wood.
Skipping can cause cracks and poor grip in hardwood.
Can pilot holes be used in cabinetry?
Yes. In cabinetry, pilot holes prevent week joints and visible tear-out. Use thinner pilots for small screws and consider counterbores to sit the head flush.
Cabinetry benefits from pilots to avoid tear-out.
Are there safety considerations when drilling pilot holes?
Wear eye protection, clamp workpieces securely, and avoid loose clothing near the drill. Maintain a steady feed and stop if the bit binds.
Protect your eyes and secure the work.
Watch Video
Top Takeaways
- Always verify pilot hole size against screw root diameter
- Different wood types require different hole depths
- Drive screws slowly and stop before overtightening
- Test on scrap wood before final assembly
