Do You Need to Pre-Drill for Self-Tapping Screws? A Practical Guide
Discover when to pre-drill for self-tapping screws, how to select pilot hole sizes, and best drilling practices for wood, plastic, and metal. Drill Bits Pro breaks down safe, durable methods for DIYers and professionals.
do you need to pre drill for self tapping screws? In many projects, the answer depends on material, thickness, and screw size. Hard metals and thick plywood often benefit from a pilot hole, while soft plastics or thin softer metals may be driven directly. This guide explains when to pilot-hole, how to choose hole sizes, and best practice for reliable threading.
How self-tapping screws work
Self-tapping screws are designed to form their own thread as they are driven into a material. The thread profile and sharp tip cut into the material, creating a mating groove that helps grip. In many DIY projects, this means you can drive them directly into wood, certain plastics, or soft metals; in harder materials, pre-drilling helps reduce torque and prevents thread stripping. For the question do you need to pre drill for self tapping screws, understand that the need for a pilot hole depends on material hardness, screw diameter, and thickness. When you drill a pilot hole, you provide a path that reduces friction, guides the screw, and helps avoid splitting. Always align the screw with the grain in wood and clamp workpieces firmly to keep them from shifting while driving.
Do you need to pre drill for self tapping screws? When to pilot-hole
The core decision point is material type and thickness. If you are working with hardwood, dense metal, or thick stock, a pilot hole minimizes resistance and reduces the chance of thread stripping or snapping the screw head. For thin metals, flexible plastics, or very soft woods, you may be able to drive the screw with a light touch, but pilot holes still improve alignment and seating. Do you need to pre drill for self tapping screws? The safer rule is: when in doubt, pilot-hole and test first on a scrap piece. This approach prevents costly mistakes on your final project and helps you evaluate the joint’s holding power before committing to the actual piece.
Material-specific guidance for pilot holes
Different materials demand different pilot-hole strategies. In metal, a hole matching the screw’s core diameter (not the thread) is typically used to allow the screw to cut threads without binding. In hardwood, start with a pilot hole that accommodates the screw’s core while keeping enough material around the edge to avoid splitting. In softwood or plastic, you can often use a smaller pilot hole or even skip it for very small screws; however, pilot-holes reduce the risk of thread stripping and improve alignment. Always clamp material securely and consider lubricating metal drilling to reduce heat and wear.
How to choose a pilot-hole size (without a chart)
Without a chart, estimate using the screw’s core diameter and the material’s density. For metals, aim for a core-diameter pilot that matches the screw’s shank, then lightly countersink to create room for thread formation. For wood, select a pilot hole wide enough to let the screw’s core pass freely while preventing split ends; in hardwood, lean toward a slightly larger pilot hole, while in softwood a smaller one often suffices. If you’re unsure, drill a small test hole on scrap material and drive a test screw to check fit and seating. This ensures you won’t over-stress the surrounding fibers or bend the screw.
Drilling technique and tool setup
Set up a rigid feed with a drill/driver that offers torque control. Use sharp pilot bits and keep the drill perpendicular to the work surface to prevent angled holes. Start at low speed to establish the pilot hole, then increase speed as needed. If working with metal, apply a light coating of cutting oil or wax to reduce friction. Always wear safety glasses, clamp your work, and take short breaks if drilling long sections to avoid overheating.
Common mistakes and how to avoid them
Common mistakes include skipping pilot holes on hardwood, drilling too large a pilot on metal, and over-tightening screws that crush the workpiece. Avoid these by pre-testing on scrap, choosing the correct pilot size for the material, and driving the screw with controlled torque. Mismatched hole size leads to stripped threads or snapped heads, so double-check the hole path before driving the screw in fully.
Safety considerations and finishing touches
Always wear eye protection and keep hands clear of the drill bit. Secure the workpiece with clamps to prevent movement. After installation, check that the screw is seated properly and that there’s no crack propagation at the edge. If the joint feels loose, reassess the pilot hole size or switch to a different screw type designed for the material. Clean up dust and metal shavings to avoid injuries or slip hazards.
Tools & Materials
- Drill/Driver with adjustable torque(Use a drill with a clutch or adjustable torque to avoid over-tightening)
- Pilot bits in multiple diameters(Include sizes that cover small to mid-range screw diameters)
- Center punch or marking tool(Marks precise pilot-hole location)
- Clamp or vise(Keeps workpiece from shifting)
- Caliper or drill gauge(Helps estimate or verify hole size)
- Safety glasses(Always protect eyes from chips)
- Lubricant or wax for metal drilling(Reduces heat and wear)
- Pencil or marker(Label pilot-hole positions)
- Screwdriver or driver bit set(For driving screws precisely)

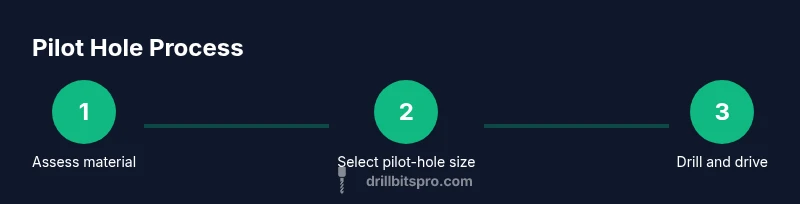

Steps
Estimated time: 30-60 minutes
- 1
Assess material and screw size
Identify the material type and thickness, then select the screw diameter. This informs whether a pilot hole is needed and what size to use. If in doubt, start with a small pilot and test on scrap.
Tip: Always plan for the worst-case load and choose a pilot size that can be widened if needed - 2
Mark the hole location
Use a center punch or sharp marker to pinpoint the exact spot. A missed mark leads to misalignment and a compromised joint. Verify alignment with a straightedge before drilling.
Tip: Double-check the layout against any grain direction or hidden components - 3
Drill the pilot hole
Select the pilot bit size that matches the screw core. Drill perpendicular to the surface with steady pressure and avoid wobbling. For metal, cut oil or wax can help manage heat.
Tip: Drill at a slow speed first to establish a clean hole, then increase as needed - 4
Prepare the screw and surface
If needed, countersink slightly to seat the head flush. Clean debris from the hole before driving. Keep the workpiece clamped to reduce movement.
Tip: Wipe away chips to prevent binding when starting the screw - 5
Drive the screw with control
Begin slowly, applying even pressure while monitoring torque. Stop when the head sits flush without crushing the material. If resistance increases sharply, back out and reassess the hole size.
Tip: Use a driver mode with controlled torque and avoid hammer-style driving unless specified - 6
Inspect and adjust
Inspect seating and alignment. If the joint seems weak or cracked, rework the hole size or switch to a different screw type. Always finish with a visual check of the edge and grain boundaries.
Tip: Document any changes for future projects
Got Questions?
Do self-tapping screws always require a pilot hole?
Not always. Small screws into soft materials may not need a pilot hole, but pilot holes generally improve control and reduce the risk of splitting or stripping. When in doubt, pilot the hole and test on scrap.
Not always, but pilot holes help with control and reduce damage. If unsure, test on scrap before final assembly.
Can I drive self-tapping screws into metal without a pilot hole?
Driving into metal without a pilot hole increases the risk of binding and stripping. A properly sized pilot hole (matching the screw core) is usually recommended, plus lubrication for heat management.
Usually not—drill a pilot hole that matches the screw core and lubricate to reduce heat.
What materials typically require pilot holes for self-tapping screws?
Hardwood, thick metal, and dense plastics commonly require pilot holes. Softwood and thin plastics may tolerate direct driving, but pilot holes still improve alignment.
Hardwoods and dense metals typically need pilot holes; softer materials may work with direct driving.
What is the safest drill bit to use for pilot holes?
Use a bit that matches the screw core and the material. For metal, select bits designed for metal; for wood, standard pilot bits work well. Always ensure bit length is adequate for the hole depth.
Choose a bit matching the screw core and material; metal bits for metal, standard pilot bits for wood.
Does pre-drilling affect the joint’s strength?
Pre-drilling can improve joint integrity by reducing splitting and thread stripping. Inappropriately large holes can weaken the joint, so sizing matters and testing is key.
Pilot holes generally help strength by preventing damage, but oversized holes can weaken the joint.
Watch Video
Top Takeaways
- Pilot holes reduce resistance and prevent stripping when needed
- Choose hole size based on material and screw core diameter
- Secure the workpiece and drill perpendicular for accuracy
- Test on scrap to validate fit before final assembly
- Use torque-controlled driving to prevent over-tightening
