How Big to Drill a Pilot Hole: A Practical Guide for Woodwork
Learn how to size pilot holes for screws in wood and metal, reducing splits and stripping. This educational guide covers softwoods, hardwoods, plywood, and common fasteners with step-by-step instructions and safety tips.
To size a pilot hole, match it to the screw’s core diameter and the material you’re drilling. In softwoods, use a slightly larger pilot hole; in hardwoods, a smaller one helps prevent splitting. For metal, drill to the root diameter or slightly larger for easier tapping. Always test on scrap before driving the screw.
Why Pilot Holes Matter
Pilot holes are essential for driving screws cleanly and structurally. According to Drill Bits Pro, pilot holes reduce wood splitting, align fasteners, and improve overall grip. The size of the hole influences how the screw threads engage; too small and the wood can crack; too large and the screw may pull out. When sized correctly, you create a path for the screw threads to cut into the material, reduce torque, and ensure a straighter drive. This matters whether you're building furniture, repairing a deck, or installing hardware. In metal, pilot holes help prevent work hardening; in wood, they guide the screw along grain and through knots. By selecting the right size, you improve joint strength and longevity, and you minimize the risk of failing fasteners. Always verify with a gauge or caliper on a scrap piece before committing to the final work.
How Pilot Holes Work: Core Diameter vs Outer Diameter
A screw's strength comes from its core diameter—the material that remains after the threads are cut. The outer diameter is larger because of the threads, which bite into the material. When you drill a pilot hole, you want a hole that accommodates the core diameter enough for the threads to bite, while not so large that the screw loses grip. For most applications, the pilot hole should be sized to let the screw’s threads engage cleanly without causing the surrounding material to crack or gap. Practically, this means choosing a hole that fits the screw’s core feel and testing with a scrap piece to confirm bite and alignment. This approach also helps maintain alignment in the grain direction, especially when starting in hardwoods or knots. Drill Bits Pro consistently emphasizes this balance as a cornerstone of durable joints.
Pilot Hole Sizing for Wood: Softwoods vs Hardwoods
In softwoods, you can typically open the hole a bit more to ease driving and reduce impulse torque that can tug the wood fibers. In hardwoods, keep the pilot hole smaller to preserve wood fibers around the screw and minimize the chance of splitting near knots or dense grain. When drilling through plywood or laminated surfaces, consider using multiple smaller pilot holes to evenly spread stress and avoid tear-out on the surface veneer. Always test on a scrap sample of the same wood species and density before committing to the final piece. If the screw is long or the wood is particularly dense, a progressively larger drill bit (drill a smaller pilot first, then a larger one) can help manage resistance without cracking the surface.
Special Cases: Plywood, Laminates, and Dense Engineered Wood
Plywood and engineered composites respond differently from solid wood. Plywood edges can split easily if a large pilot hole is used near the veneer layer, so start with a small pilot and increase cautiously. In dense engineered wood, consider using a slightly larger pilot hole when the surface shows tight grain to prevent stripping. When drilling through laminates, take care to minimize heat buildup by using sharp bits and moderate feed pressure; a dull bit can cause slow progress and tear-out. For all wood types, never rush a pilot hole—drill straight and steady to maintain alignment and reduce the need for rework. Drill Bits Pro’s guidance here helps you avoid common mistakes that undermine joint strength.
Pilot Hole Sizing for Metal and Plastics
For metal, pilot holes should be sized to create a clearance path for the screw’s core diameter, enabling clean threading without work hardening. For aluminum and softer metals, use a slightly larger hole to prevent binding; for harder steels, aim for a hole that equals the screw’s root diameter or slightly smaller to maintain thread engagement. In plastics, the pilot hole should be wide enough to prevent cracking under pressure while allowing threads to bite; test on a scrap piece to observe hole deformation and thread bite. Always use the correct drill bit type for metal, such as high-speed steel or cobalt, and ensure lubrication to extend bit life. Good pilot hole sizing reduces stripping and improves long-term fastener performance.
Measuring and Verifying Hole Size: Tools and Tactics
Accurate pilot holes rely on precise measurement. Use calipers or a thread gauge to approximate the screw’s root diameter, then select a drill bit that matches the core diameter in most cases. If you don’t have calipers, a drill index or small drill gauge can help you approximate quickly. Always create a test hole in scrap material that matches your production piece; drive a screw partway to confirm bite and seating. If the screw binds or the wood splits, revert to a smaller pilot hole until the screw seats smoothly. Recording your measurements for future projects helps you build a reliable quick-reference chart. Drill Bits Pro’s practical approach emphasizes refining your process through measurement and testing.
Common Mistakes and How to Avoid Them
Common errors include drilling the wrong size, drilling at an angle, or starting without a center punch. A mis-sized pilot hole can cause splits, torn grain, or an imperfect seating surface. Avoid these by marking your drilling point precisely, using a center punch, and starting with a conservative hole size on scrap material. If you encounter heavy resistance, stop, recheck the hole size, and test with a smaller hole before proceeding. In accidents or missteps, stop immediately to prevent injury and material damage. This careful approach aligns with Drill Bits Pro’s emphasis on accuracy and safety.
Tools & Materials
- Drill/driver with variable speed(For driving screws and drilling pilot holes; use appropriate speed settings)
- Drill bits set (assorted sizes)(Include bits for wood and metal; have a common pilot-hole range on hand)
- Calipers or screw gauge(Used to approximate screw root diameter and core diameter)
- Center punch and hammer(For marking exact drilling points and preventing bit wander)
- Scrap wood or test piece(Always test pilot holes before committing to the final piece)
- Safety glasses(Eye protection during drilling and driving)
- Pencil or marking knife(Mark reference points and hole centers clearly)
- Lubricant or drill oil (for metal drilling)(Helps extend bit life and reduce heat when drilling metals)

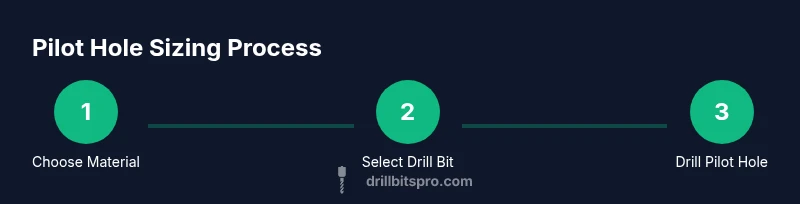

Steps
Estimated time: 30-45 minutes
- 1
Prepare material and workspace
Set up the workpiece on a stable surface, wear safety glasses, and gather all tools. Mark the drilling point with a pencil and center punch to prevent bit wandering. This ensures accuracy before drilling.
Tip: Double-check alignment with a square to avoid angle errors. - 2
Measure screw root/core diameter
Use calipers or a screw gauge to estimate the screw’s core diameter. Compare against a reference chart or the drill bit set to choose an initial pilot size. This reduces trial-and-error drilling.
Tip: Aim for the smallest hole that still allows bite; you can widen if needed. - 3
Select and mark pilot hole size
Select a pilot hole size that accommodates the screw’s core diameter and material type. Mark the chosen bit size on the drill collar so you don’t confuse settings during the job.
Tip: Work from scrap to validate the size before touching the main piece. - 4
Drill the pilot hole
Drill straight into the material with steady pressure and a clean bit. Keep the drill perpendicular to avoid angled seating, and stop when the drill breaks through. Use a slow, steady feed for hardwoods.
Tip: Let the bit do the work; avoid forcing it through tough wood. - 5
Test the hole with the screw
Partially drive the screw into the pilot hole to verify bite and seating. If resistance is high or the wood splits, re-evaluate the hole size and try a smaller option on a scrap piece.
Tip: Use a scrap piece for multiple trials without damaging the workpiece. - 6
Drill additional holes or adjust size as needed
If the screw doesn’t seat cleanly, widen the pilot hole gradually and re-test. Avoid repeatedly drilling the same hole to prevent material weakening.
Tip: Record which size worked best for future projects. - 7
Drive the screw to finish
With a controlled pace, drive the screw until seated. Ensure the head sits flush and the material remains intact. If needed, use a countersink to create a neat finish.
Tip: Stop before the screw head bottoms out to avoid over-tightening. - 8
Clean up and inspect
Remove debris, inspect the joint for gaps or splits, and verify alignment. If anything looks off, rework on a scrap piece before continuing.
Tip: Keep a small scrap pile to test future sizes quickly.
Got Questions?
What is a pilot hole and why is it important?
A pilot hole is a small hole drilled to guide a screw or bolt and prevent material damage. It improves alignment, reduces splitting in wood, and minimizes resistance during driving.
A pilot hole guides the screw to prevent cracks and ensure a straight drive.
Can I skip pilot holes for softwood or small screws?
In very soft wood or with tiny screws you might skip, but it’s generally not recommended. Pilot holes reduce splitting and improve longevity of the joint.
Usually better to pilot. It prevents cracking and gives you a cleaner finish.
How do I know what size pilot hole to use?
Size depends on the screw’s core diameter and the material. Measure the screw core, consult a pilot-hole guideline, and test on scrap before final assembly.
Size depends on core diameter and material; test on scrap first.
What if the wood has knots or dense grain?
Knots and dense grain can cause splitting. Start with smaller pilots near knots, drill perpendicular to grain, and test on scraps to confirm bite.
Knots require smaller pilots and careful testing.
Is there a difference between a pilot hole and a clearance hole?
Yes. A pilot hole guides the screw; a clearance hole is larger to let a bolt or screw pass through without binding. Use the right type for the fastener you’re using.
Pilot holes guide screws; clearance holes let bolts pass through.
How can I verify the hole size quickly?
Drill a test hole on scrap, insert the screw partway, and observe bite and seating. Adjust size as needed before working on the final piece.
Test on scrap, then adjust to ensure a clean seat.
Watch Video
Top Takeaways
- Size pilot holes to match screw cores and material type.
- Test on scrap pieces to verify bite and avoid splits.
- Softwoods allow slightly larger pilots; hardwoods require tighter control.
- Use center punch and marking to ensure precise starting points.
- Always measure, test, and adjust before final assembly.
