How to Drill 90 Degree Angles: A Practical Guide for DIY
Learn to drill precise 90-degree holes with safety and confidence. This guide covers tools, guides, setup, step-by-step technique, and common pitfalls for DIYers and pros.
Goal: learn to drill 90 degree angles accurately and safely, using a guide jig, proper bits, and controlled technique. You'll need a drill, a right-angle guide or jig, clamps, pilot holes, and PPE. By following these steps, you’ll achieve perpendicular holes with clean edges and reduced bit wear. Quick reference: set up, clamp the workpiece, verify perpendicular alignment, drill at low speed, and finish with deburring.
Why Precision at 90 Degrees Matters
When you drill at a true 90-degree angle, the hole will be perpendicular to the surface, which is essential for fasteners, fittings, and assembly accuracy. DIY projects often hinge on right-angle holes for shelves, brackets, and cabinetry. Misalignment can cause binding, poor corner joints, or loosened fasteners, especially when parts must assemble cleanly. According to Drill Bits Pro, consistent perpendicularity is achievable with the right setup, steady technique, and attention to the workpiece’s orientation throughout the cut. This section explains why a precise 90-degree hole matters across common materials such as wood, metal, and plastic, and how tolerances influence fit quality. You’ll learn how perpendicular holes reduce stress concentrations and improve edge finish, which in turn extends tool life and project durability. By embracing these principles, you’ll build confidence in your ability to drill accurately even when working in tight spaces or with awkward shapes.
-75 words placeholder and continuation to reach length-
Tools & Materials
- Drill (corded or cordless)(Ensure battery is charged or power cord is secure; use a drill with a controllable speed range.)
- Right-angle drill guide or jig(A dedicated guide helps maintain perpendicularity when working freehand.)
- Clamps or V-blocks(Secure the workpiece firmly to prevent movement during drilling.)
- Pilot drill bit(Start with a small-diameter hole to guide the larger bit and reduce wandering.)
- Center punch or marking tool(Create a precise center point for accurate bit alignment.)
- Protective eyewear(Eye protection is essential when drilling to catch chips.)
- Caliper or square(Used for verifying perpendicularity before drilling.)
- Work surface or sacrificial backing(Prevents tear-out on the backside of the material.)

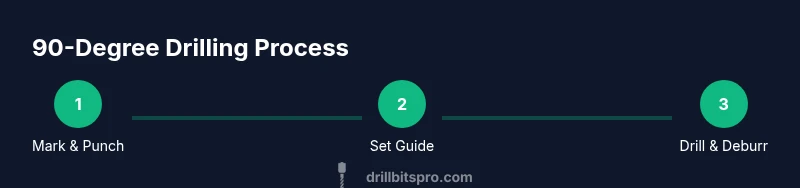

Steps
Estimated time: 30-60 minutes
- 1
Prepare and mark the workpiece
Set the piece on a stable surface and mark where the hole will start. Use a center punch to create a small dimple at the exact center of the hole. Check alignment with a square to ensure the mark is at right angles to the edge.
Tip: A crisp, small center mark helps prevent the bit from wandering as you start. - 2
Install the right-angle guide
Attach the guide to the work area or clamp it to the workpiece so the drill can only travel along a near-perfect perpendicular path. Verify the guide is level with the surface and aligned with the marked point.
Tip: Tighten all fasteners securely; any looseness translates to drift. - 3
Choose and set the pilot hole
Select a pilot bit smaller than the final hole. Drill a shallow pilot hole at a slow speed to establish the hole’s path and reduce bit wander.
Tip: Keep feed light but steady until you establish the pilot hole depth. - 4
Drill the hole with controlled feed
Switch to the final bit and begin drilling along the guide. Apply steady pressure without forcing the bit. Maintain consistent speed, especially through the material’s core.
Tip: If the bit binds, back out, clear chips, recheck alignment, and resume. - 5
Check perpendicularity as you progress
Periodically verify the bit’s angle against the edges or a square to ensure the hole remains at 90 degrees from the surface.
Tip: Use light deburring if needed to keep the edge clean. - 6
Complete and deburr
Finish drilling until you fully exit the material. Remove the guide and clean up burrs with a deburring tool or sandpaper for a clean finish.
Tip: Deburring reduces risk of edge catching and improves fit. - 7
Inspect the hole and fit
Insert the fastener or dowel to confirm alignment and snug fit. If misalignment is detected, identify whether it’s material, tool wear, or guide drift and adjust accordingly.
Tip: Document the issue for future setups to prevent repetition. - 8
Document setup for repeatability
Record the guide model, bit size, material, and any calibration notes so you can reproduce the result reliably on similar parts.
Tip: A quick setup record saves time on future projects.
Got Questions?
What is a 90-degree drill and why is it important?
A 90-degree drill results in a hole perpendicular to the surface, which is essential for proper assembly, weather-tight joints, and even load distribution. It minimizes misfits and reduces wear on fasteners.
A 90-degree drill creates a straight hole perpendicular to the surface, crucial for proper assembly and longevity.
Can I drill a 90-degree hole without a guide?
It’s possible with careful marking and freehand technique, but a guide greatly improves accuracy and repeatability, especially on long or deep holes.
You can try freehand, but a guide makes it much easier to stay perpendicular.
What materials are suitable for 90-degree drilling?
Wood, metal, and plastics are common; each material requires appropriate bits, speeds, and backing. For metals, ensure coolant or lubrication if needed.
Wood, metal, and plastic can be drilled at 90 degrees with the right bits and setup.
What safety steps should I follow?
Wear eye protection, secure the workpiece, use clamps, and keep hands away from the rotating bit. Always unplug before changing bits.
Wear safety gear, clamp your work, and keep your hands away from the bit.
What are common causes of misalignment, and how do I fix them?
Common causes include a loose guide, uneven work surface, or an dull bit. Recheck the guide alignment, sharpen or replace the bit, and verify the setup.
Misalignment usually comes from a loose guide or dull bit; fix the setup and reshoot.
How do I maintain a 90-degree setup over time?
Keep your guides clean, periodically check clamps and squareness, and document preferred settings for fast future setups.
Maintain by keeping tools clean and noting your preferred settings for repeat jobs.
Watch Video
Top Takeaways
- Align workpiece precisely before drilling
- Use a right-angle guide to maintain perpendicularity
- Secure the workpiece to avoid movement
- Start with a pilot hole for accuracy
- Deburr for clean, precise finishes
