How to Drill on an Angle: A Practical DIY Guide
Discover how to drill accurately at an angle with step-by-step techniques, tool choices, and safety tips. Learn to mark, clamp, and guide your drill for clean angled holes in wood, metal, and masonry.
By using a drill guide and proper clamping, you can safely drill at an angle. Start by marking the intended angle, set your drill guide or protractor, and begin with a small pilot hole. Use a brad-point or pilot-hole bit for wood, or a center-cut bit for metal, and maintain steady feed pressure.
Understanding the need for angled drilling
Angled drilling is a common requirement when mounting brackets, routeing cables, or creating flush passes for hardware. It enables you to reach components that aren’t aligned with the face of the workpiece and reduces the need to improvise with improvised guides. According to Drill Bits Pro, angled drilling becomes more predictable when you use a guiding jig and secure the workpiece firmly. The key is planning: know the final direction of the hole, anticipate any obstructing fibers or metal ribs, and choose a technique that minimizes tear-out and wandering. In DIY projects and professional settings alike, taking a deliberate approach to angle drilling saves time and improves the finish of joins, holes, and fasteners.
Why angles matter in different materials
Different materials behave differently when drilled at an angle. Wood can tear-out if the exit edge is sharp, so you may want a backing board or sacrificial scrap to support the exit. Metal requires lubrication to reduce heat and wear on bits, and masonry angles demand carbide-tipped bits and slower feeds to prevent bit dulling. By thinking through material properties ahead of time, you can select the right bit type, drill speed, and axial pressure to keep holes clean and true.
Planning your approach before pulling the trigger
A good angled hole starts with a plan. Decide the target angle and how deep you need the hole to be. Create a clear marking line using a protractor or adjustable drill guide, then clamp the workpiece securely to prevent movement. Planning also means choosing the right bit for the material and a starting pilot hole size that won’t cause the bit to wander. A well-planned approach reduces the chance of wandering, bit breakage, and misalignment.
Tools & Materials
- Drill with variable speed(Prefer a dual-battery or corded model for consistent control)
- Angle drill guide or adjustable drill jig(Helps set exact degrees; optional if you have a precise mechanism)
- Clamps or a sturdy vise(Firmly secure the workpiece to avoid shifting)
- Center punch(Creates a starting indentation to prevent bit wandering)
- Pilot bits (wood & metal)(Small diameter to guide larger bits and reduce wandering)
- Brad-point or carbide-tipped bits (depending on material)(Choose size based on hole diameter and material)
- Lubricant or cutting oil(Use with metal to reduce heat and wear)
- Safety gear (goggles, ear protection, gloves)(Always wear PPE during drilling)
- Backing board or scrap material(Prevents tear-out on exit side for wood)
Steps
Estimated time: 60-75 minutes
- 1
Prepare workspace and safety gear
Put on safety glasses and hearing protection. Secure the workpiece with clamps or a vise on a stable bench. Inspect your drill bits for sharpness and secure the bit in the chuck before proceeding.
Tip: Use a dedicated scrap board beneath the workpiece to catch chipouts on exit holes. - 2
Set the target angle and align the guide
Mark the desired angle on the workpiece with a protractor or angle guide. Align the drill bit with the marked line and secure the guide or jig so it cannot shift during drilling.
Tip: Double-check angle from multiple points and verify your line is perpendicular to the work surface when appropriate. - 3
Choose and install the correct bit
Select a bit appropriate for the material (wood, metal, or masonry). Install the bit firmly in the chuck and tighten to prevent slippage. If using a pilot hole, choose a small diameter first to guide larger bits.
Tip: For metal, consider lubrication to reduce heat and wear on the bit. - 4
Create a pilot hole at the angled path
Dabble the pilot bit at a shallow depth along the angled path to establish a reliable starting point. Keep the drill's nose aligned with the marked angle and apply light, steady pressure to prevent wandering.
Tip: If the bit begins to drift, back out, realign, and re-start with a smaller pilot hole. - 5
Drill the main hole with controlled feed
Begin drilling with slow speed and light pressure, maintaining the angle as you progress. Pause occasionally to clear chips and check alignment. Increase pressure gradually only when the bit is cutting cleanly.
Tip: Avoid high-speed drilling on hard materials; heat buildup can dull bits quickly. - 6
Clear chips and verify alignment
Withdraw the bit while the drill is off to clear chips. Inspect the hole for square ends and depth accuracy. If needed, widen the hole slightly while maintaining the angle.
Tip: Use a depth stop or a small shim to keep holes at consistent depth across multiple parts. - 7
Finish and deburr the hole
Remove burrs with a deburring tool or sandpaper. Clean the hole, re-check the angle, and test-fit any fasteners or brackets to ensure proper alignment.
Tip: A clean exit reduces edge damage and ensures a neat finish on visible surfaces.
Got Questions?
What angle should I drill at for angled mounting?
Choose an angle that aligns with the hardware or bracket you are installing; common ranges are 15–45 degrees depending on the design. Always test on scrap first.
Choose an angle that matches your mounting needs and test on scrap before drilling the final piece.
Can I drill at an angle into metal?
Yes, with the right bit and lubrication. Use a bit designed for metal and drill at a slow, steady pace to avoid overheating.
Yes, with the proper metal bit and lubrication and by drilling slowly to avoid overheating.
Is a drill guide necessary for angled drilling?
Not strictly necessary, but a drill guide or jig greatly improves accuracy and repeatability, especially on long or multiple holes.
A guide isn’t required, but it helps a lot if you need precise, repeatable angles.
How can I prevent the bit from wandering?
Use a center punch to start, then drill a small pilot hole before the final hole. Clamping and marking the path also helps.
Center punch, pilot hole, and secure clamping prevent wandering.
What safety gear should I wear for angled drilling?
Wear safety glasses, hearing protection, and gloves. For dusty or concrete work, use a mask as needed.
Protect your eyes and ears, wear gloves, and use a mask if dust is present.
Watch Video

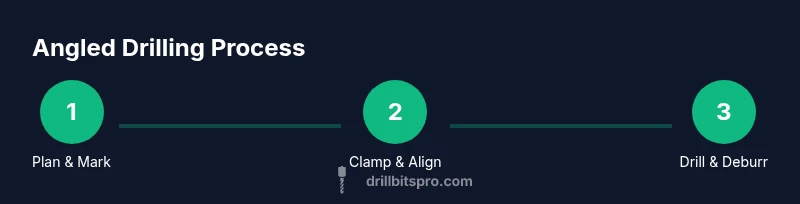

Top Takeaways
- Plan the angle and mark accurately before starting.
- Use a guide or jig to improve consistency.
- Start with a pilot hole to prevent wandering.
- Clamp securely and work slowly to control the cut.
