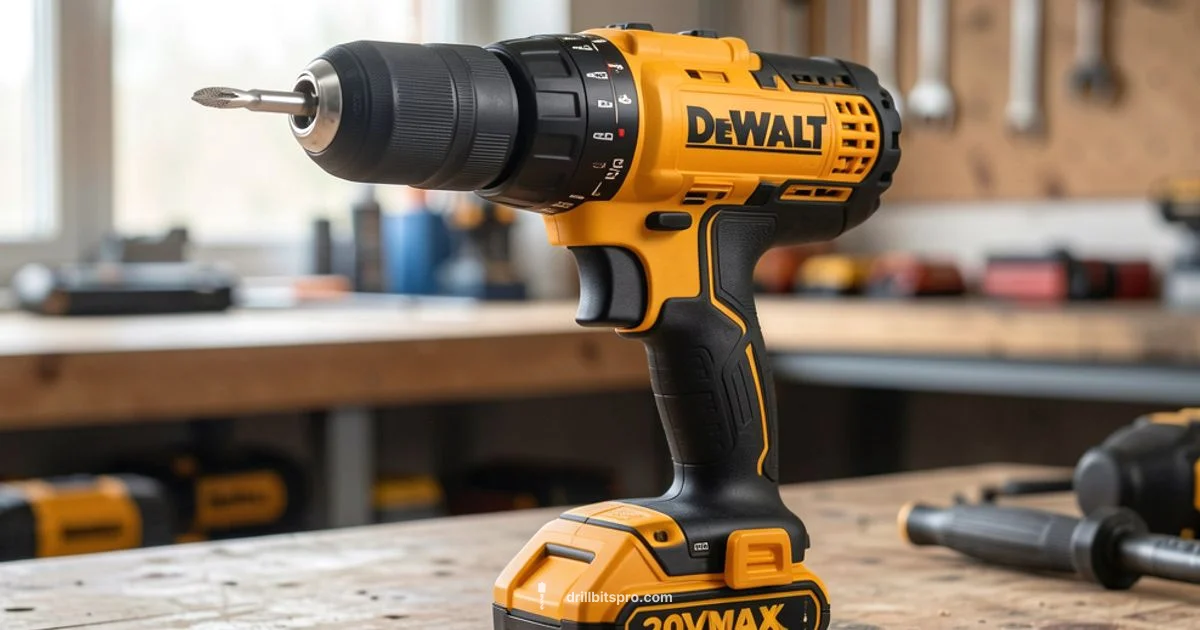

How to Install a Drill Bit in DeWalt 20V Max
Learn how to safely insert and secure a drill bit in your DeWalt 20V Max drill with this step-by-step guide, including safety tips, bit sizing, and maintenance for reliable drilling performance in 2026.
By following this guide you will safely install a drill bit into your DeWalt 20V Max drill, select the correct bit size, and secure it for drilling. You’ll learn how to power off and remove the battery, open the chuck, insert the bit straight, and tighten firmly to prevent wobble. Required items include the drill, the right bits, safety glasses, and a stable work surface.
Preparing to install a drill bit in a DeWalt 20V Max
Preparing properly saves time and reduces the risk of injury. This section helps you lay the groundwork before you touch the chuck. According to Drill Bits Pro, the best results start with the right bit, a clean workspace, and a fresh battery. Gather the correct bit size for your material, verify the drill is powered off, and organize your work area. Inspect the chuck for wear or burrs, remove the battery, and wipe away dust from the spindle. With the tool secured and the area clear, you’re ready to move to the actual installation. This approach aligns with our 2026 drilling best-practices and keeps you safe while you learn how to put drill bit in dewalt 20v max.
Understanding chuck types and bit sizing
DeWalt 20V Max drills commonly feature a keyless chuck, but some models use a keyed chuck. The chuck grip and jaw mechanics determine how you secure a bit. For a keyless chuck, you rotate the outer sleeve to open and tighten; for a keyed chuck, you use the chuck key to tighten. In either case, choose a bit with a shank that fits the chuck’s capacity—typically 1/4 inch to 1/2 inch diameter—and ensure the bit is straight when seated. Drill Bits Pro analysis shows that using the right bit size reduces wear and improves hole quality. Plan ahead by selecting a bit suited for your material (wood, metal, or masonry) and the hole depth you need.
Safety gear and workspace setup
Safety first is non-negotiable. Put on safety glasses and work gloves, and ensure your workbench is stable and uncluttered. Remove any jewelry and secure long hair. Keep a spare battery out of the drill’s path while changing bits. Clear the area of debris that could bind the chuck or cause the drill to slip. A well-lit, flat surface reduces the risk of misalignment and allows you to see if the bit spins true during a test run.
Bit size selection and material considerations
Bit size matters as much as bit type. For wood, larger pilot holes can prevent splits, while metal often requires smaller pilot holes and appropriate speeds. Masonry bits require a hammer drill mode if your DeWalt 20V Max supports it. Ensure the bit’s shank matches the chuck’s diameter and that you’ve chosen a bit with a carbide tip or high-speed steel for durability. When in doubt, consult a material-chart or manufacturer guidance to avoid overloading the chuck or snapping a bit. This step helps you choose the right bit for clean holes and efficient drilling.
Inserting the bit and securing the chuck
With power off, open the chuck jaws wide enough to fully accommodate the bit’s shank. Insert the bit so the cutting edge sits straight and centered. For keyless chucks, slide the outer sleeve back and snug the bit by releasing the sleeve so the jaws clamp evenly. For keyed chucks, place the bit and use the key to tighten until snug (do not overtighten). A straight, centered insertion prevents wobble and reduces bit wear. After locking, gently tug the bit to confirm it’s secure.
Testing the setup on scrap material
Reinsert the battery and set the drill to a low speed. On scrap material, run a brief test to ensure the bit is seated correctly and that there’s no wobble or unusual vibration. If the bit wobbles, power down, reseat the bit, and re-tighten. Check alignment against the mark or pilot hole to confirm accuracy. This testing phase catches misfits before you drill into your final workpiece and helps you avoid costly mistakes.
Maintenance, care, and common mistakes to avoid
Regularly inspect the chuck jaws for wear and burrs; clean any debris after use. Do not use damaged bits or force the chuck beyond its capacity. If the chuck becomes stiff, apply a small amount of manufacturer-approved lubricant and work it in with the drill running at a low speed. Avoid using excessive force or twisting the bit; this can bend the shank or strip the chuck. By keeping the chuck clean and using properly sized bits, you extend tool life and maintain drilling accuracy.
Tools & Materials
- DeWalt 20V Max drill(Ensure the drill is powered off and battery removed before changing bits.)
- Assorted twist drill bits (1/16(Select sizes based on material and pilot hole requirements; avoid bits that are dull or damaged.)
- Chuck key (if applicable)(Use only if your model has a keyed chuck; otherwise skip.)
- Safety glasses(Protect eyes from chips and dust during bit changes.)
- Work gloves(Helps with grip and reduces hand fatigue during bit changes.)
- Clean rag or brush(Use to remove debris from the chuck and spindle.)
- Depth marker tape or depth stop (optional)(Helps prevent drilling deeper than intended.)

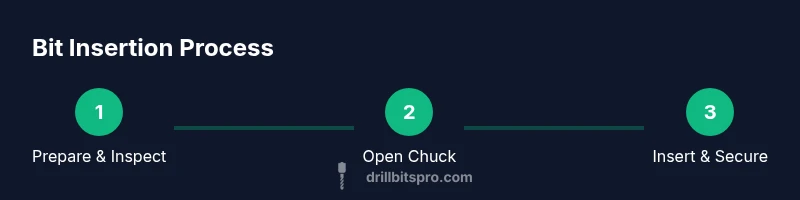

Steps
Estimated time: 15-20 minutes
- 1
Verify power and choose bit
Power off the drill and remove the battery. Inspect the bit for burrs and select the correct size for your material. Make sure the bit’s shank matches the chuck capacity.
Tip: Double-check the bit size against your pilot hole plan before proceeding. - 2
Clean the chuck interior
Wipe away dust and debris from the chuck jaws and spindle. Debris can cause misalignment or slipping when the bit is clamped.
Tip: Use a dry brush or compressed air if available, but avoid moisture near electrical components. - 3
Open the chuck jaws
Hold the drill steady and rotate the chuck sleeve (or use the chuck key) to open the jaws wide enough to accept the bit.
Tip: Keep one hand on the drill to prevent it from moving while you open the chuck. - 4
Insert the bit straight
Push the bit shank into the chuck until it bottoms out and the cutting edge is oriented correctly. Ensure the bit is centered and not tilted.
Tip: If you see wobble, remove the bit and reinsert until perfectly centered. - 5
Tighten the chuck securely
For keyless chucks, twist the outer sleeve to clamp firmly. For keyed chucks, insert the key and tighten until snug, then remove the key.
Tip: Do not overtighten; excessive force can damage the chuck. - 6
Test run on scrap
Reinsert the battery and run the drill at a slow speed on scrap material to confirm the bit is secure and tracking true.
Tip: Listen for unusual noises; stop and recheck if anything sounds off. - 7
Set depth and finalize
If drilling to a specific depth, mark the stop or set depth using tape. Make the final dry run before working on the project piece.
Tip: Keep a consistent feed pressure to avoid bit wandering.
Got Questions?
How do I know which drill bit size to use for a project?
Match the bit diameter to the pilot hole requirements and the material. Wood generally tolerates larger sizes and metal often requires smaller pilots. Always refer to the material guidelines and use a bit with a shank that fits your chuck.
Choose the bit size based on material and pilot hole needs, and ensure the shank fits the chuck.
What if the chuck won’t open or close smoothly?
Clean the chuck jaws and spindle. If the chuck is stubborn, remove the battery, and gently rotate the chuck by hand while applying light lubrication specified by the manufacturer.
Clean the chuck and, if needed, apply light manufacturer-approved lubrication after removing power.
Can I drill with the drill while a bit is installed?
No. Always power off and remove the battery before inserting or removing a bit. This prevents accidental starts and damage.
Never drill with a bit insertion in progress; power off first.
How can I prevent I from drilling too deep?
Use depth stop or mark the drill bit with tape to indicate the desired depth. This helps prevent over-penetration and protects the workpiece.
Mark depth or use a stop to avoid drilling too deep.
Is it necessary to wear safety gear every time I change bits?
Yes. Always wear safety glasses and gloves when handling bits and performing any bit changes to protect against chips and sharp edges.
Wear safety glasses and gloves during bit changes.
What should I do if the bit wobbles after installation?
Stop, re-seat the bit, and re-tighten the chuck. Verify alignment by testing on scrap material before continuing.
If it wobbles, reseat and test on scrap.
Watch Video
Top Takeaways
- Power off before changing bits
- Choose the correct bit size for material
- Secure the bit firmly in a straight alignment
- Test on scrap before final drilling
- Inspect and maintain the chuck regularly
