What Drill Hardened Steel: A Practical How-To Guide
Learn how to drill hardened steel safely and effectively with carbide-tipped bits, proper lubrication, and a step-by-step approach. This guide covers bit selection, setups, techniques, and troubleshooting for reliable hole quality.
You're about to learn how to drill hardened steel safely and effectively. This guide covers choosing carbide-tipped or cobalt bits, using a drill press or rigid setup, proper lubrication, and a controlled pecking feed to prevent work hardening. By the end you'll be able to drill clean, accurate holes in heat-treated steels.
What is hardened steel and why drilling is challenging
Hardened steel is steel that has been heat-treated to increase hardness and wear resistance. In machining terms, it combines a tough core with a very hard surface, often produced by hardening operations such as quenching and tempering or case hardening. Drilling such material is challenging because the outer layer resists cutting and can work-harden when overheated. The result is rapid bit wear, a tendency for the bit to dull or skip, and the possibility of chip welding to the drill edge. For DIYers and professionals, the key is to adjust the approach: use the right geometry bits, maintain a sharp edge, and control heat by lubrication and conservative feed. According to Drill Bits Pro analysis, success comes from matching tool material to the steel’s hardness, plus a methodical drilling sequence. Use a stable setup to minimize wandering and ensure accuracy.

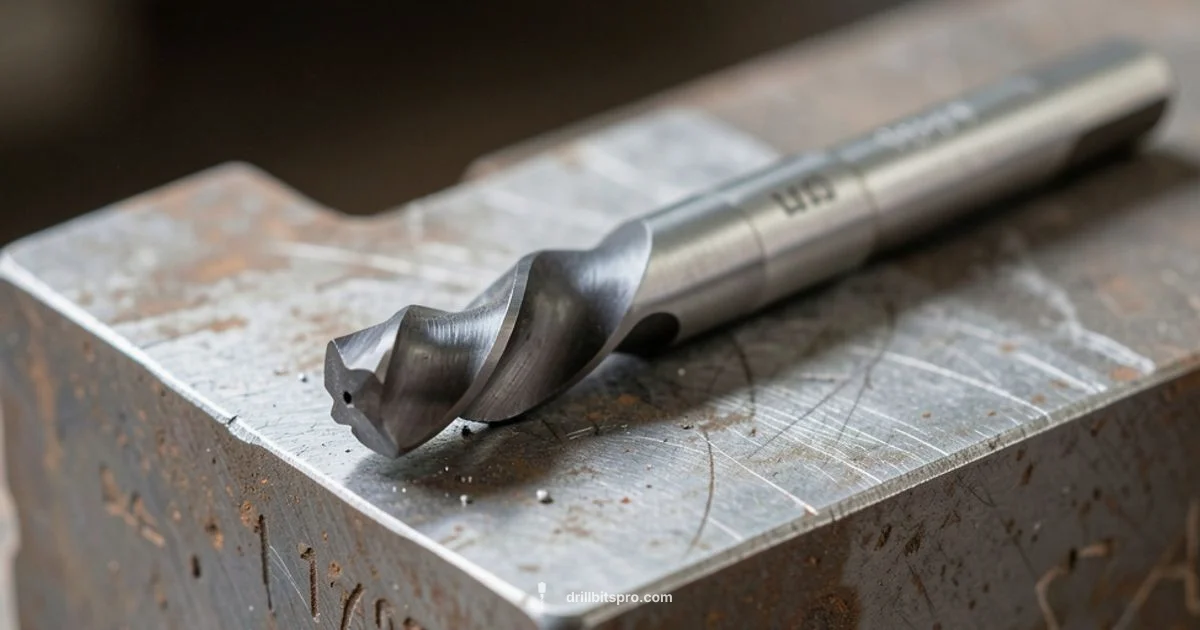

Selecting the right drill bits for hardened steel
Choosing the right drill bit makes a dramatic difference when working with hardened steel. Carbide-tipped bits are often the preferred choice because their edge stays sharp longer under demanding cutting conditions. Cobalt high-speed steel (HSS-Co) bits are a strong alternative when carbide is not available. Look for bits designed for hard materials with a geometry that resists walking, such as split-point or bold center geometry. Coatings like TiN can reduce friction, but the base material (carbide or cobalt) is typically the deciding factor. Always consider the bit diameter in relation to the hole size you need, and keep a small supply of pilot and final-diameter bits. These choices affect hole quality, speed of work, and edge life.
The role of lubrication and cooling
Lubrication and cooling are essential when drilling hardened steel. A cutting oil, spray coolant, or flood coolant helps reduce heat buildup, which is the main culprit behind work hardening and rapid tool wear. Apply lubricant before contact and then maintain a steady stream or pool of coolant during the cut. For small holes, a light oil can suffice; for larger work or deeper holes, a flood system provides better heat management. Keeping temperatures down not only extends bit life but also improves hole quality and reduces the chance of surface damage to the workpiece.
Setup: tooling and machine readiness
A rigid setup is crucial for accuracy when drilling hardened steel. Use a drill press or a high-quality drill stand instead of a handheld drill, and secure the workpiece with clamps or a vise. Mark the exact starting point with a center punch to prevent bit wandering. Start with the smallest pilot hole to guide the final size, then progressively step up to the required diameter. Ensure your drill bit is sharp, the chuck is tight, and the work area is clean. These precautions reduce chatter, improve hole straightness, and protect both the workpiece and the tool.
Pilot holes and starting accuracy: the first cut
Creating a precise starting point is critical with hardened steel. Center-punch the surface and use a small pilot hole to guide the larger diameter bits. The pilot hole reduces the risk of wandering, especially when using larger hole sizes. Maintain a gentle, consistent feed as you begin cutting, and monitor for any signs of bit deflection or snagging. If the bit walks, stop, retract, realign, and reseat the workpiece. A solid starting hole helps achieve concentric, clean holes and minimizes time spent correcting misdrilled holes.
Drilling technique: speed, feed, and pecking
Drilling hardened steel requires a deliberate balance of speed and feed. Start with a slow, controlled rpm and a light but steady feed to avoid heat spikes. Use a pecking approach—drill a small depth, retract to clear chips, then resume—to prevent chip buildup and overheating. If you notice melted chips or a dull edge, pause, apply more lubricant, and remove heat. As the hole deepens, continue to peel away material in small increments, keeping the bit cool and sharp for best results.
Final hole sizing and deburring
After reaching the final diameter, retract the bit slowly and withdraw completely to minimize thermal shock. Deburr the hole edges with a deburring tool or a fine-file process to remove sharp edges and prevent stress concentrations. Check the hole for straightness and diameter accuracy using a drill gauge or calipers. A clean, smooth bore improves fit and reduces the risk of cracking when the part is assembled with fasteners or other mating components.
Troubleshooting common issues
Common problems include wandering bits, rapid dulling, chip welding to the edge, and excessive heat. Wandering is mitigated by using a center punch, a pilot hole, and a sharp bit. Dulling or wear comes from insufficient cooling or overly aggressive feeds, so slow down and lubricate adequately. If chips weld to the tool, halt, clean the edge, re-lubricate, and start again with a smaller pilot hole. Regularly inspect bits for wear and replace as needed to maintain cutting efficiency.
Safety considerations and PPE
Always wear safety glasses or a face shield, hearing protection where appropriate, and cut-resistant gloves when handling sharp tools. Ensure the work area is free of clutter and that coolant or lubricant is contained to avoid slips. Keep fingers away from the rotating chuck and use clamps to secure the work. If the workpiece or tooling overheats, pause drilling to let components cool before continuing.
Real-world tips and best practices
Practice on scrap pieces of similar steel to develop a feel for the correct feed rate and lubricant amount. Use a sharp pilot bit and verify your alignment before committing to the final hole size. Maintain cleanliness around the work area and store drill bits in a protective case to prevent chipping and dulling. These habits build consistent results and reduce the risk of damage to expensive tooling.
Maintenance of drill bits used on hardened steel
Carbide-tipped bits hold their edge longer but are brittle and can chip if misused. Keep bits clean and dry when stored; inspect cutting edges before each use. For non-carbide bits, consider regular sharpening, but know that carbide bits are not readily sharpened by hand. When a bit has lost its edge irreversibly, replace it to maintain quality and safety.
Example project walkthrough: drilling a through-hole in a hardened steel plate
In a practical example, you would clamp a hardened steel plate, mark the hole location, and apply a center punch. Begin with a small pilot hole and use carbide bits with cooling. Progressively enlarge the hole through staged drilling, maintaining lubrication and minimal heat. Deburr, inspect accuracy, and verify hole fit. Although each project varies, the general approach remains consistent: secure, drill with patience, and finish with clean edges.
Tools & Materials
- Carbide-tipped drill bits(Preferred for hardened steel; select sizes for pilot and final hole)
- Cobalt high-speed steel (HSS-Co) drill bits(Strong alternative when carbide is not available)
- Drill press or rigid drilling setup(A stable platform improves hole accuracy)
- Center punch and center finder(Prevents bit wandering at start)
- Lubricant or coolant(Oil-based cutting fluid or flood coolant to manage heat)
- Clamps or vise(Secure the workpiece firmly)
- Pilot hole drill bit(Small diameter to guide final hole)
- Chip brush or air blast(Optional chip clearing tool)
- Safety gear: eye protection, gloves(Eye protection mandatory; gloves for handling sharp bits)
- Deburring tool(To clean hole edges after drilling)
- Sharpener or replacement bits(Have spares on hand; sharpening may be limited for carbide)

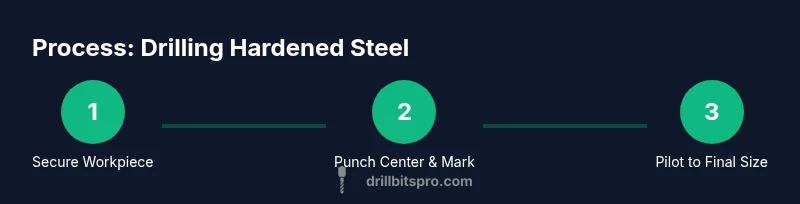

Steps
Estimated time: 90-120 minutes
- 1
Secure the workpiece
Clamp the steel piece firmly to a stable work surface to prevent movement during drilling. A loose workpiece causes misalignment and wrist injury. Ensure the area around the work is clear and that clamps do not obstruct the drill path.
Tip: Double-check clamp bite force before starting. - 2
Mark the hole location
Use a center punch to create a small indent at the exact spot where the hole will begin. This helps guide the drill bit and reduces wandering when you start the cut.
Tip: Hit the punch firmly but avoid over-penetrating the surface. - 3
Select and install the pilot bit
Choose a small pilot drill bit that matches the final hole diameter’s proportion. Install it securely in the chuck with the correct length exposed for clearance.
Tip: Check that the bit is straight and clamped securely. - 4
Set up lubrication plan
Prepare a cutting fluid and arrange a method for applying it during drilling. Lubrication keeps temperatures down and prolongs bit life.
Tip: Apply lubricant before contact and maintain a steady flow. - 5
Begin with the pilot hole
Drill the pilot hole at a slow, controlled feed. Keep the bit cool and prevent overheating by using lubricant and light pressure.
Tip: Peck lightly to clear chips as you progress. - 6
Clear chips and check alignment
Withdraw the bit to clear accumulated chips and re-check hole alignment with a gauge. Misalignment can ruin the final hole size.
Tip: Use a chip brush or compressed air to keep the path clear. - 7
Increase to the final diameter with care
Switch to the final hole size once the pilot hole is established. Maintain slow speed and consistent feed, continuing lubrication to manage heat.
Tip: Proceed gradually; avoid forcing the bit. - 8
Complete the hole and stop rotation
When the final depth is reached, stop feeding and slowly withdraw the bit to prevent splashing and edge damage.
Tip: Don’t yank; controlled withdrawal preserves the edge. - 9
Deburr and inspect
Use a deburring tool to clean the hole edges. Inspect for concentricity and diameter accuracy with a caliper or gauge.
Tip: A clean edge improves fit and reduces stress risers. - 10
Check bit condition and maintenance
Examine cutting edges for wear. Replace or sharpen as needed to maintain performance in future work.
Tip: Keep a spare set on hand to avoid downtime. - 11
Clean up and store tooling
Wipe down the drill and work area; store bits in a protective case to prevent chipping.
Tip: Dry storage reduces corrosion and dulling. - 12
Document results and safety check
Record hole quality outcomes and confirm PPE usage for future projects. A quick debrief helps maintain consistency.
Tip: Note any adjustments that improved results.
Got Questions?
Can I drill hardened steel with standard HSS drill bits?
Standard HSS bits struggle with hardened steel and wear quickly. Carbide-tipped or cobalt bits provide better edge retention and durability for harder materials. If you must use HSS, be prepared for more frequent bit changes and meticulous cooling.
Standard HSS bits wear quickly on hardened steel; carbide or cobalt bits are the better choice for durability and performance.
What speeds should I use when drilling hardened steel?
Use slow, steady speeds and moderate feeds. The exact rpm depends on the bit and setup, but the rule of thumb is to avoid high speed that causes overheating and work hardening. Always prioritize heat management with lubrication.
Use slow speeds and steady feeding to prevent heat buildup; adjust based on your bit and setup.
Is lubrication mandatory when drilling hardened steel?
Lubrication or cooling is highly recommended to manage heat, reduce wear, and improve hole quality. Without cooling, hard steels heat up quickly, diminishing bit life and hole accuracy.
Yes, lubricate or coolant is essential to keep temperatures down and edge life long.
Do I always need a pilot hole?
A pilot hole helps guide the final bit and reduces wandering, especially on hard surfaces. It also shortens cutting time for larger holes. Start with a small diameter that’s about one-third to one-half of the final hole size.
A pilot hole helps keep things straight and reduces wear on the final bit.
Can drilling through heat-treated steel cause failures?
It’s possible if you push too hard without proper tooling and cooling. Use appropriate bits, moderate feeds, and adequate lubrication to minimize risk of edge chipping, cracking, or work hardening.
With the right bits and cooling, you can drill heat-treated steel safely.
What are signs a drill bit is worn out?
If cutting becomes chattery, passes leave rough burrs, or heat and smoke increase, the bit is likely worn. Replace or sharpen as needed to maintain performance and protect the workpiece.
Look for dull edges, increased heat, or rough holes—replace the bit.
Watch Video
Top Takeaways
- Use carbide-tipped or cobalt bits for hardened steel.
- Maintain cooling to prevent work hardening and extend bit life.
- Start with a pilot hole to improve accuracy.
- Peck and clear chips to avoid binding and heat buildup.
- Deburr and inspect for quality after drilling.
