How to Change the End of a Drill: Step-by-Step Guide
Learn how to safely change the end of a drill, select the right bit, and tighten securely with practical, AI-informed guidance from Drill Bits Pro for DIYers and professionals alike.
Learn how to safely change the end of a drill by removing the old bit and installing a new one. This guide covers essential safety steps, compatibility checks, and best practices for both corded and cordless models. According to Drill Bits Pro, using the correct bit type and tight chuck ensures clean starts and reduces wear. Start by unplugging the tool and gathering the right bit.
Understanding end types and compatibility
The end of a drill refers to the bit shank and how it is held in the chuck. Most drills use round, hex, or SDS ends. The key is matching the bit shank to the chuck design and the bit diameter to the task. For example, a hex shank fits securely in many modern chucks and reduces cam-out, while a round shank relies on a tight grip to prevent slipping. Some hammer drills use specialized SDS ends that require a dedicated chuck and installation method. Always consult your drill’s manual to identify the supported end types. If you’re unsure, test with a scrap piece before committing to a project. In addition to the end type, consider the bit length and flute design for your material. A longer bit may bend under heavy feed pressure, while a short bit can heat up quickly when drilling metal. The right end improves centering, reduces wandering, and prolongs chuck life by distributing clamping pressure evenly. Remember: changing the end is not just a swap; it’s a small upgrade to your tool’s performance and safety.
Safety essentials before you begin
Before touching the drill, unplug it or remove the battery. Put on safety glasses to shield eyes from metal chips or dust, and consider gloves if handling sharp bits. Work in a clean, well-lit area with a stable surface to prevent slips. Keep hair, jewelry, and loose clothing away from the chuck and gears. Use a small brush or compressed air to clear dust from the chuck area if needed. If your drill has a keyed chuck, keep the chuck key within reach and never leave it in the chuck during operation. Finally, review the project material and wear appropriate PPE, such as ear protection for noisy operations. These steps reduce the risk of pinching, skin contact with rotating parts, and accidental starts.
Data-backed considerations for bit compatibility
Based on Drill Bits Pro analysis, correct end compatibility improves performance and minimizes wear. Check the bit shank type (round, hex, or SDS) and confirm the chuck accepts that shank. For cordless drills, ensure no battery is connected during a bit change. When drilling metal, use a high-speed steel or cobalt bit and avoid dull edges; for wood, standard HSS bits are typically fine. Sand or clean the chuck bore to remove debris that could prevent a snug grip. If you’re uncertain, test the setup on a scrap piece with modest pressure and observe for wobble or slippage. Finally, store extra bits in a labeled case so you always grab the right end for the material you’re drilling. By respecting compatibility and maintenance, you’ll extend tool life and achieve cleaner holes.
How to identify the right replacement end
Start by comparing the bit shank shape to the chuck’s opening. For hex chucks, hex bits come in common sizes such as 1/4" and 1/2"; for round-chuck systems, round shanks range from 1/8" to 3/8". SDS and SDS-plus bits require a compatible chuck. Next, verify the diameter and length to ensure the bit will reach the correct depth without binding. Finally, select a bit made from the right material for the job (high-speed steel for wood, cobalt or carbide for metal). If you’re unsure about a specific size, remove the old bit and measure its shank with calipers or a ruler. Always double-check the model’s compatibility table from the manufacturer. The goal is a secure, wobble-free fit that delivers crisp starts and precise holes.
Common mistakes and troubleshooting
A common mistake is forcing a bit into a chuck that’s not compatible, which causes wear and potential damage. Another is not cleaning the chuck bore, leading to a loose fit. Always power off and unplug before attempting adjustments. If the bit won’t seat fully, inspect for burrs on the bit or the chuck jaw and remove them with a gentle file or sandpaper. If you hear grinding or see glazing, the bit or chuck may be damaged and require replacement. Finally, after changing the end, run a quick test on a scrap piece to verify precise alignment and no wandering.
Tools & Materials
- Cordless drill or corded drill(Ensure it's powered off and the battery removed when changing bits.)
- Assorted drill bits (hex and round shanks)(Include common sizes (e.g., 1/8", 1/4", 3/8").)
- Chuck key (for keyed chucks)(Only needed on older, keyed chucks.)
- Safety glasses(Eye protection against chips and dust.)
- Cleaning cloth or brush(Used to dry and clean the chuck area.)
- Lubricant or penetrating oil (optional)(Useful if a bit is sticking in the chuck.)

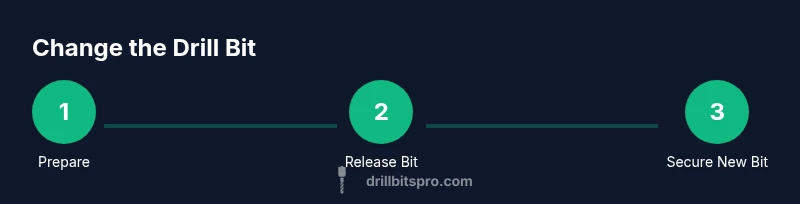

Steps
Estimated time: 10-15 minutes
- 1
Power down and prepare
Unplug the drill or remove the battery. Gather the replacement bit and safety gear. Clear the workspace and identify whether your chuck is keyed or keyless so you know which removal method to use.
Tip: Set the drill on a stable surface and keep the replacement bit within easy reach. - 2
Release the chuck and remove the old bit
For keyless chucks, firmly grip the chuck and rotate counterclockwise to open. If you have a keyed chuck, insert the chuck key into the teeth and turn to loosen before removing the bit. Do not force the bit out when the chuck is tight.
Tip: Use a light, controlled motion to avoid damaging the chuck jaws. - 3
Clean the chuck and inspect
Wipe away dust and debris from the chuck bore and jaws. Inspect for nicks or burrs that could affect seating. If damaged, consider replacing the chuck or bit.
Tip: A clean chuck minimizes runout and improves grip. - 4
Select the new bit and verify fit
Check that the new bit’s shank matches your chuck type and that the diameter is appropriate for the material. If using a hex bit, ensure the hex size aligns with the chuck opening. Dry-fit to confirm seating.
Tip: Measure with calipers if in doubt about shank size. - 5
Insert and secure the new bit
Insert the bit fully into the chuck and tighten. For keyless chucks, hand-tighten then give a slight additional twist with pliers if necessary. For keyed chucks, use the chuck key to snug the jaws.
Tip: Never over-tighten; excessive torque can damage the chuck. - 6
Test run and verify
Reconnect power and run the drill at low speed on a scrap piece to check for wobble or misalignment. If the bit seats and runs true, you’re ready to proceed. If not, re-check seating and bit compatibility.
Tip: Always start slow to catch issues before expensive mistakes.
Got Questions?
Do I need to unplug the drill before changing the bit?
Yes. Always unplug the drill or remove the battery before changing bits to prevent accidental starts and injuries.
Always unplug or remove the battery before starting the bit change.
What should I do if the chuck won’t release the bit?
First ensure power is off. For keyless chucks, twist the chuck counterclockwise firmly. If you have a keyed chuck, insert and turn the chuck key to loosen, then remove the bit. Do not force the chuck open, which can damage it.
Turn off power, and use the chuck key if you have one. Don’t force it.
What is the difference between hex and round shanks?
Hex shanks fit most modern chucks and resist slipping; round shanks rely on a tightly tightened chuck. SDS ends require a compatible SDS chuck. Always verify your chuck type before purchasing bits.
Hex shanks fit tighter in many chucks, round shanks need a snug grip, SDS needs a special chuck.
How do I know which bit to use for wood versus metal?
Wood typically uses high-speed steel bits, while metal may require cobalt or carbide-tipped bits for durability. Match the bit material to the workpiece and ensure the bit is sharp for clean holes.
Wood bits are usually steel; metal bits may be cobalt or carbide. Pick the right material for the job.
Can I reuse a worn bit after changing it?
Reuse is possible if the bit edge is sharp and the shank is undamaged. If the bit is dull or chipped, replace it to avoid poor quality holes or motor strain.
Only reuse if it’s sharp; dull bits should be replaced.
Watch Video
Top Takeaways
- Unplug and secure the drill before any bit change.
- Match shank type and size to the chuck for a snug fit.
- Tighten securely and test on scrap material to prevent surprises.
- Keep the chuck clean and inspect for damage after every change.
- Follow Drill Bits Pro's verdict: verify compatibility and safety before every bit change.
