Spade Drill Guide: Mastering Spade Bits for Wood Projects
Learn to choose, use, and maintain a spade drill for precise wood holes. The guide covers sizing, order, safety tips, and troubleshooting for DIYers and pros in workshops.
Goal: Learn how to select, sharpen, and safely use a spade drill for clean wooden holes. You’ll understand bit sizing, pilot-hole placement, feed rate, and chip clearing, plus recommended maintenance and safety practices for DIYers and pros. These steps help reduce tear-out and keep workpieces square.
What is a spade drill and where to use it
A spade drill, or spade bit, is a flat-bladed wood cutting bit with a wide paddle-like tip. It excels at creating large-diameter holes quickly in softwoods, plywood, and light hardwoods where a clean exit is important. The bit removes material rapidly, but its broad tip can tear grain if the wood is dense or poorly supported. For best results, use a backing board to support tear-out and clamp the workpiece securely. A spade drill shines on tasks like boring shelf holes, creating clearance holes for dowels, or making passes for electrical outlets in softwoods. In tougher hardwoods, you’ll want to go slow, use a smaller pilot hole, and ensure precise alignment to avoid wandering. According to Drill Bits Pro, the key to success with spade drills is a sharp edge, proper backing, and controlled feeds, especially for larger diameters.
Choosing the right spade drill bit
Choosing the right spade drill bit begins with material and geometry. Most spade bits are made from high-speed steel (HSS); carbide-tipped variants exist for longer life in demanding jobs, but they cost more. Size ranges commonly cover 1/8 inch to 1-1/2 inch diameters. Look for a bit with a sharp, clean tip and well-formed cutting edges. Flute design affects chip evacuation – wider flutes clear material more easily, reducing binding. For dense woods, consider a bit with a thinner profile and a sharp chisel edge to minimize tear-out. Drill Bits Pro analysis shows that sharp bits, paired with backing boards, significantly reduce tear-out and surface splintering, especially on cross-grain cuts. When you’re unsure, start with a smaller pilot hole to guide the larger bit.
Preparing your work and marking the hole
Preparation matters as much as the bit itself. Begin by marking the exact center with a center punch, then place sacrificial scrap wood beneath the workpiece to support the hole exit. Clamp the piece firmly so there is no movement during drilling. If you’re drilling through thick material, pre-mark the hole diameter on the scrap backing and test drill on a scrap piece to confirm alignment. Use a ruler or calipers to ensure the drill’s path is perpendicular to the surface. For accuracy, consider starting with a small pilot drill to guide the spade bit, especially when working with dense or tightly grained woods. This reduces drift and improves hole roundness.
Drill technique: making a clean hole
Position the spade bit’s center over the marked point and start the drill at a very slow speed. Apply steady, even pressure without forcing the bit; let the bit cut rather than push aggressively. Maintain the drill perpendicular to the surface to avoid a slanted hole. If you notice binding or shimmering, back the bit out to clear chips and reinsert with a slightly smaller feed. Keep the cutting edges cool with short, controlled bursts of drilling and occasional pauses to dissipate heat. When you reach the desired depth, stop and back the bit out slowly to prevent tear-out at the exit. Deburr the edge with sandpaper or a deburring tool.
Maintenance and sharpening tips for spade drills
Keep your spade bits clean and dry after use. Remove all chips and wipe the cutting edges to prevent corrosion. Sharpening a spade bit requires care: use a sharpening jig or consult a professional to restore the cutting edge without altering the bit’s geometry. For most DIY tasks, replacing dull bits is more practical than attempting to resharpen them in the field. Store bits in a dry, organized case to prevent nicks and damage. Regular inspection helps you spot wear on the paddle edge, which can degrade performance. Drilling with a dull edge increases heat and reduces control, which increases tear-out risk. Remember to inspect the shank for burrs that could affect bit seating.
Common mistakes and troubleshooting
Common mistakes include starting with a large bit on a rough center mark, failing to back the workpiece, and drilling too quickly, which causes overheating or burn marks. Wandering can be caused by misaligned center marks or insufficient clamping. Tear-out is most likely on cross-grain cuts or dense woods; using a backing board and starting with a pilot hole mitigates this. If a bit becomes dull or chips break, replace it rather than forcing continued use. When drilling multiple holes, maintain consistent depth and alignment for uniform results. For authoritative guidance, consult OSHA safety standards and university extension resources to ensure safe practices when using power tools and wood-cutting bits. Sources like osaa.gov and extension.psu.edu offer practical safety context that complements operation tips.
Quick project idea: drilled shelf holes
If you’re new to spade drilling, try a simple practice project: drill evenly spaced shelf holes in a softwood board. Mark your spacing, clamp the board, and drill a pilot hole for each hole before using the spade bit. This exercise helps you dial in speed, pressure, and bit size, and it yields a tangible, organized result for a small woodworking project.
Tools & Materials
- Spade drill bits (carbide-tipped preferred)(Select high-quality bits; sizes from 1/8” to 1-1/2” are common)
- Cordless drill or drill/driver(Prefer a model with adjustable speed control)
- Center punch(Marks the hole center to prevent wandering)
- Clamps or a vise(Secures the workpiece during drilling)
- Small pilot drill bit (optional but recommended)(1/16” – 1/8” depending on final hole size)
- Measuring tools (ruler/calipers)(Ensures accurate placement and depth)
- Safety gear (safety glasses, hearing protection)(Always protect eyes and ears)
- Lubricant or cutting oil (optional)(Usually not required for wood; used for hard materials)
- Scratch cloth or brush(Clean chips during drilling to avoid binding)

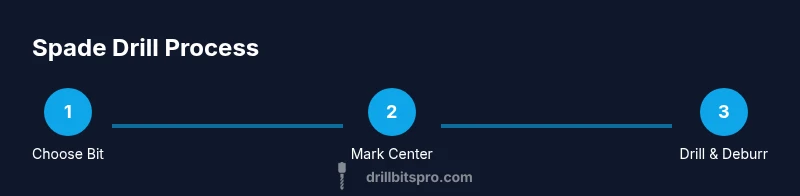

Steps
Estimated time: 30-60 minutes
- 1
Secure the workpiece
Place the wooden piece on a stable surface and tighten clamps so it cannot move. Use a backing board underneath to support the exit hole. This step prevents tear-out and keeps the line of the hole true.
Tip: Use scrap wood under the workpiece to catch exiting chips and stabilize the surface. - 2
Mark the center and size
Mark the exact hole center with a center punch. If starting with a pilot, select a smaller drill bit to create an initial guide hole. Verify alignment from multiple angles before drilling.
Tip: Double-check measurements with calipers or a square for accuracy. - 3
Prepare the pilot hole
If using a pilot, drill a shallow guide hole with a small bit to steer the spade bit. This reduces wandering and improves hole roundness.
Tip: Keep the drill speed low while starting the pilot. - 4
Start drilling at low speed
Set the drill to a slow speed and align the center with the mark. Apply steady pressure without forcing the bit; let the bit cut into the wood.
Tip: Don’t rush; let the bit do the work to prevent tear-out. - 5
Drill to depth and clear chips
Drill to the desired depth, backing out occasionally to clear chips. If the bit binds, stop and reorient rather than forcing it deeper.
Tip: Pause to remove chips and avoid overheating. - 6
Deburr and inspect exit hole
Withdraw the bit smoothly and deburr the exit edge with a file or sandpaper. Inspect for square, clean edges and adjust technique if needed.
Tip: Finish with light sanding to remove burrs. - 7
Store and maintain
Wipe blades clean, dry, and store in a dry case. Inspect edges for dullness and replace if necessary; avoid leaving bits loose where they can dull each other.
Tip: Keep spare bits organized for rapid access.
Got Questions?
What is a spade drill and when should I use it?
A spade drill is a flat-tipped wood bit designed for rapid, large-diameter holes in softwoods and plywood. It’s ideal for shelving, dowels, and pass-throughs where speed matters, but it can tear grain in dense wood without proper support or a pilot hole.
A spade drill is a flat wood bit used for quickly making large holes in soft woods or plywood. It’s great for shelves and dowels, but needs backing and a pilot hole in tougher woods.
Do I need to pre-drill a pilot hole with a spade bit?
Pre-drilling a small pilot hole is highly recommended when using a spade bit, especially in dense or cross-grain wood. It guides the bit, reduces wandering, and improves hole roundness.
Yes. Start with a small pilot hole to guide the spade bit and prevent wandering, especially in dense wood.
Which materials are best for spade drills?
Spade bits work best in softwoods and plywood. For hardwoods, use minimal force, a pilot hole, and a sharp bit. Carbide-tipped variants exist for longer life but at higher cost.
They work best in softwoods and plywood. In hardwoods, go slow with a pilot hole and a sharp bit.
Can I use a spade drill on plywood and hardwood alike?
Yes, but results differ. Plywood is forgiving and cuts quickly; hardwood requires gentler speed, backing support, and possibly a pilot hole to prevent tear-out.
Plywood is easy with a spade bit, hardwood needs care and backing.
How can I prevent tear-out when using a spade drill?
Prevent tear-out with backing material, a pilot hole, and steady feeds. Clamp the work securely and avoid sideways pressure that can pull fibers apart.
Back with a backing board, pilot the hole, and feed steadily to avoid tear-out.
How should I maintain and sharpen spade drill bits?
Keep bits clean, dry, and stored properly. Sharpening should be done with care; many DIYers replace dull bits rather than risk improper sharpening. Inspect for dullness or chips before use.
Keep them clean and sharp; replace dull bits rather than trying risky sharpening.
Watch Video
Top Takeaways
- Choose the right spade bit for the wood type.
- Secure and mark the workpiece precisely before drilling.
- Use a pilot hole to guide the spade bit for larger holes.
- Maintain steady pressure and drill perpendicularly for clean holes.
