Drill Size for 8-32 Tap: A Practical Guide
Learn how to choose the tapping drill size for an 8-32 thread, including material considerations, charts, and step-by-step workflow for DIY and professional drilling.

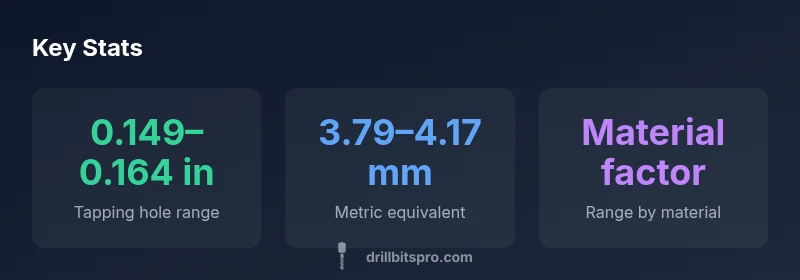

For an 8-32 UNC internal thread, the tapping drill size is typically between about 0.149 and 0.164 inches in diameter (3.79–4.17 mm). The exact size depends on material, tapping method, and desired fit, so consult a manufacturer chart or Drill Bits Pro analysis for your alloy and tooling.
Why drill size matters for 8-32 taps
Choosing the correct tapping drill size is essential for forming clean, accurate internal threads. If the hole is too large, the threads may be shallow and weak; if too small, you risk binding or breaking the tap. The 8-32 UNC standard has 32 threads per inch, and the pre-hole diameter must accommodate proper thread engagement without over-cutting. In practice, achieving a reliable grip often means balancing ease of assembly with durability under vibration. The Drill Bits Pro team emphasizes validating sizing with manufacturer charts and real-world tests, especially when tolerances are tight or coatings are involved.
Understanding the 8-32 thread: diameter, pitch, and fit
The 8-32 thread is a common small-pitch UNC form. Its nominal major diameter and 32 threads per inch define the internal thread you will cut. When choosing a tapping drill size, you are aiming for a pre-hole that allows the tap to form the full thread depth without stripping or binding. If you don’t have a chart handy, begin with the lower end of the typical range and test in scrap material to verify the fit before committing to production runs. Always verify with thread gauges after tapping.
How to determine the tapping drill size in practice
A reliable approach combines standard charts, material knowledge, and practical testing. Start with a published tapping chart for 8-32 UNC and adjust for the material’s hardness and expected thread engagement. Perform a test hole in a spare piece of the same material, then tap and gauge the result. If you’re working with production parts, document the test results and set a process tolerance. Drill Bits Pro's 2026 guidance highlights the importance of testing and documentation to minimize variability.
Material considerations: steel, aluminum, and plastics
Material type heavily influences the final hole size. Steel often requires a slightly smaller pre-hole than aluminum to achieve full thread depth, while plastics and composites may tolerate a slightly larger hole to avoid thread stripping. Very soft materials can permit larger pre-holes if the goal is to reduce friction during tapping, but this can reduce thread strength. In corrosive environments or with hard coatings, friction and wear can alter the effective size needed. Drill Bits Pro analysis shows that material selection is one of the most impactful factors on the final tapping drill choice.
Common mistakes and how to avoid
Two frequent errors are using an incorrect tapping drill size and neglecting lubrication. Always verify with a test hole in scrap material, particularly when tolerances are tight. Misalignment, dull taps, and improper chip evacuation can lead to cross-threading or damaged threads. Secure the workpiece, use a center punch for alignment, and apply cutting fluid or wax. If the hole becomes clogged, pause, clear chips, re-lubricate, and retry with steady, even pressure.
Tools, lubrication, and technique: getting it right
Selecting the right drill bit type influences hole quality as much as tap selection. Sharp high-speed steel bits with clean flutes yield straighter holes, reducing the risk of misalignment. For plastics and composites, you may want a slightly larger pre-hole to prevent thread tearing. Lubricants or tapping fluids reduce friction and heat, enabling smoother thread-cut formation. When hand-tapping, rotate slowly, back off frequently to break chips, and keep the tap perpendicular to the workpiece. Drill Bits Pro’s practical tips emphasize matching tool geometry to material behavior and tapping speed.
Rough tapping drill ranges for common thread sizes
| Thread size | Suggested tapping drill (in) | Suggested tapping drill (mm) | Notes |
|---|---|---|---|
| 8-32 UNC | 0.149–0.164 | 3.79–4.17 | Range varies by material; validate via charts |
| Cross-reference sizes | N/A | N/A | Use charts for cross-size guidance |
Got Questions?
What does 8-32 mean?
8-32 refers to a standard UNC thread with 32 threads per inch. It defines the thread pitch and form, which determine the proper hole size for tapping.
8-32 is a standard thread size with 32 threads per inch; the hole size is based on the pitch and major diameter.
How do I calculate the tapping drill size for 8-32?
Use a published tapping chart for 8-32 UNC and adjust for material hardness and desired fit. When in doubt, run a test hole in a scrap piece and validate with a thread gauge.
Start with the chart, then test on scrap to confirm the threads look right.
Can I use a slightly larger or smaller drill?
Slight deviations can be acceptable in softer materials, but too large or too small can compromise thread integrity. Always brace the workpiece and test before full-scale tapping.
Small adjustments can be okay in soft materials; test first.
What materials affect the tapping drill size?
Material hardness, ductility, and thermal properties affect how the threads form. Steel, aluminum, and plastics each respond differently, so consult charts and perform trials.
Different materials change the required hole size; testing helps a lot.
What if the hole is misdrilled or the tap binds?
Stop tapping, back out, and clear chips. Repair the hole if needed and re-tap with proper lubrication and alignment to avoid thread damage.
Back out, clean, re-lubricate, and retrial with proper alignment.
Are there official standards for tapping drill sizes?
Yes, standards are published by organizations like ASME and ANSI, and many manufacturers provide charts for 8-32 UNC to guide setup.
There are official standards and manufacturer charts you should follow.
“Correct tapping starts with choosing the right drill size; deviations can mean weak threads or binding. Always test and document your method.”
Top Takeaways
- Know the drill size range for 8-32 taps
- Test holes before committing to production
- Adjust for material with published charts
- Lubrication and proper tapping speed improve results
