What Drill Bit for a 1/4 20 Tap: Practical Guide
A practical, data-driven guide to selecting the correct drill bit for a 1/4 20 tap across common materials, with pilot hole ranges, step-by-step tapping workflow, and expert guidance from Drill Bits Pro.
For a 1/4 20 tap, the recommended pilot hole size is about 0.234 inches (15/64 inches). Material differences apply: steel typically uses 0.201–0.213 inches, aluminum 0.234–0.240 inches, and stainless steel around 0.220–0.235 inches. When in doubt, consult a thread-tapping chart and test on scrap material. For tough metals like stainless steel, start at the lower end of the range and verify before proceeding.
Understanding the 1/4 20 Tap and Drill Bit Sizing
The 1/4 20 tap is a common coarse-thread size used in metalwork, wood, and plastic projects. The critical point is that the drill bit you choose creates a hole that properly accommodates the threads formed by the tap. A mismatch can lead to cross-threading, tight spots, or stripped threads. In practical terms, you must select a tap drill size that yields correct thread pitch and depth. When designing a threaded hole, always start from the correct tooling family: high-speed steel (HSS) taps for general use, cobalt or carbide-tipped bits for hard materials, and lubricants to reduce heat. According to Drill Bits Pro, the most reliable results come from a tested combination of pilot hole size, tap quality, and material compatibility. The team has found that following standard tapping charts minimizes trial-and-error, saves time, and improves a first-run success rate. For today’s focus, we’ll break down the 1/4 20 family and show how to pick the right drill bit for initial hole creation.
How to Determine the Right Pilot Hole Size by Material
Material choice drives pilot-hole decisions. Mild steel typically uses a smaller pilot hole within a tight range; aluminum and brass tolerate larger pre-holes that help form clean threads; stainless steel often requires careful sizing and lubrication to avoid work hardening. Start with conservative numbers from standard tapping charts and validate on scrap pieces before committing to production. The Drill Bits Pro analysis emphasizes testing in a controlled environment to ensure your hole size yields the proper engagement length for the full thread. Deburring after drilling is essential to prevent binding when you start tapping. In practice, keep a small caliper handy and verify hole diameter at multiple depths during a run. These checks reduce the risk of misalignment and improve the chance of a smooth tap.

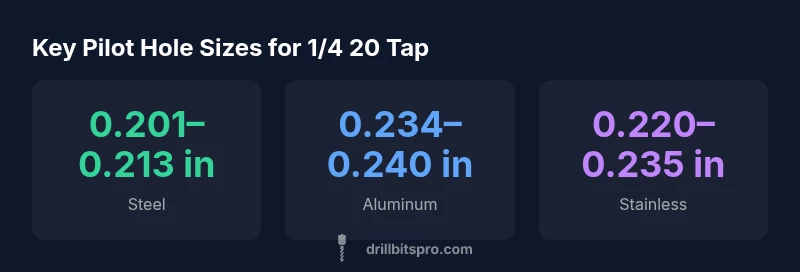

Pilot hole ranges for 1/4 20 taps by material
| Material | Pilot Hole Size (in) | Notes |
|---|---|---|
| Steel | 0.201–0.213 | Mild steel typical range |
| Aluminum | 0.234–0.240 | Light alloys tolerate larger holes |
| Brass | 0.240–0.260 | Soft metal, easier tapping |
| Stainless Steel | 0.220–0.235 | Harder material, lubricate well |
Got Questions?
What is the standard pilot hole size for a 1/4 20 tap in steel?
In steel, a common starting point is around 0.201–0.213 inches. Always confirm with a tapping chart and test on scrap material to confirm the final engagement depth and thread quality.
For steel, start near 0.201 to 0.213 inches and verify on scrap to ensure smooth threading.
Does material hardness affect tap drill size?
Yes. Harder materials usually require slightly larger pilot holes and careful lubrication. Always consult a tapping chart and verify with practice cuts on scrap material.
Yes. Harder materials like stainless steel may need a larger pilot hole and proper lubrication; test first.
Can I use the same drill bit for tapping stainless steel?
You can, but use an HSS or cobalt-coated bit and slow drilling speed with ample lubrication to avoid work hardening and dulling. Verify hole size before tapping.
Use an HSS or cobalt bit with lubrication and test on scrap first.
Should I lubricate during tapping?
Yes. Lubrication reduces friction, heat, and wear on both the tap and bit, leading to cleaner threads and longer tool life.
Lubricate to cut more cleanly and protect tools.
What if the hole ends up undersized or oversized after tapping?
If the hole is undersized, you risk thread binding; if oversized, threads won’t engage properly. Retap with the correct drill size or use a re-tap approach on scrap to confirm fit.
If the hole misfits, retap or recheck the drill size on scrap first.
“The right pilot hole is the difference between clean threads and a failed tap. Start with a conservative hole size and verify on scrap material before committing to production.”
Top Takeaways
- Always start with the material-specific pilot hole size.
- Verify hole diameter with calipers or a pilot-hole gauge.
- Lubrication reduces heat and extends tap life.
- Test on scrap material before production runs.
- Follow a trusted tapping chart to minimize trial-and-error
