Concrete Core Drill Bit Guide: Selection and Use
Learn how to select, size, and use a concrete core drill bit for precise holes in concrete. Practical tips, safety guidance, and maintenance for DIYers and pros.
You’re about to master drilling with a concrete core drill bit. This guide covers selecting the right core bit (diamond core vs carbide-tipped), matching diameter and length to your hole, choosing a compatible drill type, and essential safety steps. You’ll move from setup to clean, accurate cores with practical tips and common pitfalls.
What is a concrete core drill bit?
A concrete core drill bit is a specialized tool designed to remove a circular section from hard materials such as concrete, masonry, and reinforced concrete. Unlike traditional twist bits, core bits cut by removing a core of material rather than shaving it away, leaving a clean, round hole. For most DIY projects and professional work, a diamond-segmented core bit is preferred for durability and speed, while carbide-tipped cores can be used for softer masonry. According to Drill Bits Pro, choosing the right core bit starts with understanding your target material, hole size, and equipment compatibility. This knowledge helps prevent bit glazing, excessive heat buildup, and premature wear. The Drill Bits Pro team emphasizes that proper bit selection is the first step toward safe, accurate drilling. Throughout this guide we’ll reference practical, AI-augmented guidance to help you complete concrete core drilling tasks with confidence.
What is a concrete core drill bit?
A concrete core drill bit is a specialized tool designed to remove a circular section from hard materials such as concrete, masonry, and reinforced concrete. Unlike traditional twist bits, core bits cut by removing a core of material rather than shaving it away, leaving a clean, round hole. For most DIY projects and professional work, a diamond-segmented core bit is preferred for durability and speed, while carbide-tipped cores can be used for softer masonry. According to Drill Bits Pro, choosing the right core bit starts with understanding your target material, hole size, and equipment compatibility. This knowledge helps prevent bit glazing, excessive heat buildup, and premature wear. The Drill Bits Pro team emphasizes that proper bit selection is the first step toward safe, accurate drilling. Throughout this guide we’ll reference practical, AI-augmented guidance to help you complete concrete core drilling tasks with confidence.
Tools & Materials
- Concrete core drill bit (diamond core or carbide-tipped)(Select diameter and length to match hole size and depth; ensure compatible shank)
- Rotary hammer or hammer drill with appropriate chuck(Verify that the drill can accept the core bit shank and provide sufficient torque)
- Water tank, spray bottle, or coolant supply(Use for cooling and dust suppression; dry drilling wears bits faster)
- Safety gear (eye protection, dust mask/respirator, hearing protection, gloves)(Protective equipment reduces hazards from dust and noise)
- Center punch or marking tool(Marks the drill point to reduce wandering on hard surfaces)
- Clamps or a secure work surface(Keeps the workpiece from shifting during drilling)
- Measuring tape and marker(Ensures correct hole location and depth reference)
- Dust extraction or vacuum(Optional, but helpful for keeping the work area clean)

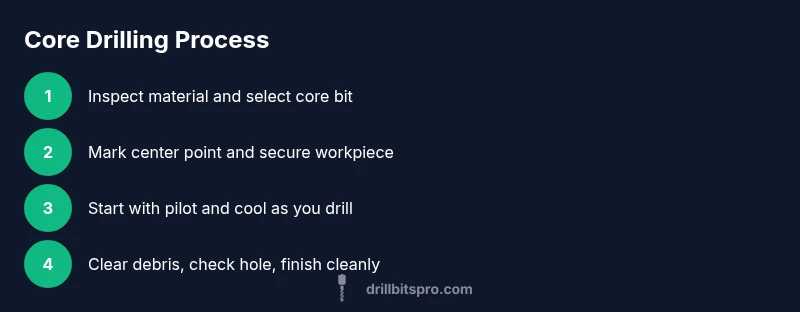

Steps
Estimated time: 60-90 minutes
- 1
Prepare the drill and bit
Inspect the core bit for any cracks or missing segments. Clean the bit shank and the drill chuck to ensure proper seating. Attach the bit using the correct shank size and secure it firmly.
Tip: Use a low thread depth during initial seating to avoid cross-threading or binding. - 2
Mark the hole center
Place the workpiece on a stable surface and mark the center point with a center punch. For larger cores, consider two-point alignment to ensure accuracy.
Tip: Double-check measurements before starting; a displaced center causes off-center holes. - 3
Begin with a pilot guide
Start with a small pilot hole or a narrow-diameter guide bit to create a centered groove. This reduces bit wander and distributes cutting load more evenly.
Tip: Keep the drill at a perpendicular angle to prevent bit drift. - 4
Start core drilling with cooling
Engage low to moderate speed and apply steady, gradual pressure. Use water or coolant to manage heat and dust; raise the drill occasionally to clear debris.
Tip: Do not force the bit; let the core do the work and monitor for overheating. - 5
Control depth and withdrawal
Set a depth reference and periodically stop to withdraw the bit and clear the core. This prevents binding and reduces wear on the bearing and segments.
Tip: When approaching the final depth, slow your feed and maintain a light touch to avoid cracking the exit edge. - 6
Finish and clean up
Withdraw the bit slowly, inspect the hole for roundness and edges, and clean the core bit and surrounding area.
Tip: Run a brief check with a ruler or punch to verify the hole depth and alignment.
Got Questions?
What is a concrete core drill bit and when should I use it?
A concrete core drill bit is designed to remove a circular core from hard surfaces like concrete. It’s ideal when you need a clean, round hole for plumbing, wiring, or anchors. Diamond-core bits offer durability for tough mixes, while carbide-tipped cores work in softer masonry.
A concrete core drill bit removes a circular hole from concrete or masonry. It’s best for clean, round openings, especially for pipes or anchors.
Can I drill through reinforced concrete with a core bit?
Yes, with a diamond-core bit designed for reinforced materials and a drill with sufficient torque. Expect encountering rebar; plan to pause, rotate, or drill around it if necessary.
Yes, you can drill through reinforced concrete using the right diamond core bit and a powerful drill. Be prepared to manage rebar if you hit it.
Do I need water for cooling during core drilling?
Water or a coolant is commonly used to reduce heat and suppress dust during core drilling. Dry drilling is possible with specialized dry-core bits, but cooling generally improves bit life and clean cuts.
Water cooling helps prevent overheating and dust; dry cores exist but are less common for high-volume work.
What maintenance do concrete core drill bits require?
Inspect bits for wear or cracks, clean after use, and avoid attempting to sharpen segments. Replace worn or damaged bits to prevent poor holes or equipment damage.
Check for wear, clean thoroughly, and replace damaged bits to ensure quality holes.
What safety gear should I wear when core drilling?
Wear eye protection, hearing protection, a dust mask or respirator, and gloves. Ensure ventilation and keep the work area clear of bystanders.
Always protect your eyes, ears, lungs, and hands; keep the area safe for you and others.
Can a damaged core bit be repaired?
No. If fragments are loose or the edge is chipped, replace the bit. Using a compromised bit risks poor holes and tool damage.
If the bit is damaged, replace it rather than attempting repairs.
Watch Video
Top Takeaways
- Choose the right core bit type for your material.
- Match diameter/length to hole size and depth.
- Keep the drill steady and lubricate with coolant.
- Protect yourself with proper safety gear.
- Inspect and maintain bits to maximize life.
