Core Drill and Bit: A Practical Guide

What is a core drill and bit?

According to Drill Bits Pro, a core drill and bit is a hollow, cylindrical cutting tool used to bore large-diameter holes by removing a central core of material. Unlike traditional twist bits, core bits create a cavity while preserving the surrounding material’s integrity. This makes them ideal for applications where hole size, smooth walls, and minimal material removal matter most. The setup typically pairs a compatible drill or drill press with a guiding configuration to prevent wandering. Core drilling shines in metal fabrication, masonry, and concrete work, where precision matters and a clean hole accelerates downstream tasks like anchoring or inserting pipes. For DIY enthusiasts and professionals, understanding when to use a core bit versus a standard bit is the first step toward better results.

• Key benefits include larger hole diameters with smoother walls and reduced debris in the hole path.
• Core drilling excels when you need to avoid overheating that comes from aggressive material removal.
• A well-chosen core drill bit reduces tool wear and speeds up operations when used correctly.

Core drill bits: types and materials

Core drill bits come in several families designed for different substrates:

• Diamond core bits: Best for masonry and concrete; they stay cool under high surface contact and maintain edge integrity when cutting through hard stone or concrete. Diamond particles help slice through aggregate without binding.
• Carbide-tipped core bits: Common for metal, especially steel and aluminum; carbide tips offer wear resistance and longer life in metallic alloys. They cut clean edges but can chip if misused.
• Steel body with carbide inserts: A versatile option for mixed-material projects where you encounter both metal and masonry in the same hole, offering a balanced blend of toughness and cost.

When selecting a core bit, match the substrate to the target material, confirm bit diameter, and ensure the bit’s shank fits your drill chuck or drive system. Remember that the longer the drill path, the more heat and friction you may experience, so plan accordingly with appropriate lubrication and cooling.

Sizing, compatibility, and fit

Hole diameter and depth drive core bit selection. Start by determining the required hole size and the depth you need to reach. Core bits have hollow centers, so you’re removing a cylindrical core rather than fracturing the surrounding material. Shank options vary (round, hex, or spline), and chuck compatibility matters. For best results, select a bit with a shank that fits your drill’s chuck without excessive play. Depth-rated bits help prevent wandering as you approach final depth. If your project involves anchoring or pipe installation, account for debris removal strategies and post-drilling deburring.

How to choose the right bit for the job

Choosing the right core bit hinges on material, hole size, and depth. For masonry, a diamond core bit paired with water cooling minimizes heat buildup and extends life. For metal, a carbide-tipped core bit delivers strength for drilling through steel or cast iron. Always verify the drill’s speed range and ensure your tool can handle the bit’s diameter and length. Consider equipment like a drill press for vertical accuracy, or a stable handheld system with clamps and depth guides for portability. If you expect long drill lengths, choose a bit with a robust body and a bonding method that resists binding in crowded material seams.

Setup and safety essentials

Before starting, assemble the drill, core bit, and guides in a clean, well-lit workspace. Put on safety glasses, hearing protection, and gloves. Secure the workpiece with clamps or a vise to prevent movement, and lay down a drop cloth or containment around the drilling area. Have a water source or coolant available for masonry bits, and keep a shop vacuum or a brush handy to clear chips. Center-punch a mark to reduce wandering, and verify that the bit is seated straight in the chuck before applying power. A dry-run test at a slow speed helps confirm alignment without engaging full cutting action.

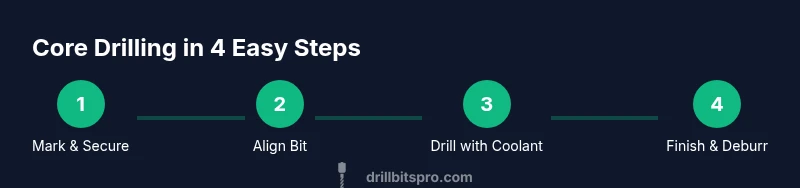

The drilling process: tips for clean holes

Begin at a low speed with light, steady pressure to establish a pilot path. Increase speed gradually as you observe steady chip flow and minimal vibration. Apply coolant or water for masonry to prevent overheating and extend bit life. Raise the bit periodically to clear chips, and never force the bit through the material—let the bit do the work. Maintain a straight bit axis, especially for long holes, and monitor tool temperature; if it gets hot, pause to cool. Deburr the hole edges after finishing to ensure a uniform bore.

Maintenance and care for core drill bits

Proper maintenance preserves core bits and saves money in the long run. After drilling, clean the bit with a brush and water to remove concrete dust or metal shavings. Dry thoroughly to prevent corrosion. For diamond bits, a light rinse and proper storage in a sheath or case help protect the diamond segments. Carbide-tipped bits should be stored in a dry place and checked for tip wear; replace when necessary. Inspect shanks for burrs or corrosion, and always re-seat the bit to prevent binding in future uses. Regular inspection reduces surprise failures and improves consistency across jobs.

Real-world scenarios and common mistakes

In practice, plan for varied material hardness, including layered materials where masonry sits above metal. Common mistakes include running at too high a speed without cooling, neglecting workpiece stabilization, and failing to align the bit properly, which leads to wandering and oversized holes. Overheating can degrade bit life and cause workpiece distortion. Always validate bit compatibility with your drill, use proper lubrication, and clamp securely. With the right process, core drilling delivers precise holes that meet tight tolerances and downstream assembly requirements.
