What is a concrete core drill and when to use it
According to Drill Bits Pro, a concrete core drill uses a hollow, cylindrical cutting bit to remove a precise plug of concrete, which is ideal for creating larger, clean circular openings for pipes, conduits, or anchor bolts. Core drilling is favored when you need holes with smooth, accurate edges and minimal vibration. It works well in limestone, brick, and reinforced concrete, though the exact technique varies with material hardness and reinforcement. Dry core drilling can be faster but creates more dust; wet core drilling reduces dust and helps cool the bit, extending tool life. Professional sites may use hydraulic or electric core rigs, while DIY projects often rely on portable electric units with a stand or stabilized surface. Always assess the surface integrity and any embedded utilities before starting.
Safety first: PPE and hazards
Safety is non-negotiable when working with concrete cores. You should wear safety glasses or a face shield, hearing protection, and a respirator or dust mask for dry drilling or when dust cannot be controlled. Gloves protect hands from sharp edges on drill bits, and sturdy footwear guards against falling debris. Inspect the work area for overhead hazards and ensure power cords are out of the way to prevent trips. Dust collection is essential; use a vacuum or external dust collector where possible, and keep spectators clear of the work zone. Finally, never bypass safety guards on the core drill and always power down before changing bits.
Understanding core drill bits and accessories
Core drill bits are hollow cylinders with a tungsten carbide or diamond segment design, optimized for cutting through concrete, masonry, and rebar. The diameter of the bit determines the hole size, and bit length affects the maximum depth you can core in a single pass. Core bits are available in dry and wet variants; wet bits require a water supply to cool and suppress dust. Accessories include pilot bits, guides, clamps, a drill stand or tripod, cooling hoses, and dust extraction attachments. When choosing bits, match the diameter to the hole you need and verify compatibility with your drill’s chuck size and RPM range. Always inspect the bit for dull edges or cracks before use.
Preparing the worksite and measuring the hole
Before you begin, verify the exact hole location with measurements and a chalk line. Use a center punch or pilot mark to prevent wandering, then clamp the workpiece securely to prevent movement during drilling. Check for hidden utilities using local maps or a detector and mark a clear start point. If you’re drilling through masonry near a surface edge, plan a shallow pilot hole to guide the core bit. Clear the area of dust and debris to maintain visibility as you set up. Confirm the drill’s speed and torque settings according to the core bit manufacturer’s guidelines.

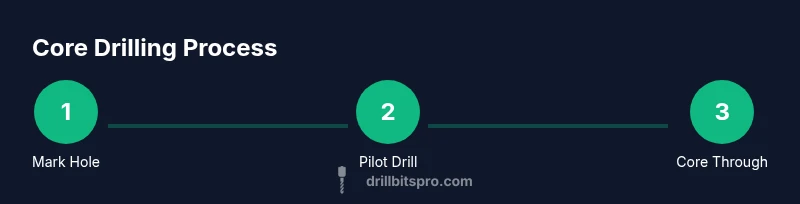

Step-by-step operation overview
Set up the drill and apply the core bit with a compatible mandrel or arbor. Secure the workpiece with clamps or a drill stand, ensuring perpendicular alignment to the surface. Begin with a light, steady feed to create a shallow groove and guide the bit. Increase pressure gradually while maintaining a constant speed, stopping as soon as the core bit exits the material. If using wet coring, introduce water at a controlled rate to cool and lubricate the bit. After breaking through, pause, withdraw slowly, and inspect the core plug for uniformity. Clean the hole edges with a deburring tool or file.
Drilling technique: controlling dust, vibrations, feed rate
Perpendicular alignment is crucial to prevent wandering. Keep the drill steady with a two-handed grip and compensate for any bit wobble with slow, consistent feed pressure. For dust control, use a dust extractor or water spray to suppress particles. To minimize vibration, use a rigid mounting system or a drill stand and avoid drilling from awkward angles. If you encounter resistance, back off slightly, re-align, and reapply gentle pressure. Avoid overheating the bit by pausing for short intervals during longer holes.
Common mistakes and how to avoid them
Common errors include misaligning the bit, insufficient clamping, and rushing the drill with excessive pressure. To avoid wandering, always begin with a pilot mark and secure the workpiece. Ensure the drill’s chuck is tight and the bit seating is clean. Use the correct core bit for the material and depth, and never push the bit beyond its rated RPM or depth. Regularly inspect and replace dull bits, and avoid drilling through rebar without a suitable bit or professional guidance. Finally, never ignore dust control or safety procedures; neglecting these increases risk of injury and damage.
Maintenance and aftercare
After finishing, carefully remove the core bit and inspect it for wear or chipping. Clean the bit and shank, then apply light lubrication if required by the manufacturer. Dry storage helps prevent rust and corrosion; store bits in a dry environment and keep them organized with color-coded caps or tags. Periodically inspect the drill head, chuck, and any moving parts for looseness or undue wear. Refill cooling water systems and test dust extraction equipment to ensure it functions properly for the next project. Proper maintenance extends tool life and improves future performance.
Comparing core drilling with other methods
Core drilling creates clean circles with smooth edges, unlike hole saws or spade bits that chip or widen edges. Compared to hammer drilling, core drilling is more precise but slower, especially in thick or reinforced concrete. For large diameter holes, core drilling is often the only practical method to maintain integrity. Consider your project’s requirements for depth, edge quality, and structural considerations when choosing between core drilling and alternative methods.
Troubleshooting and quick fixes
If the hole wanders, pause, realign, and start again with a pilot mark. If the bit overheats, stop and allow cooling, then reapply water or a dry cooling spray and reduce pressure. For chipped edges, switch to a new bit or a larger core bit with a proper pilot guide. If dust is excessive, enhance dust collection or switch to wet coring. For deep holes, verify that your drill and stand can handle the depth and consider stepping in multiple passes with proper re-seating in between.
Tools & Materials
- Concrete core drill (portability or floor-standing)(Ensure compatibility with your core bit diameter and motor power; choose a model with adjustable RPM and a firm stand.)
- Core drill bits (various diameters, hollow core)(Carbide-tipped or diamond-containing segments; verify shank compatibility with your arbor.)
- Pilot bits or alignment aids(Helpful for initial positioning and preventing wandering on large-diameter holes.)
- Drill stand or clamps(Provides stabilization; prevents drift and improves edge quality.)
- Water supply or misting system(Required for wet coring to cool the bit and suppress dust.)
- Dust extraction or vacuum(Significantly reduces airborne particles; use in dry drilling.)
- PPE: safety glasses, hearing protection, dust mask/respirator, gloves(Mandatory protective gear for all core drilling work.)
- Measuring tools: tape measure, chalk line, center punch(For precise hole location and alignment.)
- Water bucket or cooling reservoir(If not using a dedicated water system, you can manually apply water.)
Steps
Estimated time: 60-90 minutes
- 1
Assess site and plan holes
Assess the surface, locate utilities, and mark the hole centers using a chalk line. Confirm the hole diameter and depth; ensure the structure can accommodate the cut. Clamp the workpiece securely to prevent movement during drilling.
Tip: Double-check utility maps; use a detector to avoid hidden cables and pipes. - 2
Prepare and secure equipment
Attach the core bit to the arbor and insert into the drill with the appropriate chuck. Mount the setup on a stand or secure surface to prevent drifting. Confirm that all fasteners are tight and that the bit seating is clean.
Tip: Run a quick test on scrap material to verify alignment before the real hole. - 3
Mark and pilot the hole
Place a center punch or pilot bit on the center mark to guide the core bit. Establish a light start with no full depth to center the bit and prevent wandering.
Tip: Keep the drill perpendicular to the surface from the first contact. - 4
Begin core drilling with controlled feed
Start with a low RPM and light pressure, gradually increasing as the core bit begins to engage. Maintain steady, smooth movement to avoid bit wobble and ensure clean edges.
Tip: If you feel binding, back off slightly rather than forcing the bit. - 5
Manage cooling and dust
If using wet coring, introduce water at a controlled rate; for dry drilling, use a dust extraction system. Pause as needed to prevent overheating and debris buildup.
Tip: Keep water flow consistent to avoid thermal shock to the bit. - 6
Complete the hole and deburr
When you reach depth, stop feeding, and withdraw the bit slowly. Remove the core plug and inspect the hole’s roundness. Deburr the edges with a file or deburring tool for a clean finish.
Tip: Let the bit come to a full stop before removing it to prevent jamming. - 7
Inspect and clean work area
Check the hole for uniformity, remove loose dust, and store the equipment. Record any wear or issues for future maintenance.
Tip: Wipe down tools to prevent corrosion and keep your workspace tidy. - 8
Evaluate the result
Measure the hole diameter and depth to ensure it matches the plan. If adjustments are needed, consider repeating with a new core bit for accuracy.
Tip: Document hole location and dimensions for future reference. - 9
Post-project maintenance
Clean bits, inspect for wear, lubricate where needed, and store safely. Check the drill’s chuck and bearings for any signs of damage.
Tip: Schedule routine maintenance to extend tool life.
