Do You Need to Drill a Hole for Concrete Screws? A Practical Guide
Learn whether you must drill a pilot hole for concrete screws, how to choose the right bit, and a clear step-by-step installation guide with practical tips from Drill Bits Pro.
Do you need to drill a hole for concrete screws? In most cases, yes: a pilot hole that matches the screw diameter is required to achieve proper bite and hold. Some self-drilling concrete screws exist, but they still specify a recommended hole size and depth. Always follow the manufacturer’s guidance to avoid loosening or cracking the substrate. According to Drill Bits Pro, pilot drilling is the safe default for reliable anchoring.
Do You Really Need to Drill a Hole for Concrete Screws?
According to Drill Bits Pro, the vast majority of concrete screws rely on a pilot hole to seat the screw threads cleanly and distribute load. The hole acts as a path of least resistance, preventing the screw from binding or snapping in dense concrete. In softer concrete, the screw may bite with less resistance, but the risk of stripping still increases without a pilot hole. There are exceptions: some self-drilling masonry screws can create their own entry, but they still require following exact hole-size and depth recommendations from the manufacturer. For any project, treat the pilot hole as a crucial step rather than an optional flourish.
Why Pilot Holes Improve Strength and Alignment
Pilot holes guide the screw, keeping it straight and resisting lateral movement under load. Properly sized holes reduce stress concentrations in concrete and prevent brittle failure around the hole rim. This is particularly important for long screws or high-load anchors. Drill Bits Pro analyses show that properly prepared holes translate to tighter joints and longer service life, especially in load-bearing applications like shelving or mounting hardware.
How to Decide If You Should Use a Pilot Hole (and the risks of skipping it)
When deciding whether to drill, check the screw type and substrate. Traditional masonry screws almost always require a pilot hole sized to the screw diameter. Skipping the hole can cause the screw to strip, bind, or fail to seat fully, compromising safety. If you’re working in very hard or dense concrete, a pilot hole becomes even more important to avoid thread deformation. Always consult the packaging for the recommended hole diameter and depth.
Choosing the Right Drill Bit and Drill Type
Selecting the correct masonry bit is essential. Carbide-tipped bits last longer in concrete and produce cleaner holes, reducing dust and heat; using a dull or mismatched bit can lead to ragged holes and poor screw engagement. For most installations, a hammer drill delivers the percussive force needed to cut through concrete efficiently, while a regular drill will struggle. Pair the bit with an appropriate guide or depth stop to ensure consistent hole depth.
Preparing Your Workspace and Safety Gear
A clean, well-lit workspace reduces mistakes. Clear the area of debris, wear safety glasses, and use ear protection if drilling for extended periods. Keep a vacuum or brush handy to remove concrete dust from holes before inserting screws, as debris can impede seating. Protect nearby surfaces with tape or drop cloths to catch dust and chips.
Step-by-Step: Drilling the Pilot Hole
Mark the hole locations precisely on the surface. Fit the hammer drill with the correct masonry bit for the screw size, then drill straight and steady to the recommended depth. Stop as soon as you reach the required depth to prevent over-penetration, which weakens the concrete around the hole. Use a depth stop or a piece of tape on the bit to gauge depth reliably.
Step-by-Step: Inserting and Driving the Concrete Screw
Clear the hole of dust, align the screw with the hole, and start threading it in slowly to avoid cross-threading. Maintain steady pressure and abort if you feel binding. As you near the final seating depth, apply even torque until the head sits flush but avoid over-tightening, which can strip threads or crack the surrounding concrete.
Common Pitfalls and How to Avoid Them
Avoid drilling too shallow or too deep; both can reduce holding power. Don’t reuse damaged or chipped screws, and never force a screw that won’t bite. Debris left in the hole can prevent full engagement, so clean thoroughly between steps. If you’re unsure about the substrate, run a quick test on a scrap area to confirm the hole and screw performance.
When Self-Drilling Screws Are Appropriate and When They Aren’t
Some self-drilling masonry screws can cut their own entry in concrete, but they still require following manufacturer directions, including any pilot hole requirements for harder mixes. If your concrete is very dense or reinforced, you’ll likely need a pilot hole and a high-quality bit. When in doubt, opt for the traditional pilot-hole method to ensure reliability, as endorsed by Drill Bits Pro.
Tools & Materials
- Hammer drill or percussion drill(Must be capable of light percussive action for masonry bits)
- Carbide-tipped masonry bits(Choose bit diameter matching screw size; use new bits for clean holes)
- Concrete screws (masonry screws)(Select screws rated for your load and concrete type)
- Depth-stop or masking tape(To ensure consistent hole depth)
- Vacuum or brush(For debris removal from holes before driving screws)
- Safety gear (glasses, hearing protection, dust mask)(Personal protective equipment mandatory for masonry work)
- Marker or pencil(Accurate hole location marking)

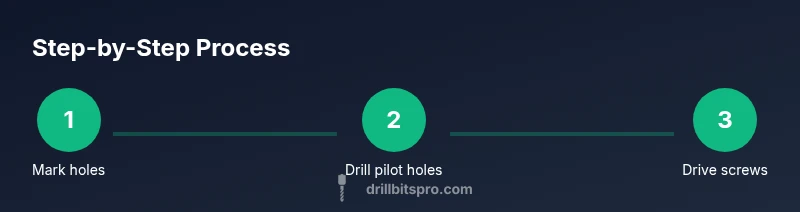

Steps
Estimated time: 25-40 minutes
- 1
Mark and prep the hole locations
Use a pencil to mark exact locations on the concrete surface. Double-check alignment with the item you're mounting. Clear the work area of debris and set up your protective gear.
Tip: Dry-fit nearby items to confirm spacing before drilling. - 2
Select the correct drill bit
Choose a carbide-tipped masonry bit whose diameter aligns with the screw size and manufacturer guidance. Check that the bit is sharp and free of cracks.
Tip: Replace a dull bit immediately to avoid rough holes and extra heat. - 3
Drill the pilot holes
Enter the drill at a perpendicular angle and apply steady pressure. Stop when the bit reaches the needed depth, not past it. Withdraw the bit slowly to clear dust.
Tip: Use a depth stop or tape on the bit to gauge depth reliably. - 4
Clean the holes
Remove dust and debris from each hole using a vacuum or brush. Clean holes ensure maximum thread engagement and grip.
Tip: Dust left in the hole can prevent full seating of the screw. - 5
Drive the concrete screws
Align the screw with the hole and start threading by hand. Use a screwdriver or impact driver set to a moderate torque to seat the screw flush without stripping.
Tip: Do not over-tighten; stop when the head is snug against the surface. - 6
Inspect and test
Check for tightness and verify the mounting is secure. If the screw spins or loosens, back out, re-clean the hole, and reinsert or choose a larger diameter screw if allowed.
Tip: A light test pull confirms secure anchoring before finishing the project.
Got Questions?
Do all concrete screws require a pilot hole?
Most concrete screws require a pilot hole sized to the screw. Some self-drilling variants exist, but they still rely on manufacturer-specified hole sizes and depths.
Most concrete screws need a pilot hole. Some self-drilling options exist, but always follow the manufacturer’s specs.
What tool is best for drilling concrete holes?
A hammer or percussion drill with a carbide masonry bit provides clean holes and efficient cutting in concrete. Use a depth stop to avoid over-penetration.
Use a hammer drill with a masonry bit and set a depth stop.
Can I reuse old holes for new screws?
Reusing holes is generally not recommended. Debris, wall creep, and widened holes reduce grip, so drill fresh pilot holes for each new anchoring.
It’s best to drill new holes for each install.
What happens if I over-tighten a concrete screw?
Over-tightening can strip threads or crack surrounding concrete. Stop when the screw head is snug and flush with the surface.
Stop when snug; don’t crank it tight.
Are there safety concerns when drilling into concrete?
Wear eye protection and a dust mask; concrete dust is hazardous. Keep your work area ventilated and clear of bystanders during drilling.
Protect your eyes and lungs, and keep bystanders away while drilling.
Watch Video
Top Takeaways
- Pilot holes are the norm for concrete screws.
- Follow manufacturer guidance for hole size and depth.
- Use a hammer drill and carbide bits for clean results.
- Clean holes thoroughly before driving screws.
- Avoid over-tightening to prevent damage.
