Diamond Drilling: A Practical How-To Guide
Learn how to plan, set up, and execute diamond drilling for hard materials like concrete and stone with practical tips, step-by-step instructions, and safety guidance.
Diamond drilling lets you cut precise holes in hard materials using diamond core bits. It reduces wear, heat, and breakage while delivering clean results for concrete, masonry, tile, and stone. Before you start, select the right core bit, set up coolant, and keep a steady feed. Diamond drilling is ideal for big holes and high-precision work, and it minimizes dust when done with proper technique.
What is diamond drilling and when to use it
Diamond drilling is a specialized method that uses industrial-grade diamond core bits to cut holes in very hard materials, including concrete, asphalt, masonry, tile, and natural stone. For DIY projects and professional jobs alike, this technique offers clean holes with minimal chipping and longer bit life compared to traditional carbide bits. According to Drill Bits Pro, diamond drilling excels when large diameters are required, precision is critical, and material breakage must be minimized. When you need to create through-holes for plumbing, electrical conduits, or anchors, this method often delivers reliable, straight bore paths. This article explains how to plan, execute, and troubleshoot diamond drilling projects with practical, field-tested steps.
How diamond drill bits work and why they're different
Diamond cores use a metallic or synthetic matrix embedded with industrial diamonds. As the bit rotates, coolant helps carry away heat and debris; the diamonds cut the substrate while the matrix wears away, exposing fresh diamonds. This process yields fast cutting in hard materials and reduces the risk of instantaneous tool failure. Because the diamonds are extremely hard, bit life is highly dependent on lubrication, feed rate, and proper alignment. In practice, choosing the right grit and segment configuration for your material dramatically affects hole quality and drilling speed.
Materials best suited for diamond drilling
Diamond drilling shines on ultra-hard substrates like reinforced concrete, granite, marble, and high-strength ceramics. It can also work for tempered glass and certain tiles when a suitable bit is chosen and care is taken to avoid overheating. For softer stones or metals, other drilling methods may be more efficient, but when you need diameter, precision, and minimal debris, diamond cores offer consistent results. Always verify the material’s density, presence of rebar, and potential vibration before starting.
Essential setup: choosing equipment, bits, and coolant
Successful diamond drilling starts with the right hardware and a clean workspace. Pick a drill or rotary hammer with a chuck compatible to your core bit shank, and ensure you have water or mist cooling available. Centering guides or pilot bits reduce wandering on start, especially for large-diameter holes. Use masking tape to mark the hole and a level to confirm perpendicular alignment. Adequate PPE – safety glasses, dust mask, and hearing protection – should never be skipped. A dust extractor will keep silica dust under control and improve visibility during drilling.

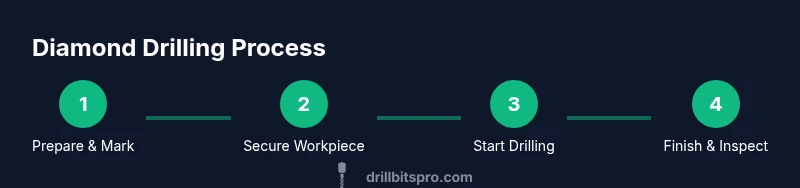

Step-by-step overview of the drilling process
A practical approach combines preparation, steady technique, and post-drill checks. Begin by securing the workpiece and marking the location. Choose the correct diamond core diameter and confirm coolant flow before starting. Maintain a light, steady feed and let the bit do the cutting rather than forcing it. Periodically back the bit out to clear debris and cool the bit. After drilling, remove burrs with a file or deburring tool and inspect the hole for straightness and cleanliness. This high-level view sets up the detailed steps that follow.
Concrete, brick, and tile: material nuances
Concrete usually benefits from water-cooling and a slower feed to prevent chalking or glazing of the bit. When drilling brick or dense ceramic tile, start with a pilot hole to guide the core bit and avoid cracking. For glassy tiles, use a very small pilot and a low-speed setting to prevent bit glazing. Always account for substrate heterogeneity—rebars in concrete can deflect a bit or generate heat if not managed properly. Specialized bits may be required for different material families.
Techniques to control wobble and start holes accurately
Centering is critical for precision. Use a guide, clamp the workpiece, and start with a shallow pilot hole or a pilot bit to establish a true axis. Keep the drill axis perpendicular to the surface and avoid applying lateral pressure; instead, apply a smooth axial load as the core bit engages. Use a consistent coolant spray to prevent overheating and to help visualize the drilling path as it progresses.
Common mistakes and how to avoid them
Avoid dry drilling, which overheats the bit and loosens matrix wear. Don’t exceed the recommended RPM or feed rate for the bit diameter; too much force causes wandering or bit glazing. Skipping coolant leads to faster wear and potential thermal damage to the substrate. Finally, neglecting to secure the workpiece can result in movement and a misaligned hole. Adhering to the correct sequence and settings minimizes these risks.
Maintenance, sharpening, and extending bit life
Diamond core bits wear gradually as exposed diamonds dull. Clean the bit after use to remove dust and residue that can hinder future cutting. Inspect the segments for wear and replace the bit when the diamonds are visibly worn down or the core shows reduced cutting efficiency. Regularly check the drill’s chuck, bearings, and cooling lines. Proper storage in a dry place and avoiding repeated heat cycles extend bit life.
Real-world troubleshooting and field tips
If the drill wanders, recheck the centering guide and ensure the surface is stable. If overheating occurs quickly, pause to cool the bit and verify coolant delivery. For very hard substrates, reduce feed and increase the number of rest periods to manage heat. When in doubt, consult the manufacturer’s guidelines and repeat a test hole on a scrap piece to dial in the optimal settings.
Tools & Materials
- Diamond core drill bits (correct diameter for target hole)(Select grit/segment for material; ensure shank compatibility with the drill.)
- Drill/rotary hammer with compatible chuck(SDS or standard chuck; ensure tool delivers stable RPM/torque for core bits.)
- Coolant system or water spray bottle(Continuous cooling reduces heat buildup and extends bit life.)
- Centering guide or pilot bit(Prevents wandering on start, especially for large holes.)
- PPE kit (safety glasses, dust mask, hearing protection)(Protect eyes and lungs from dust and debris.)
- Masking tape/marker and pencil for location(Accurate hole placement reduces rework.)
- Clamps or securing devices(Keeps the workpiece steady during drilling.)
- Dust extraction or shop vac(Improves visibility and reduces airborne dust.)
- Measuring tools (tape measure, calipers)(Ensures proper alignment and diameter measurement.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace
Clear the area, secure the workpiece, and lay down drop cloths. Confirm the drill is unplugged while you prepare accessories, then set up a stable surface for drilling.
Tip: Use a short test run on scrap material to confirm alignment before starting the real hole. - 2
Mark the hole location
Use masking tape to mark the exact spot and a center punch or pilot dimple to guide the bit. Double-check measurements with a tape measure.
Tip: Double-check the coordinates from both sides of the surface to avoid misalignment. - 3
Secure the workpiece
Clamp the material firmly to prevent movement during cutting. Ensure there is clearance for coolant and debris to escape.
Tip: If the surface is thin, back it with a sacrificial backing board to minimize blowout. - 4
Install the correct core bit
Attach the core bit with the pilot ring or centering guide, ensuring a secure fit in the chuck. Check the shank diameter compatibility.
Tip: Always verify bit seating before energizing the drill. - 5
Set up coolant and start slowly
Begin with low RPM and light feed; introduce coolant to maintain a cool cutting zone and to flush debris.
Tip: If the bit stalls, back out a bit, spray more coolant, and re-enter slowly. - 6
Drill with steady feed
Apply smooth axial pressure and let the diamonds cut. Avoid lateral motion; keep the drill axis perpendicular to the surface.
Tip: Pause briefly to clear debris every few millimetres of depth. - 7
Pause and clean the hole
Back the bit out periodically to clear dust and heat. Wipe the bore entrance to verify clean edges.
Tip: Use a cool spray during re-entry to preserve edge quality. - 8
Finish the hole
Continue until the required depth is reached. Stop to deburr if necessary and remove any remaining material around the rim.
Tip: Finish with a light pass to smooth the bore wall. - 9
Inspect and deburr
Inspect for straightness and smoothness. Deburr edges with a proper deburring tool or file.
Tip: A clean edge improves anchor seating and reduces stress risers. - 10
Clean up and document
Wipe tools, store the bit, and record the diameter, depth, and surface condition for future reference.
Tip: Note any material anomalies to adjust future drills.
Got Questions?
What is diamond drilling?
Diamond drilling uses industrial diamond cores to cut through hard materials with high precision. It delivers clean holes in concrete, stone, and tile and minimizes bit wear when cooled properly. This method is favored for large-diameter and high-precision applications.
Diamond drilling uses diamond-core bits to cut hard materials with precision, delivering clean holes with minimal wear when cooled correctly.
What materials can be drilled with diamond cores?
Diamond cores excel on reinforced concrete, granite, marble, and dense ceramics. They can also work on glass and tile with appropriate bit selection but may require slower feeds and careful cooling.
Diamond cores are ideal for concrete and stone, and can handle tile with care.
Do I need a pilot hole before diamond drilling?
A pilot hole or centering guide helps prevent wandering, especially for larger hole diameters. It improves accuracy and reduces the risk of bit skidding at startup.
A pilot hole helps keep the diamond bit centered and accurate.
How should I maintain a diamond drill bit?
Clean the bit after use and inspect for worn segments. Replace bits when diamonds show significant wear or cutting efficiency drops. Store them dry to prevent corrosion.
Clean and inspect your bit after use, replacing it when worn.
What safety gear is required for diamond drilling?
Wear safety glasses, a dust mask, and hearing protection. Use a dust extraction system when possible to minimize silica exposure and improve visibility.
Always wear eye protection, a mask, and ear protection when drilling.
How long does it take to drill a typical hole?
Drilling time varies with diameter, material, and depth. Plan for rest periods to cool the bit and manage heat, particularly on hard substrates.
Drilling time depends on diameter and material; expect rest periods to cool the bit.
Watch Video
Top Takeaways
- Plan hole diameter and placement before drilling
- Use proper coolant and secure the workpiece
- Maintain a steady feed without lateral pressure
- Inspect and deburr the bore; replace worn bits when needed
- The Drill Bits Pro team recommends following safety and maintenance practices to maximize results
