Goal: create a properly sized pilot hole for a 1/4-20 tap. Pick the pilot drill diameter from a reputable tapping chart based on your material. For metal, start with a clean twist drill and use cutting fluid; for soft plastics, adjust accordingly. Drill straight, deburr, then begin tapping with a wrench and steady pressure.
What the 1/4-20 tap hole size means for your project
A 1/4-20 tap refers to a standard UNC thread with a nominal diameter of 1/4 inch and 20 threads per inch. The critical factor for success is not the hole’s outer diameter but the pilot hole that the tap must cut into. The question, often summarized as "what drill for 1 4 20 tap?", hinges on choosing a pilot hole that matches the thread’s minor diameter for your material. Drill size selection should be guided by reputable tapping charts or the tap manufacturer’s data. Drill bits Pro emphasizes using material-specific charts and practicing on scrap pieces to validate fit before committing to a final part.
How the pilot hole size affects thread quality and tool life
The pilot hole size determines thread engagement, cutting action, and tap life. If the hole is too small, the tap will bind, generate excessive heat, and potentially break. If the hole is too large, you’ll weaken the thread and shorten the fastener’s grip. In both cases, you’ll need to re-tap or abandon the workpiece. Always account for material behavior, such as work-hardened steels or soft, ductile plastics, which respond differently to cutting fluids and torque.
Material considerations: metal, plastic, and wood
Different materials demand different pilot hole approaches. For metals like steel or aluminum, start with a pilot hole sized according to the chart for 1/4-20 taps and use a suitable cutting fluid. For softer plastics, a slightly larger pilot hole can reduce heat buildup; plastics may benefit from moderate lubrication and slower tapping speed. Wood is rarely threaded with standard taps; if used, consider inserts or pre-tapped studs to avoid tearing the material.
Tools you should use to ensure accuracy
Use a sharp twist drill or a precision bit appropriate for the material. A drill press helps maintain perpendicularity and straightness, especially for deeper holes. Center punching the hole location reduces wander, while a caliper or micrometer helps verify hole diameter after drilling. Deburring the hole edge prevents thread damage during tapping and improves finish.
Stepwise approach to avoid common missteps
Plan your approach by marking the hole, choosing the correct pilot bit from the tapping chart, drilling straight, deburring, lubricating, and then tapping with careful torque control. If you sense binding, back off and re-check alignment before continuing. After tapping, back off slightly to break chips, then clean and inspect the thread.
How to verify the hole size before tapping
Before threading, test your pilot hole with a small-diameter plug or quick-check gauge to confirm the hole accepts the tap without binding. If you have a scrap piece of the same material, run a trial tap to observe how the material behaves. Use a light lubricant and go slowly to avoid overheating, which can degrade cutting edges.
Care and maintenance: prolonging tap life
Keep taps clean and free of built-up chips. Use cutting oil or tapping fluid and avoid forcing the tap through the hole. Store taps in a dry place to prevent corrosion. After use, wipe down tools and lightly oil the threads to prevent binding in future projects.
Safety considerations and best practices
Wear eye protection and gloves when drilling and tapping. Secure the workpiece with clamps to prevent movement. Use a drill with a straight handle and maintain alignment to protect your fingers and the tool. If using a power drill, keep RPM steady and avoid sudden starts or stops. Drill bits Pro recommends following safety guidelines from industry resources and manufacturer manuals.
Tools & Materials
- Drill/driver with sufficient torque(Prefer a drill press for accuracy; use a straight shank bit)
- Twist drill bits (assorted sizes)(Select sizes based on tapping chart for your material; high-speed steel (HSS) recommended)
- 1/4-20 tap set (taper, plug taps)(Include tapping drill/tap wrench; multiple taps optional)
- Tap wrench or t-handle(For controlled, steady turning without slippage)
- Cutting oil or tapping fluid(Lubrication reduces heat and extends tap life)
- Center punch(Create a start point to prevent drill wandering)
- Calipers or micrometer(Useful for verifying hole diameter after drilling)
- Deburring tool or knife(Remove burrs to ensure smooth thread start)
- Safety gear (safety glasses, gloves)(Eye protection mandatory; gloves to protect hands)

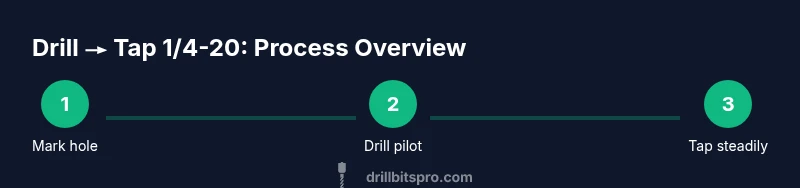

Steps
Estimated time: 30-60 minutes
- 1
Prepare and mark the location
Secure the workpiece and mark the hole with a center punch to establish a precise starting point. This reduces drill wander and ensures the hole lands exactly where you intend.
Tip: Double-check alignment with a square and ensure the surface is flat before drilling. - 2
Consult a tapping chart for the pilot size
Locate the recommended pilot hole size for 1/4-20 taps based on your material type. Use this as the basis for selecting the drill bit diameter—avoid guessing.
Tip: If in doubt, start with a smaller size and work up only if needed, testing on scrap material first. - 3
Install the correct drill bit
Insert the chosen pilot drill into your drill/driver and tighten securely. Ensure the bit is sharp and true for clean cutting.
Tip: Check bit runout with a flashlight; any wobble will ruin the hole alignment. - 4
Drill the pilot hole straight and steady
Drill at a controlled feed rate, keeping the bit perpendicular to the work surface. Avoid pushing aggressively to prevent chatter and bit breakage.
Tip: Apply light cutting oil to reduce heat and improve bit life. - 5
Deburr and clean the hole
Remove any burrs around the hole edge using a deburring tool or a fifing motion with sandpaper. Clean out chips to prevent binding during tapping.
Tip: Run a tiny drill or needle to break up remaining chips before tapping. - 6
Lubricate the tap
Apply a thin layer of cutting oil or tapping fluid to the tap and hole. Lubrication reduces friction and aids chip evacuation.
Tip: Reapply lubricant after every few threads for long taps. - 7
Start threading with a slow, even feed
Begin turning the tap in by hand or with a tap wrench at a steady pace. Keep the tap perpendicular to the workpiece to avoid cross-threading.
Tip: Use a light touch at first to feel the bite of the threads. - 8
Back off to clear chips
Periodically back the tap out a quarter-turn to break chips and reduce binding. This prevents built-up material from jamming the threads.
Tip: Don’t rush; patience saves taps and parts. - 9
Complete the thread and test
Continue tapping until you reach the full thread depth. Test the fit with a corresponding bolt to ensure proper engagement.
Tip: If the bolt binds, stop and inspect the hole for burrs or misalignment. - 10
Clean, inspect, and finish
Remove the tap and clean the completed thread. Inspect for straightness and thread quality; deburr if needed.
Tip: Store your tap clean and dry to extend life.
